CONTROLS AND CONNECTORS
CABLE CONNECTIONS:
Turn off your computer before performing the procedure below.
1. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the
other end to the computer’s D-Sub port.
2. Connect one end of a 24-pin DVI-D to the back of the monitor. Connect the other end to
the computer's DVI-D port.
note: This monitor is capable of operating in 'Dual input' mode. Only one of either the
15-pin D-sub or the 24-pin DVI-D connections is needed for normal operation.
3. Connect the audio cable between the monitor's audio input and the PC's audio output
(green port). This connection is optional and not required for normal operation of the
monitor.
4. Plug one end of the AC-power cord into the LCD monitor's AC input socket and the other
into a surge protection power strip or device.
5. Turn on your monitor and computer.
1.
2.
DVI-D Input
3.
Audio Input
4.
Power AC Input
10

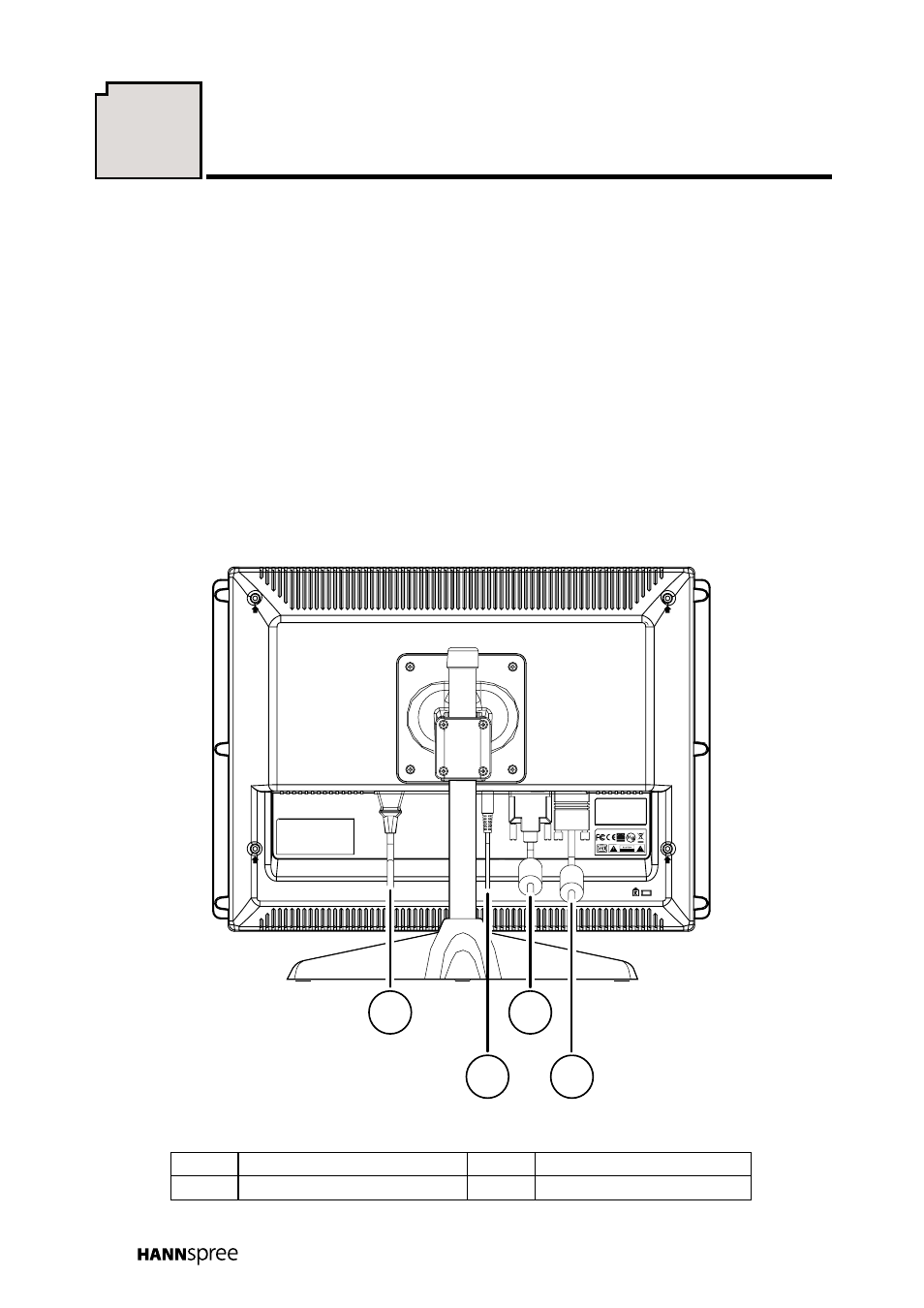

Figure.2. Connecting Cables
1
3
4
2
D-Sub Input
-or-
