Component identification 8

Item

Description

3

Processor socket 2 (populated)

4

Server A system board serial number label

5

System battery

6

Processor socket 1 (populated)

7

Signal connector

8

Enclosure connector

9

Power connector

10

System maintenance switch

11

DIMM slots (processor 1)

12

Internal USB connector

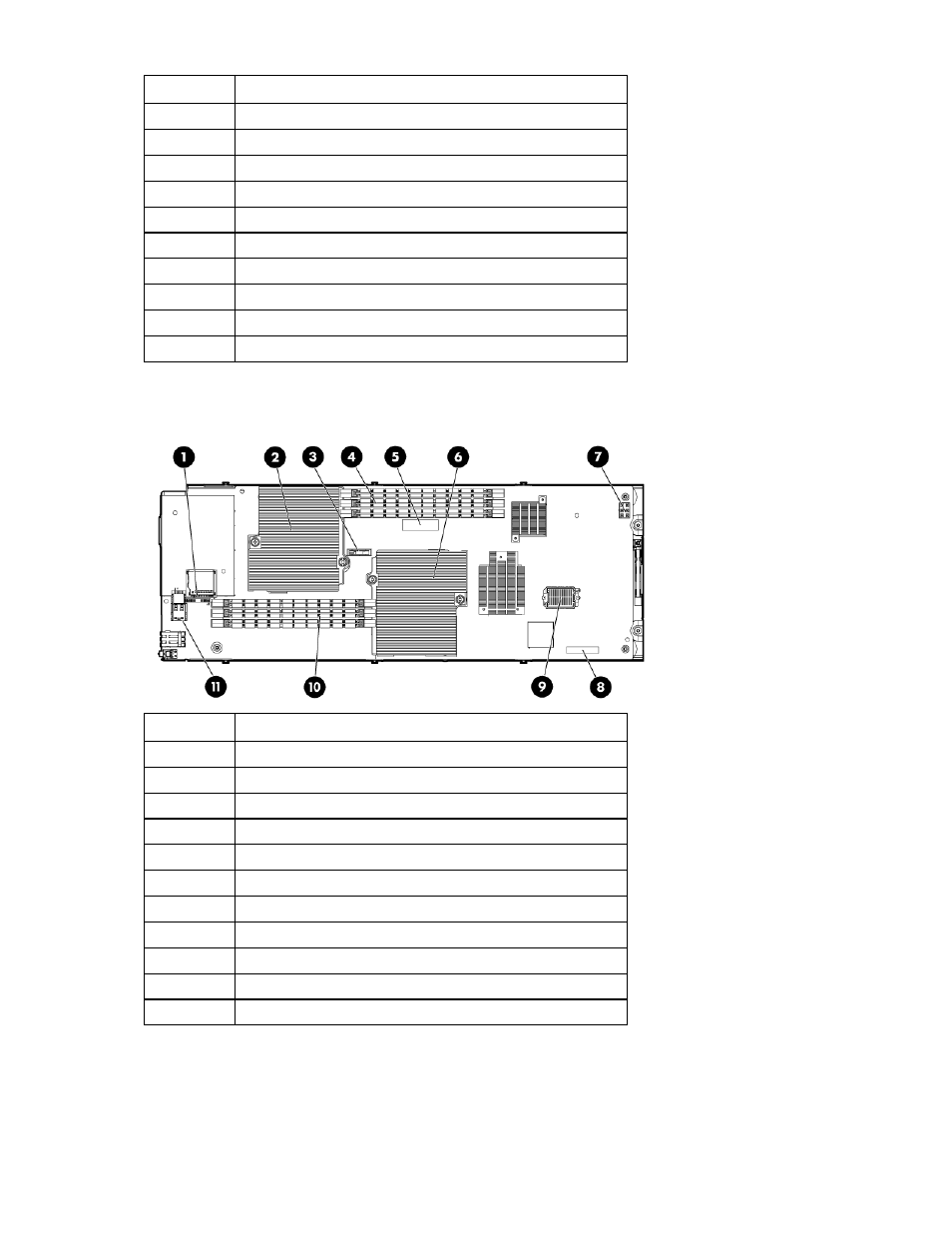

Server B system board components

Item

Description

1

Hard drive connector

2

Processor socket 1 (populated)

3

System battery

4

DIMM slots (processor 2)

5

Server B system board serial number label

6

Processor socket 2 (populated)

7

Power connector

8

System maintenance switch

9

Signal connector

10

DIMM slots (processor 1)

11

Internal USB connector

DIMM slot numbering

For installation guidelines and population order, see "Memory options (on page

22

)."
