HP BL2X220C User Manual
Page 20
Hardware options installation 20
o

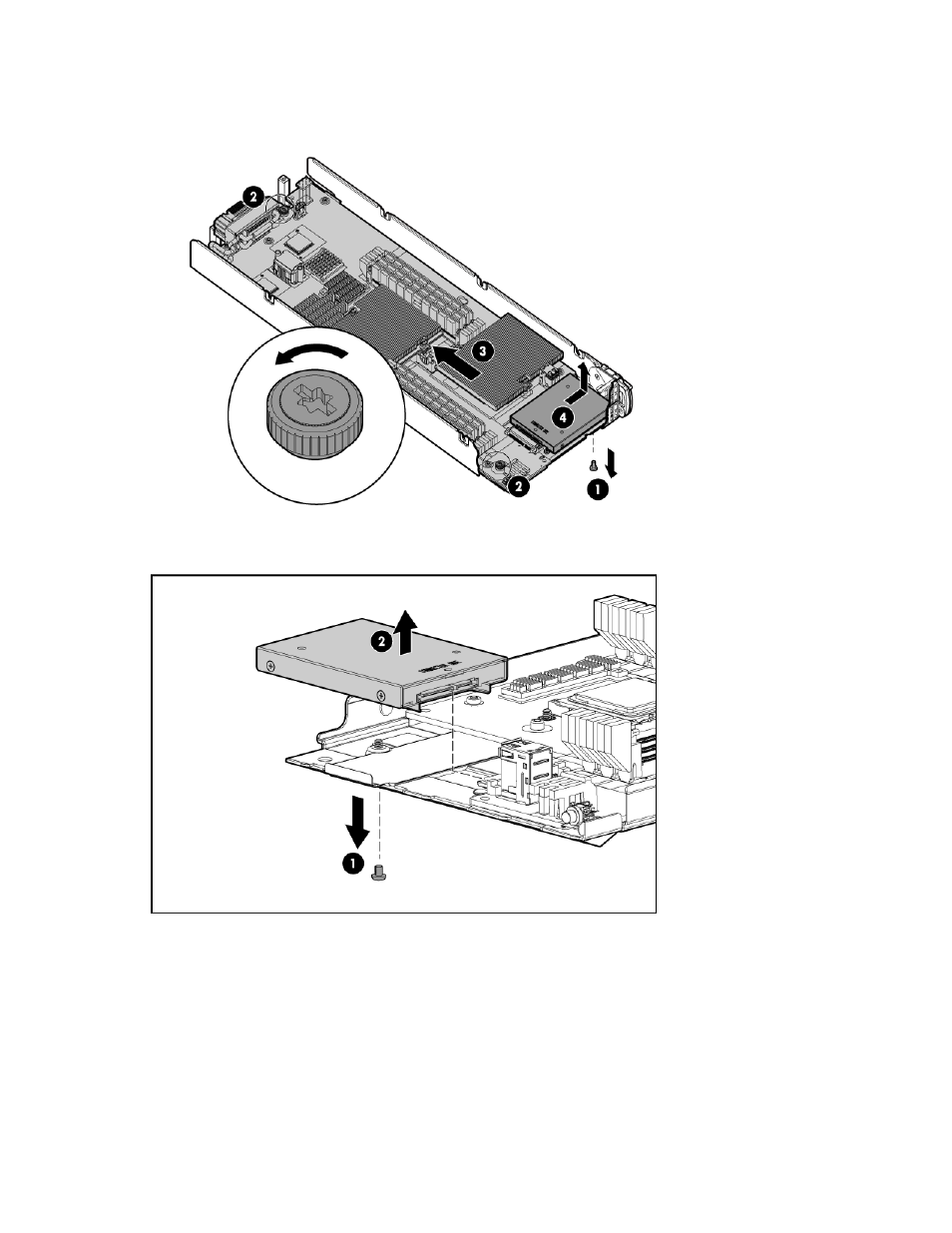

To remove the hard drive carrier from the server A assembly, remove the T-10 hard drive carrier
screw and loosen the two system board thumbscrews. Then, slide the system board toward the
rear of the enclosure and remove the hard drive carrier.
o
To remove the hard drive carrier from the server B assembly, remove the T-10 hard drive carrier
screw, and then remove the hard drive carrier.
