Super-Magnum Coal Stoker Stove
Do Not Burn Wet Coal! 3-90-02702R6_03/13 28
8. Chimney Connector
• Frequency: As necessary / Yearly
• By: Qualified Service Technician / User
At the end of the burn season, brush and clean all sections
of chimney connector pipe. Some owners remove the
chimney connector for the off season. Any coal ashes left
in the connector pipe will actually draw moisture which
promotes rust. This is why it is very important to clean all
ashes at the end of the heating season.
9. Chimney
• Frequency: As necessary / Yearly
• By: Qualified Service Technician / Chimney Sweep
The entire chimney should be professionally cleaned at
least once yearly. It is best to have this done at the end of
the heating season to be sure all ash is removed. You'll also
want to inspect the condition of the chimney prior to using
the appliance, to be sure there are no bird nests or the like.
D. Motors and Components
1. Feed Motor
Requires no lubrication.
Keep the motor windings free of dust. Can be wiped clean
or vacuumed.

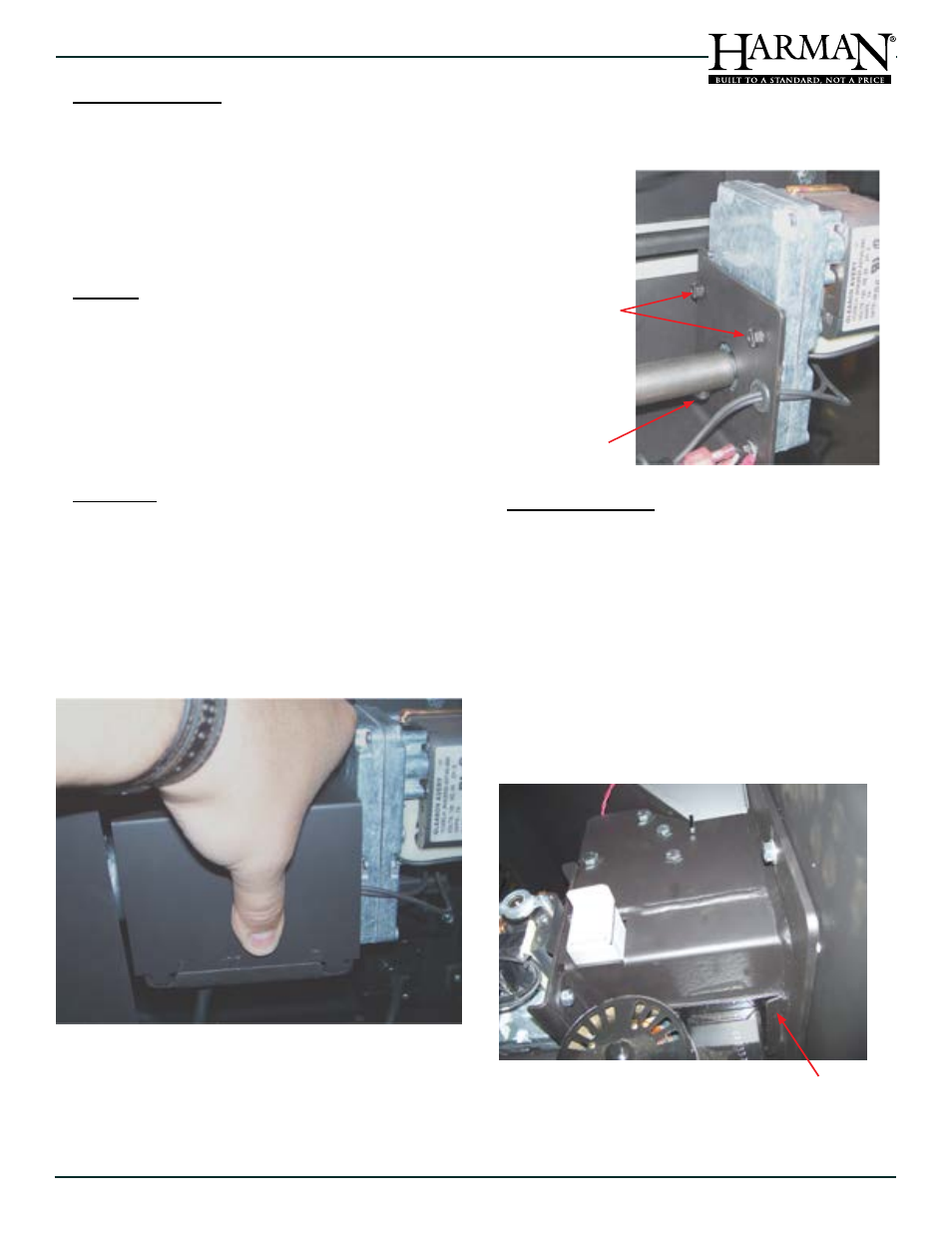

To remove feed motor;
• Remove rear access panel and open left rear door.
• Remove feed shaft shield by pushing with thumb where
shown, and lift up while pulling out.
Set Screw
Mounting Screws
2. Combustion Blower
Requires no lubrication.
Keep the motor windings and intake screen free of dust and
pet hair. Can be wiped clean or vacuumed.
To remove combustion blower;
• Open left rear door.
• Remove wire-tie from blower power cord.
• Slide the blower mounting flange out of the bracket
toward the left side.
NOTICE: When re-installing blower, be sure it is slid
completely into the mounting bracket. There is a stop on the
right side of the bracket to ensure proper positioning.
Blower Mounting Bracket
• Locate the Allen-head set screw on the feed motor shaft
and loosen it.
• Remove the 4 motor mounting screws and pull the motor
out through the left, rear door.
