Super-Magnum Coal Stoker Stove
Do Not Burn Wet Coal! 3-90-02702R6_03/13

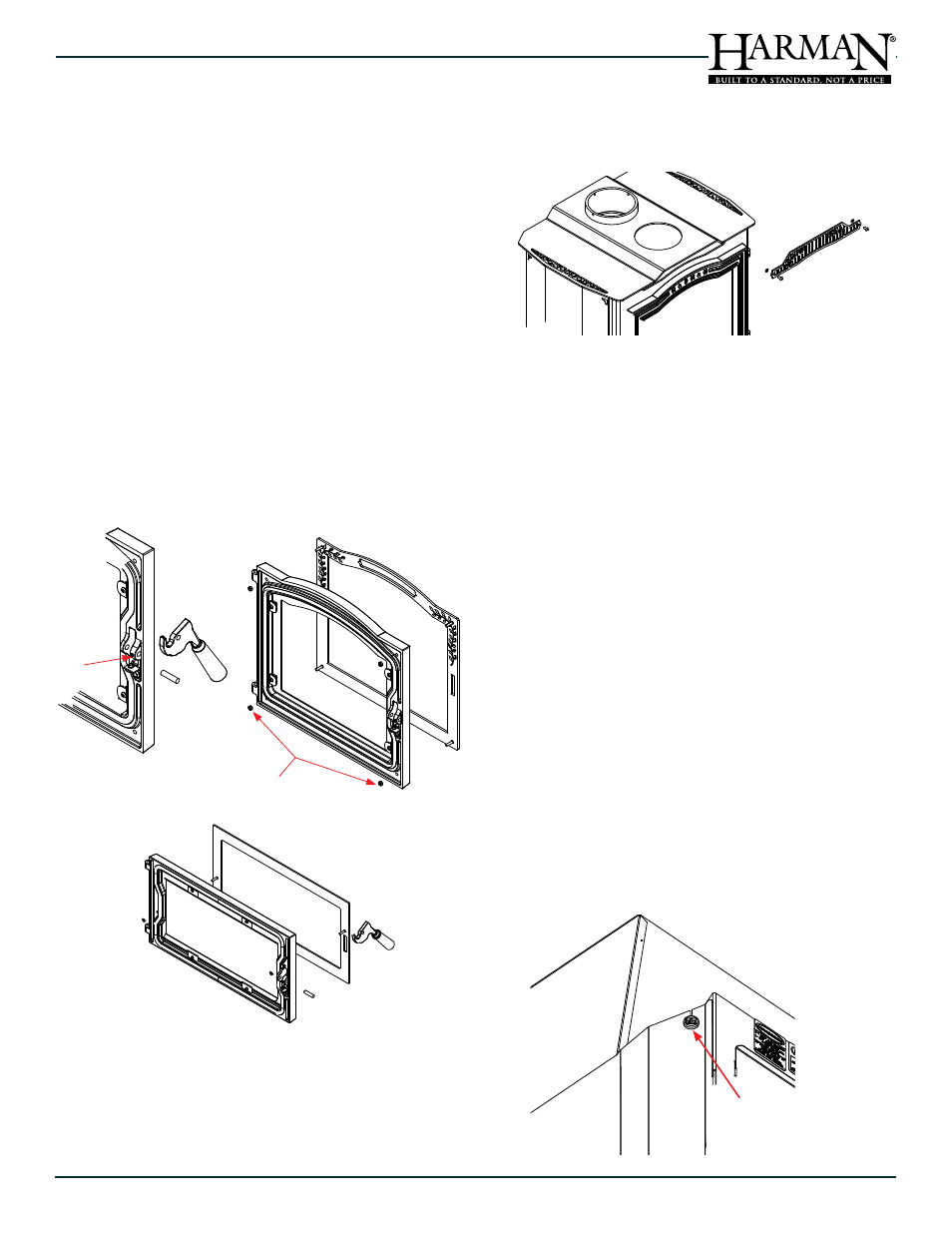

F. Optional Door Trim Kit
The door trim kit includes a brushed stainless frame for
each door, and an air grill. To install the optional door trim,
you'll first need to remove the latch mechanism from the
door. The process is the same for each door.
1. Using a hex key wrench, loosen the set screw at the
latch. Remove the latch pin and latch handle.
2. Remove the door from stove. Lay the door face down on
a soft material.
3. Locate the four drill dimples on the inside corners of the
door. Using bit supplied (1/4”), drill a hole through each
corner. (two locations on ash door)
4. Insert the door trim studs through the holes. Using a nut
driver, secure with the supplied nuts. These nuts are
placed on the stud with the indented triangle side facing
up. Before tightening the nuts, check that the frame is
properly nested into the offset of the door. Do not over-
tighten nuts. The frame may distort or the stud can break
loose from the frame if over-tightened.
5. Place door back on the stove. Attach the latch by
reversing Step 1.
To Install the air grill, remove the existing painted grill.
Then, using the same two screws and spring washers,
install the brushed stainless grill.
G. Room Sensor Installation
Although not required, it is recommended that the room
sensor be connected in every installation. Using a minimum
size 18 gauge wire, you may splice in an additional length, to
extend the room sensor. The following are typical locations
for the room sensor;
• On an interior wall next to or in place of a typical wall
thermostat.
• On the leg of a coffee table or end table in your favorite
sitting location.
• Dangled behind the stove, hidden from view, acting as a
return air sensor.
Note: When installing the room sensor, limit the
distance from the stove to 25 feet or less.
Once the location has been decided, run the wiring to the
rear of the stove. Crimp the two female terminals onto the
ends of the wires and plug them in to the port provided on
the right rear portion of the stove. These connections are
not polarity specific.
Note: If the room sensor is located too close to the
appliance, or in a direct path of the distribution air, You
may need to elevate the temperature setting to maintain
a comfortable temperature level throughout the heated
space.
Room Sensor
attaches on
rear of stove.
Set Screw
Locking nuts
