10
Super-Magnum Coal Stoker Stove
Do Not Burn Wet Coal! 3-90-02702R6_03/13

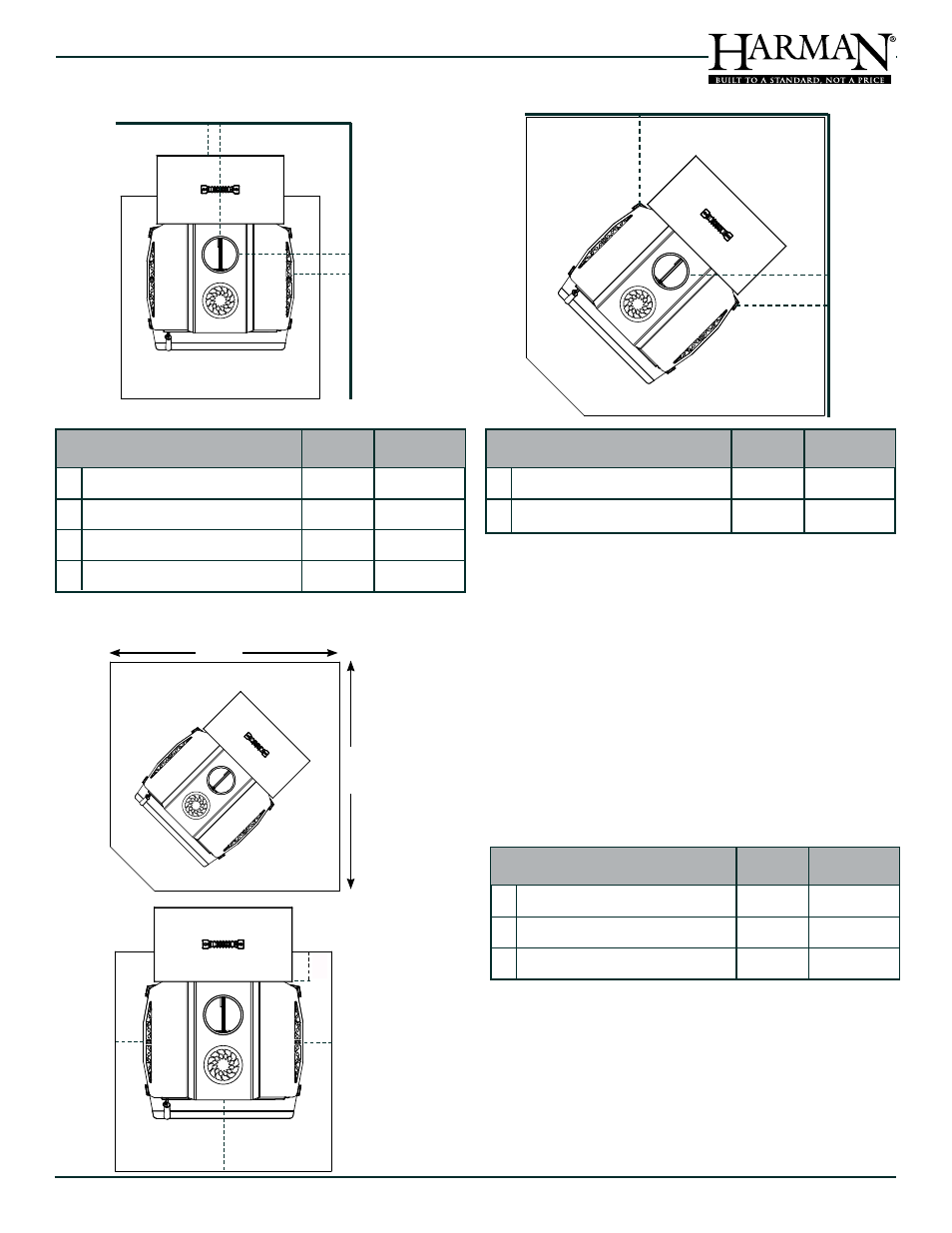

B. Clearances To Combustibles
A C
D
B
F
E
E
C
D
B
A
Parallel
Installation
Inches Millimeters
Back Wall To Unit Hopper
Side Wall To Unit
Back Wall To Flue Connector
Side Wall To Flue Connector
2 51
17 432
24 610
34 864
F
E
Corner
Installation
Inches Millimeters
Walls to Unit Body
Walls to Flue Connector
15 381
24 610
C. Floor Protection Requirements
Floor protection must be of a non-combustible material. It
must be located under the appliance and extend beyond
the appliance according to the measurements below. Floor
protection must also extend under any horizontal sections
of chimney connector and 2" (50.8mm) beyond each side of
the connector.
DANGER: The appliance legs may not be removed for
installation.
Minimum Size floor protection is 49½" Deep By 42¾" Wide.
J
G
Floor Protection
Requirements
Inches Millimeters
Sides- USA /CANADA *
Rear- USA
8 203
12 305
H Front- USA /CANADA * 18 457
G G
H
J
54"
54"
Alternate floor protector dimension may be used as long
as they satisfy the measurement requirements shown
above.
Minumum size floor protection for a corner installation
hearth pad is 54" x 54" (USA ONLY).
