Connecting to AV Devices
Connect external devices such as VCD/DVD players or VCRs to the
TV using the AV1 and AV2 ports on the back of the TV.
Connecting to a VCR, VCD or DVD Player

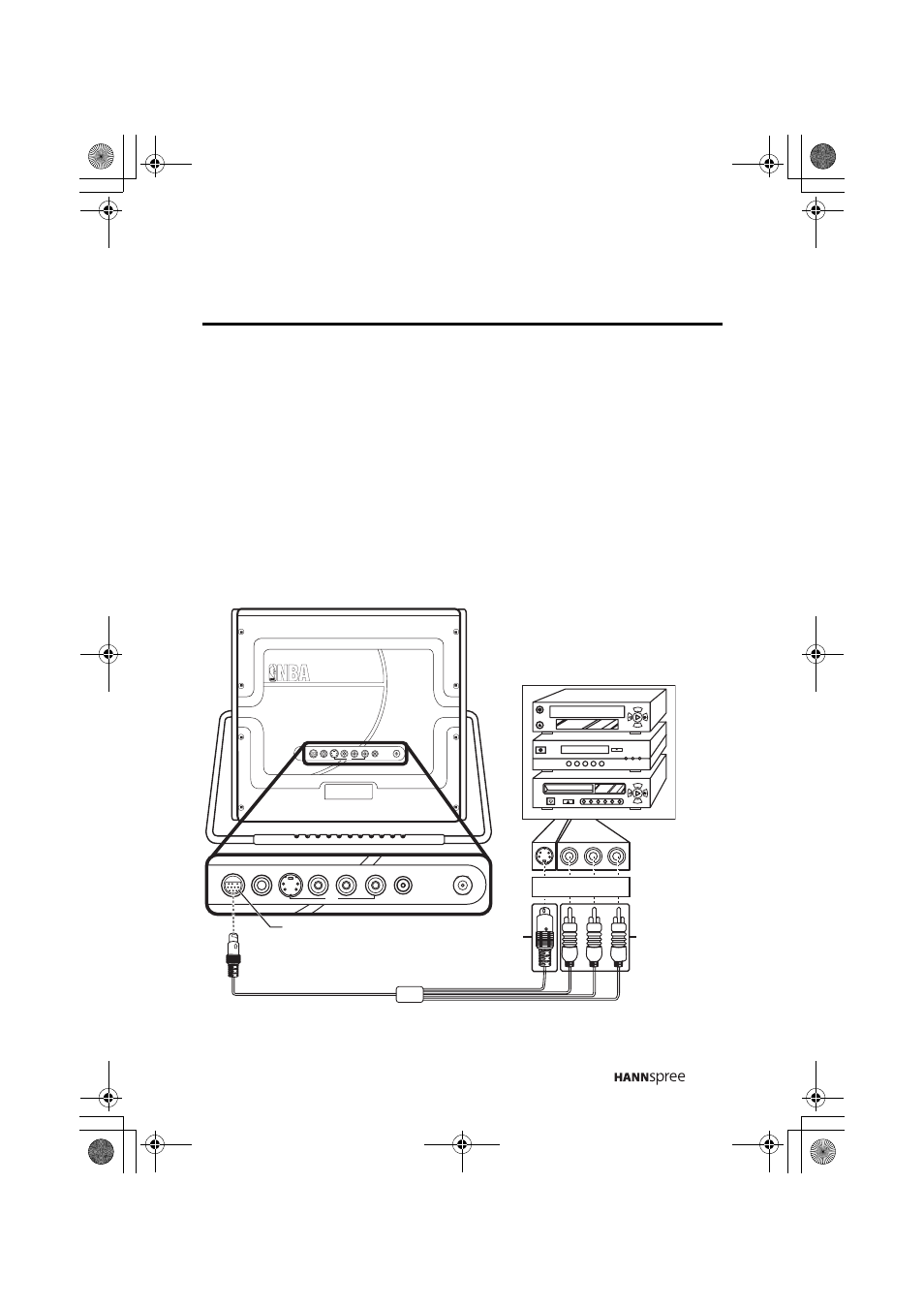

The illustration presented here shows you how to connect your TV to
a VCR, VCD or DVD player. Actual connections may vary according
to the make and model of your device. Refer to the user’s manual
included with the AV device for more detailed instructions.
AV2 LINE OUT S-VIDEO R
AV1
L VIDEO DC-IN ANT
AV2 LINE OUT S-VIDEO R
AV1
L VIDEO DC-IN ANT
B R W Y
Cables and connectors are color-
coded (black, red, white, yellow).
VCR
DVD
VCD
AV2 S-Video
connector connectors
AV
4-in-1 cable
