14A-18
SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
®
®
POWER SYSTEMS, INC.
3. Consult factory for motor operators.
4. If non-standard phase spacing is required, please pro-
vide length of interphase control desired.
NOTE:
1. 200 kV KIW* is not available with vertical mounting
or fiberglass support.
2. Consult factory for structure mounting applications.
Phase-over-Phase CCW Opening ---P
Horizontal Upright CCW Opening -- H
Vertical (Riser Pole) CCW Opening ---V
D6 X X X X X X
kV
15
27 G
36
42
E
36
48
F
15
17

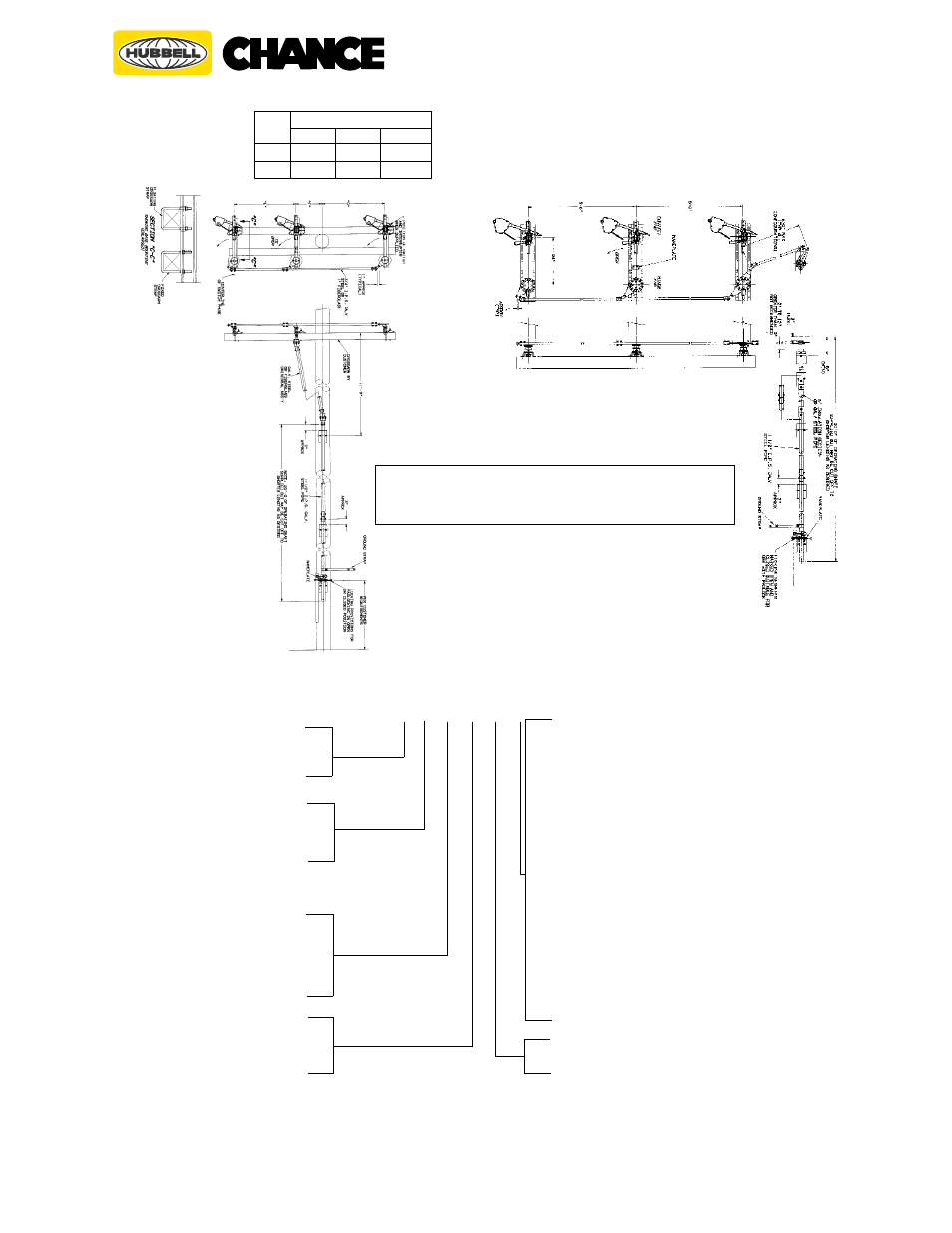

Dimensions (inches)
Type D6 Switches — Non-Unitized
15 to 38 kV 600 Amperes
For alternate mounting configurations,
see preceding page.
Mounting
None ------------------ 0
* Galvanized Steel --- S
(Horizontal mount only)
All steel controls -------------------- A
Fiberglass universal section
and steel interphase shaft --- B
Controls
15 kV/110 kV LIW* NEMA Insulator - 1
27 kV/150 kV LIW* NEMA Insulator - 2
38 kV/200 kV LIW* NEMA Insulator - 3
Ratings
Support
* Supports are bundled with the control
pipe separate from the switch crate.
Interrupter
A- Additional 10 ft. operating pipe, coupling, and
guide bracket. Horizontal mounting only.
Cat. No. E8012729P.
B- Additional 10 ft. operating pipe, coupling, and
pipe guide. Phase-Over-Phase and Vertical only.
Cat. No. E8012729P.
D- Lightning arrester brackets. Horizontal and
Vertical only. Specify Cat. No. C8011014 for
complete mounting assembly for six distribution
class arresters.
E- Lighting arrester brackets. Phase-Over-Phase
only. Specify Cat. No. C8011381 for complete
mounting assembly for six distribution-class
arresters; C8011380 for three arrester application.
Q- One 150 kV LIW* insulator in vertical controls.
Specify porcelain or polymer.
T- Six fortified cadmium-plated aluminum parallel-
groove terminal connectors. Cat. No. ATC1343 for
one connector, No. 2 through 500 kcmil.
Options
Ordering Information Catalog Numbering System
Horizontal Mounting Horizontal Mounting
38 kV — 200 kV LIW*
L - With Duogap ® Interrupter
N - No interrupter
*Lightning Impulse Withstand
