Type d7 switches, Unitized and pre-assembled, Unitized – Hubbell Type D6 User Manual
Page 13: 14a-13
14A-13
SEPTEMBER 2007
HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
®
®
POWER SYSTEMS, INC.

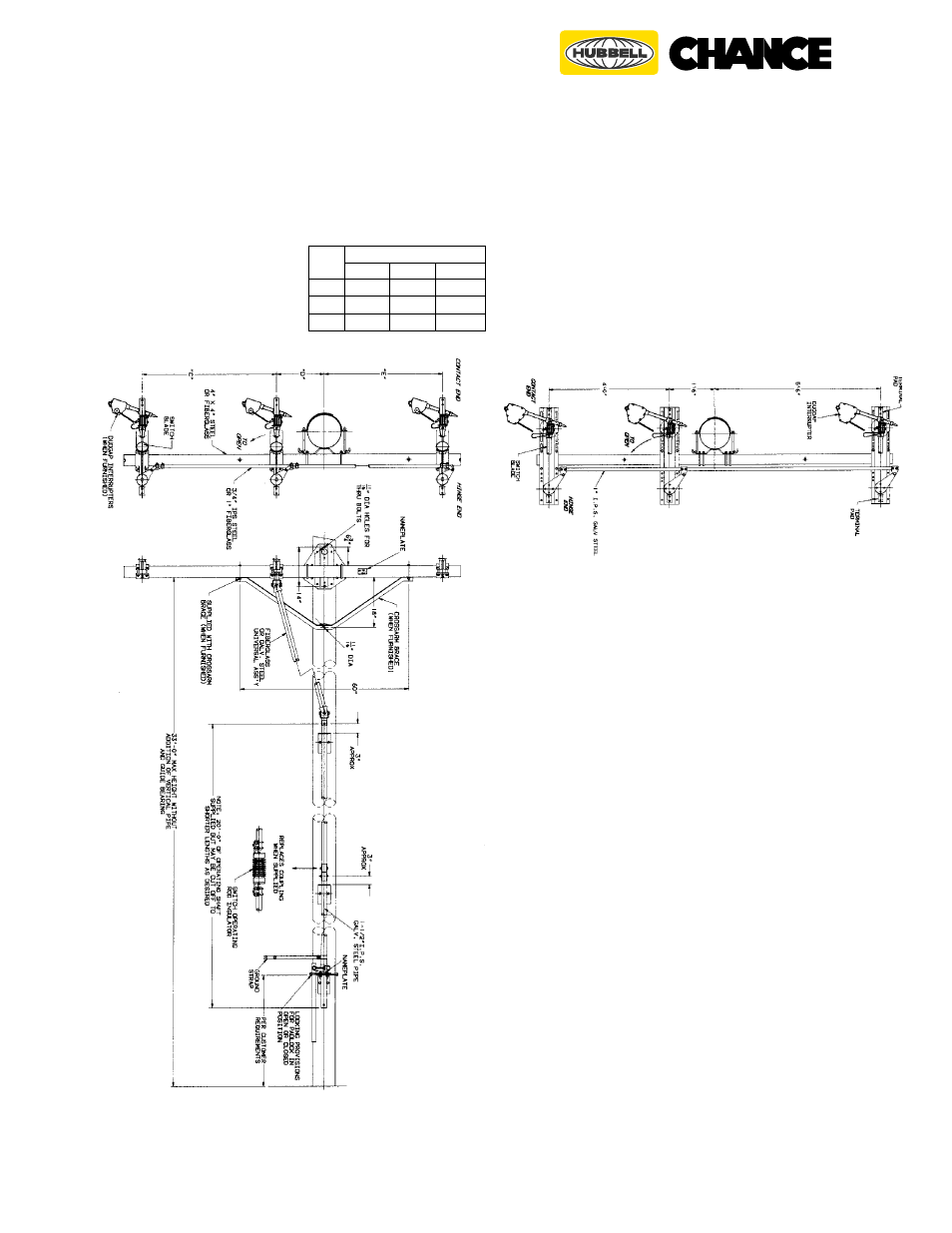

Unitized and Pre-Assembled
Type D7 Switches —
Unitized
15 to 38 kV 600 Amperes
E
36
42
42
C
36
48
48
D
15
17
17
Dimensions (inches)
Horizontal Mounting
Horizontal Mounting
38 kV — 200 BIL
kV
15
27
*34.5
*150 kV LIW (Lightning
Impulse Withstand)
