Havis-Shields K9/Prisoner Transport Unit KK-K9-C20-K-PT User Manual
Page 6
KK-K9-C20-K-PT_INST_10-07

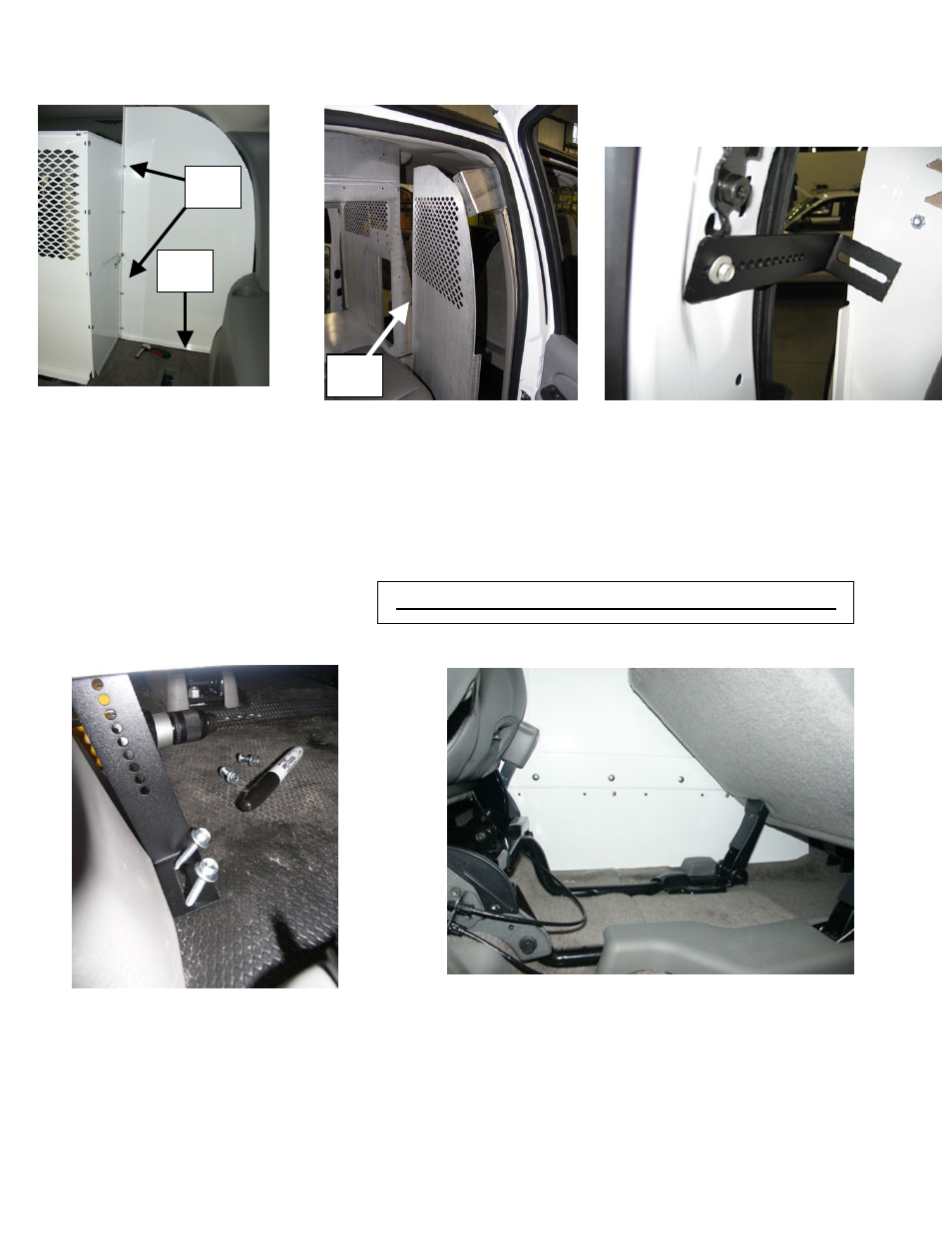

1. Attach front floor mounting bracket
to forward prisoner filler panel using
¼” x ¾” carriage bolts and nuts.
2. Attach to vehicle using ¼” x 1” hex
lag bolts. Be sure to check for
obstacles.
Flip front portion of seat out of the
way and attach lower prisoner filler to
K9 main housing, using #10 x ½”
sheet metal screws.
Caution…Always Check under vehicle for obstructions
1. Attach front prisoner filler panel to K9 main housing
using ¼ x ¾” stainless carriage bolts and serrated nuts.
2. Attach front prisoner partition to previously mounted
“B” pillar mounting brackets using ¼ x ¾” stainless
carriage bolts and serrated nuts.
#1
#2
1.Attach rear prisoner filler
panel to K9 main housing
using ¼ x ¾” stainless
carriage bolts and serrated
nuts.
2.Attach to floor using ¼” x
1” hex head lag bolts. Be
sure to check under vehicle
for obstacles.
#1
#2
