Hot Plug SAS/SATA or Non-Hot Plug SATA Models

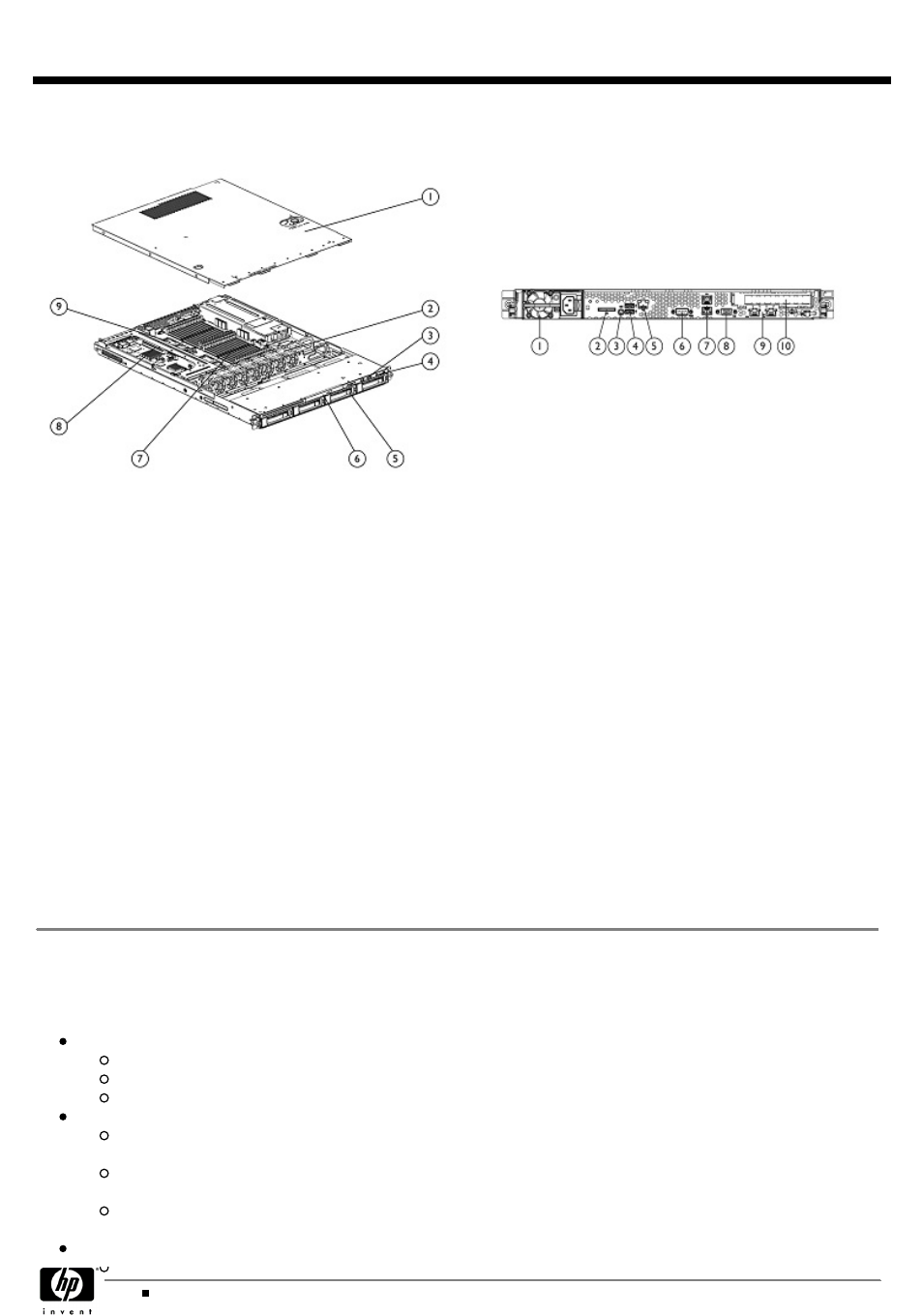

Front View:

Rear View:

1.

Access panel

1.

Power supply

2.

System fans

2.

Optional SD Card Reader

3.

Front-panel USB 2.0 ports

3.

Unit Identification LED (UID)

4.

Power switch/system status LEDs

4.

Two USB ports

5.

Standard 1st , 2nd , 3rd and 4th 3.5" hot-plug
SAS/SATA or non-hot plug SATA hard drive bays

5.

Optional Lights-Out 100 10/100Mbps port

6.

Optical drive bay

6.

Serial port

7.

Twenty Four DIMM Slots

7.

(2) RJ45 GbE LAN ports (3rd & 4th port)

8.

Slot 1:Full-length/Full height x16 PCI-Express Gen2 slot,
or
Slot 1: Half-length/Full height x16 PCI-Express Gen2
slot and
Slot 2: Low Profile x4 PCI-Express Gen2 slot (accepts
x8 cards, internal only)

8.

VGA port

9.

Two (2) AMD Opteron 6100 series processors

9.

(2) RJ45 GbE LAN ports (1st & 2nd port)

10.

Slot 1:Full-length/Full height x16 PCI-Express Gen2 slot,
or
Slot 1: Half-length/Full height x16 PCI-Express Gen2
slot and
Slot 2: Low Profile x4 PCI-Express Gen2 slot (accepts
x8 cards, internal only)

At A Glance

Introducing the HP ProLiant DL165G7, now available with the latest high performance Opteron Eight and Twelve Core
processors, 24 DDR3 memory DIMMs, 2 PCIe Gen2 slots, four NIC ports and an Easy Setup CD.

Processors:

Supports up to two AMD Opteron™ 6000 series Eight and Twelve Core processors
Supports DirectConnect Architecture
Supports Power Now

Memory:

Up to 256GB, using 2x8GB Dual-Rank and 1x16GB Quad-Rank PC3-8500R-7 DDR3 Registered (RDIMM)
memory per memory channel, operating at 800MHz in 24 slots. (See memory section for population rules)
Up to 192GB, using 8GB PC3-10600R or PC3-8500R DDR3 Registered (RDIMM) memory, operating at
800MHz when populated at 3 DIMMs per Channel in 24 slots.
Up to 64GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when populated at
2 DIMMs per Channel in 16 slots.

Internal Drive Support:

QuickSpecs

HP ProLiant DL165 Generation 7

Overview

DA - 13602 Worldwide QuickSpecs — Version 2 — 4.2.2010

Page 1
