Caution
CENTER CONDUCTOR MAY SHORT TO SHIELD. Each
channel’s center conductor may momentarily short to the
shield when the channel is opened or closed. Use only
resistive (50
Ω
or 75
Ω
) or current-limited (<1 A) inputs with less
than 0.1
µ
F total capacitance.
Caution
STATIC-SENSITIVE DEVICE. Use anti-static procedures when
removing, configuring, and installing a module. The
multiplexer modules are susceptible to static discharges. Do
not install a multiplexer without its metal shield attached.
Connecting User Inputs
User inputs to the RF multiplexers are made through user-supplied male BNC
connectors to the female BNC connectors on the modules. Figure 2-1 shows
the multiplexer female BNC connectors and associated channel numbers.

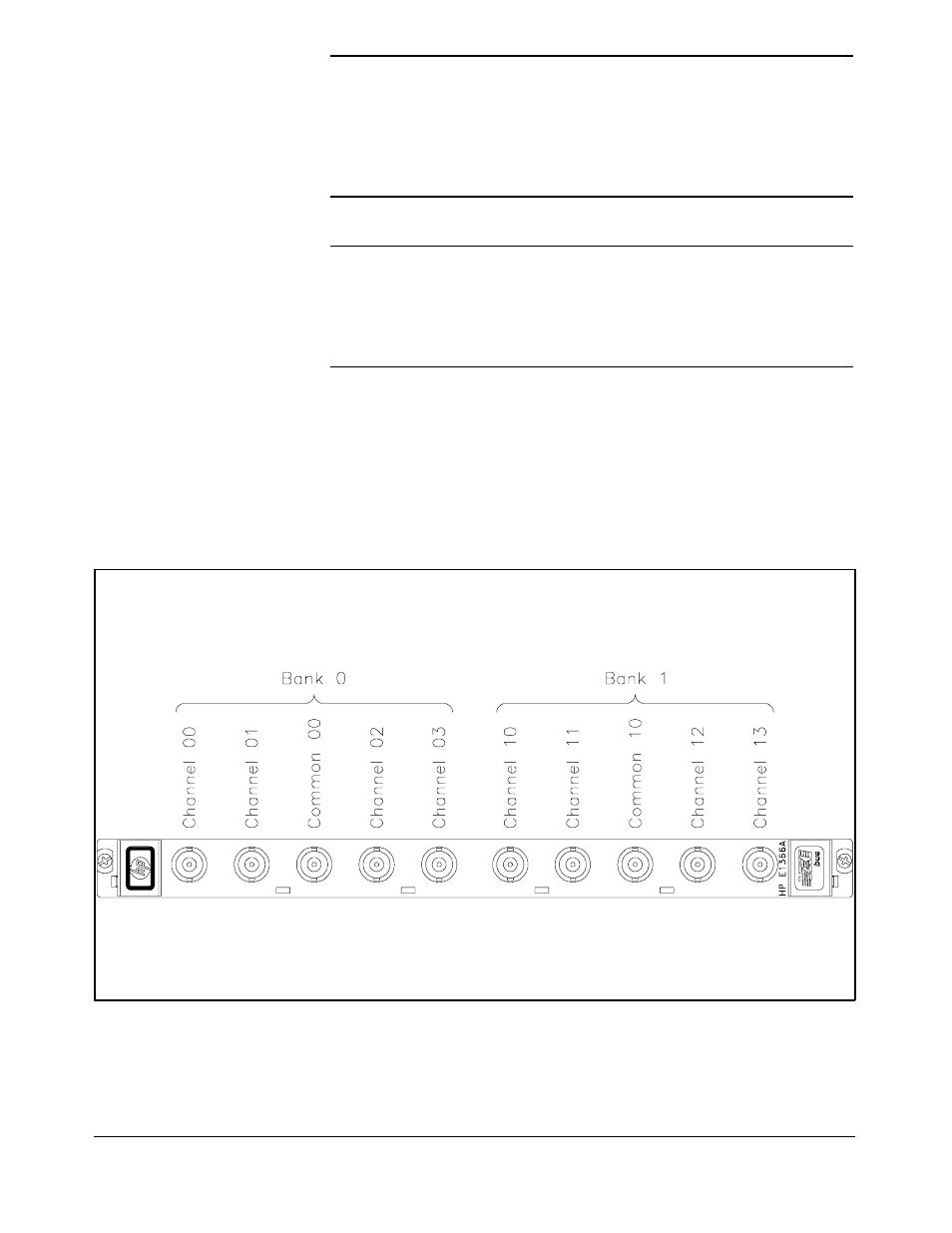

Figure 2-1. BNC Connector Locations
18 Configuring the HP E1366A/E1367A RF Multiplexers
