Heat & Glo • 350TRSI-AUF, 350TRSILP-AUF • 2089-980 Rev. R • 2/13
70
16
Reference Materials

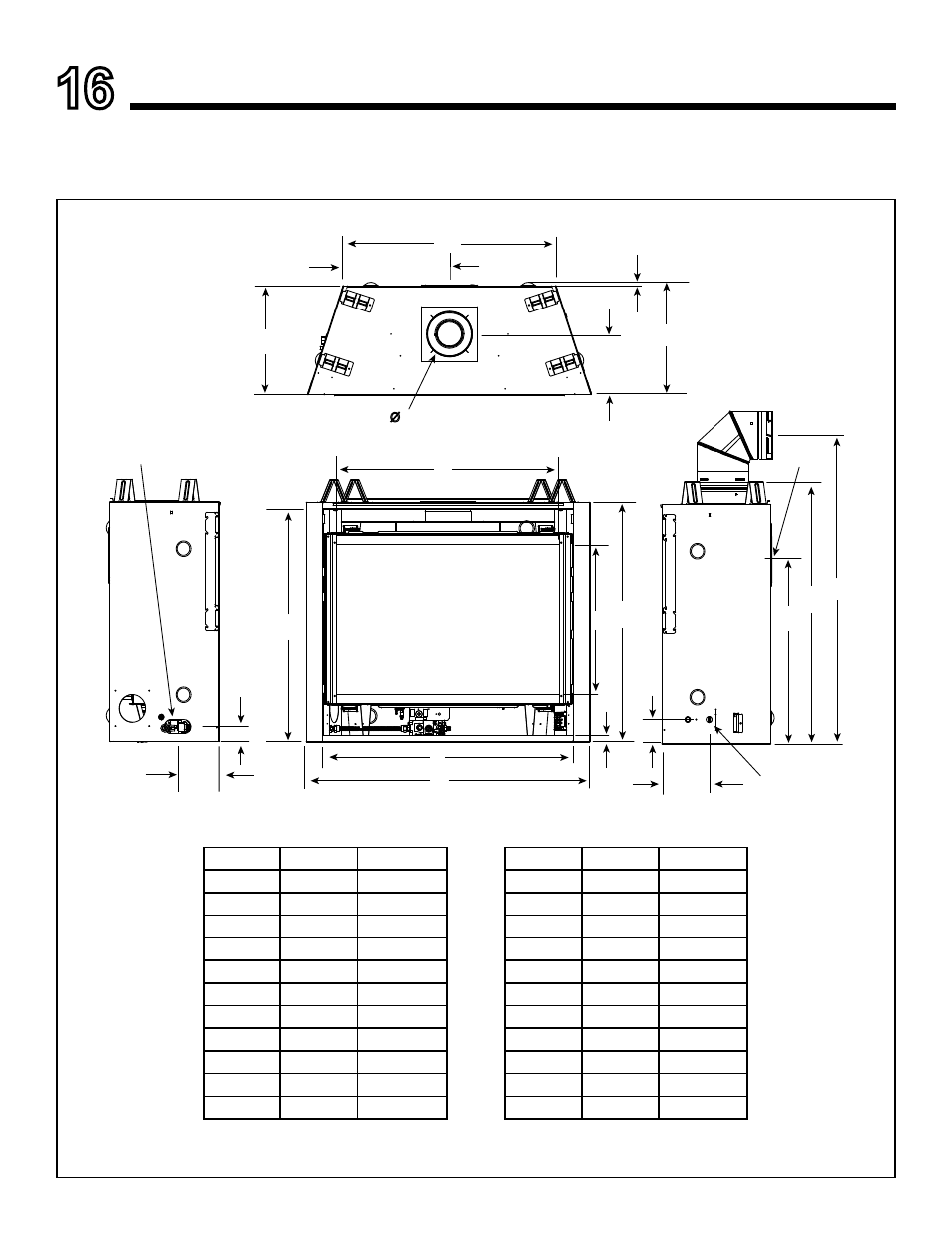

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.
Figure 16.1 Appliance Dimensions
Location Inches Millimeters
L 8-3/4 223
M 16-5/16 414
N 1/2 13
O 22-3/4 578
P 11-3/8 289
Q 15-7/8 403
R 6-5/8 168
S 2-3/16 55
T 6 153
U 1 25
V 28 712
Location Inches Millimeters
A 33 838
B 28 714
C 24-1/8 613
D 15 384
E 29-3/16 741
F 3-1/2 90
G 6-7/8 175
H 21-1/4 541
I 32-1/2 827
J 38-3/4 984
K 8 203
A
B
T
E
ELECTRICAL
ACCESS
S
V
C
D
U
G
F
H
J
I
K Ø
R Ø
L
M
N O
P
Q
GAS LINE ACCESS
