E. Log Placement Instructions Log Assembly: LOGS-350CE-D
1
2
3
4
5
6

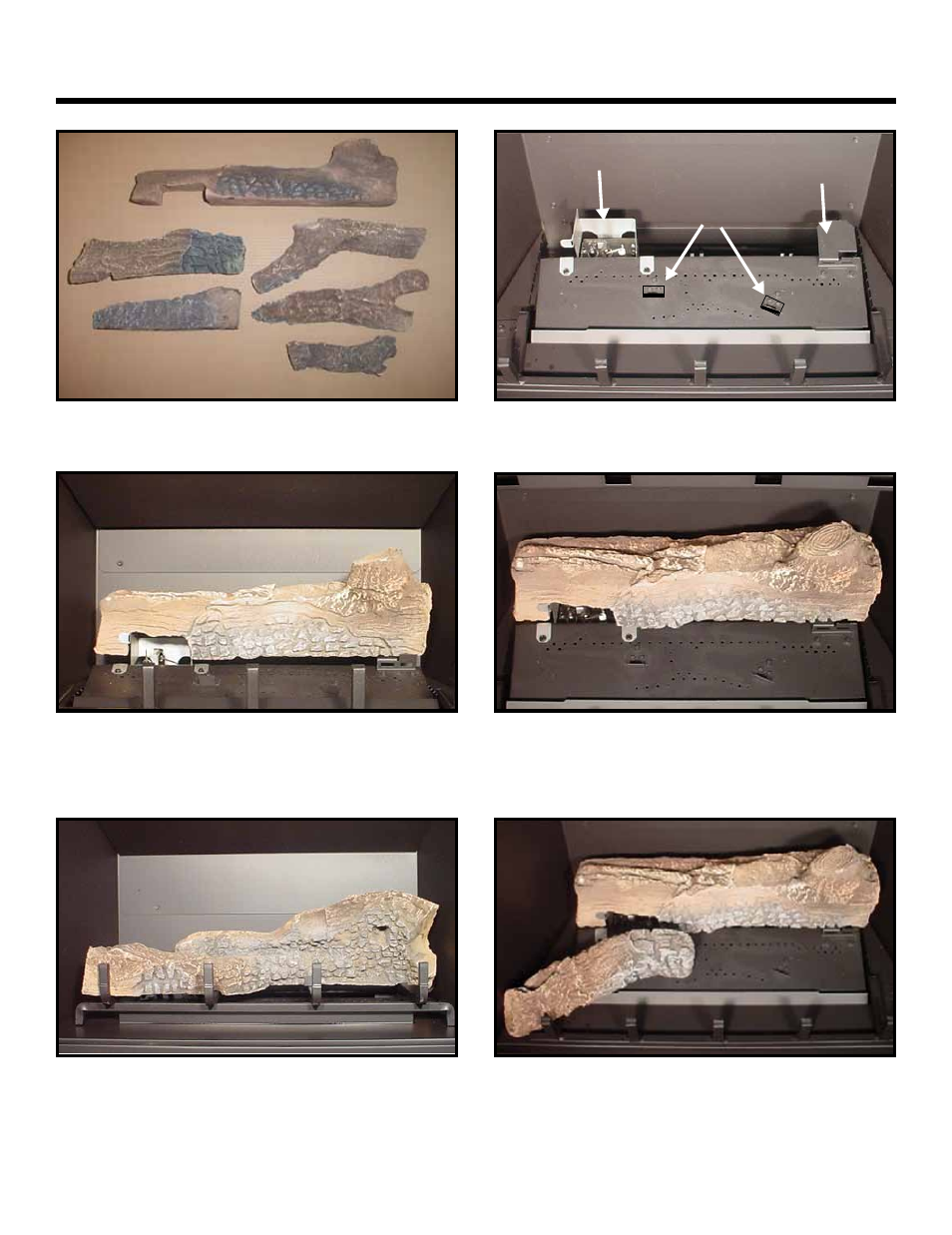

Carefully remove the logs from the packaging. CAUTION: Logs are fragile!
LOG #1 (SRV327-701): Place log #1 at the rear of the unit, with the left edge behind the tab on the pilot bracket. The right
side sits behind the tab on the support bracket.
1
SUPPORT
BRACKET
BURNER TABS
PILOT
BRACKET TAB
1
LOG #2 (SRV2033-701):
Locate the bottom groove of log #2 over the left most grate tine and align over
the burner by placing the log slot over the burner tab as shown.
2
2
