Havis-Shields Dodge Charger Spare Tire Bracket C-TTB-CHGR User Manual
Page 4

C-TTB-CHGR_INST_9-07

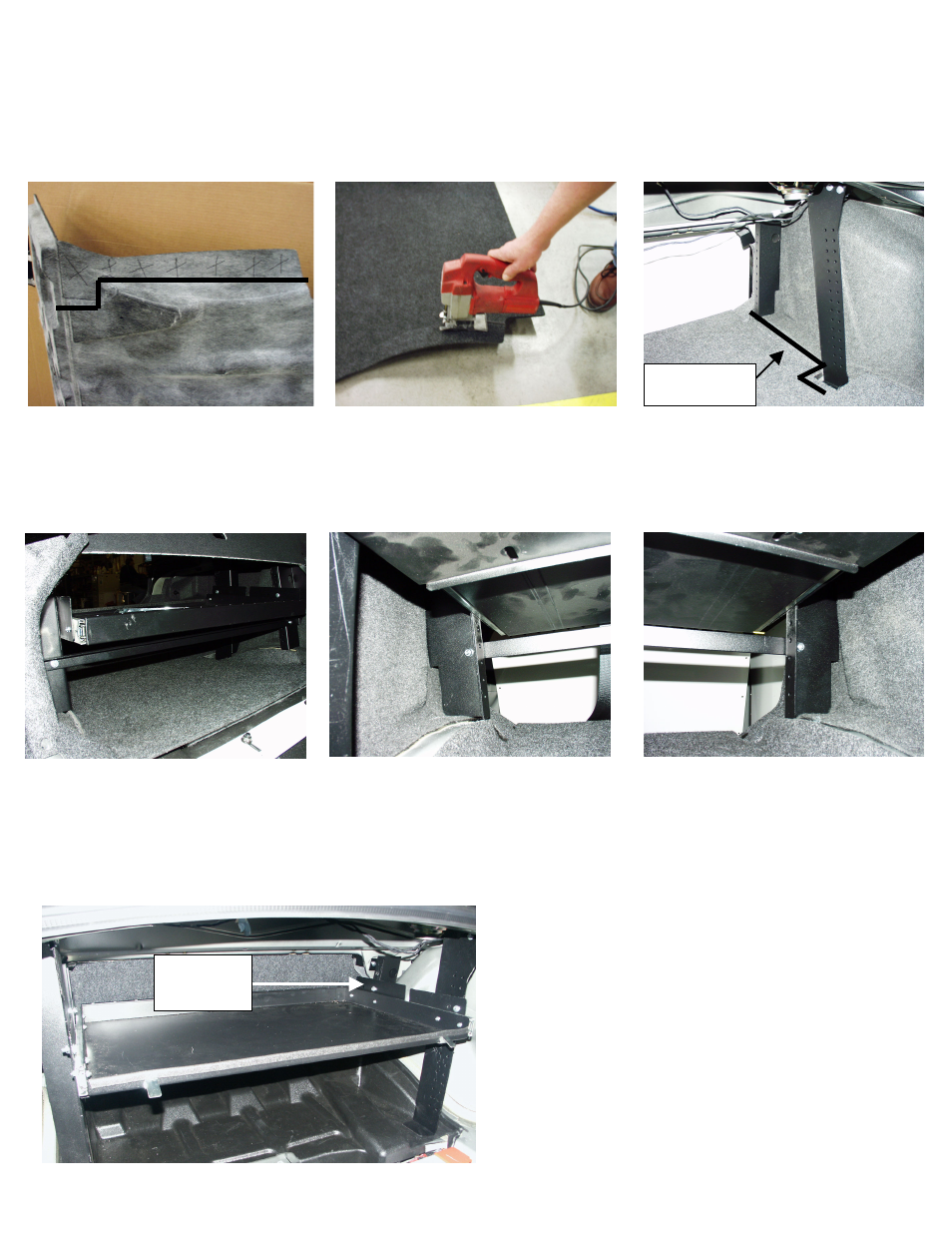

At this time you will have the all mounting brackets loosely installed. If installing into police
package vehicle containing carpeted fiberglass trim and donut spare tire you will need the
following modifications.
Remove
Mark section of trim to cut
Cut carpeted fiberglass trim
using jigsaw.
Replace carpeted trim.
Section cut
Loosely attach cross brace to either set
of holes using ¼” x ¾” hex bolts and
serrated nuts (Item 2) (7/16” socket)
Driver side view
Passenger side view
At this time, attach the bracket stiffener (Item 2) across the front support mounting brackets. (Items 4, 5)
This is necessary to square the front end of the assembly.
Note: Bracket stiffener can be mounted higher or lower on front brackets; Use second set of holes or drill as desired.
Attach tray assembly (Item 10) to
mounting brackets using ¼” x ¾”
hex bolts & serrated nuts
Attach mount plates (Item 3) to tray
assembly using #10 x ½” machine
screws and keps nuts. (Item 11, 12)
Mount
plates
