Havis-Shields Dodge Charger Spare Tire Bracket C-TTB-CHGR User Manual
Page 3
C-TTB-CHGR_INST_9-07

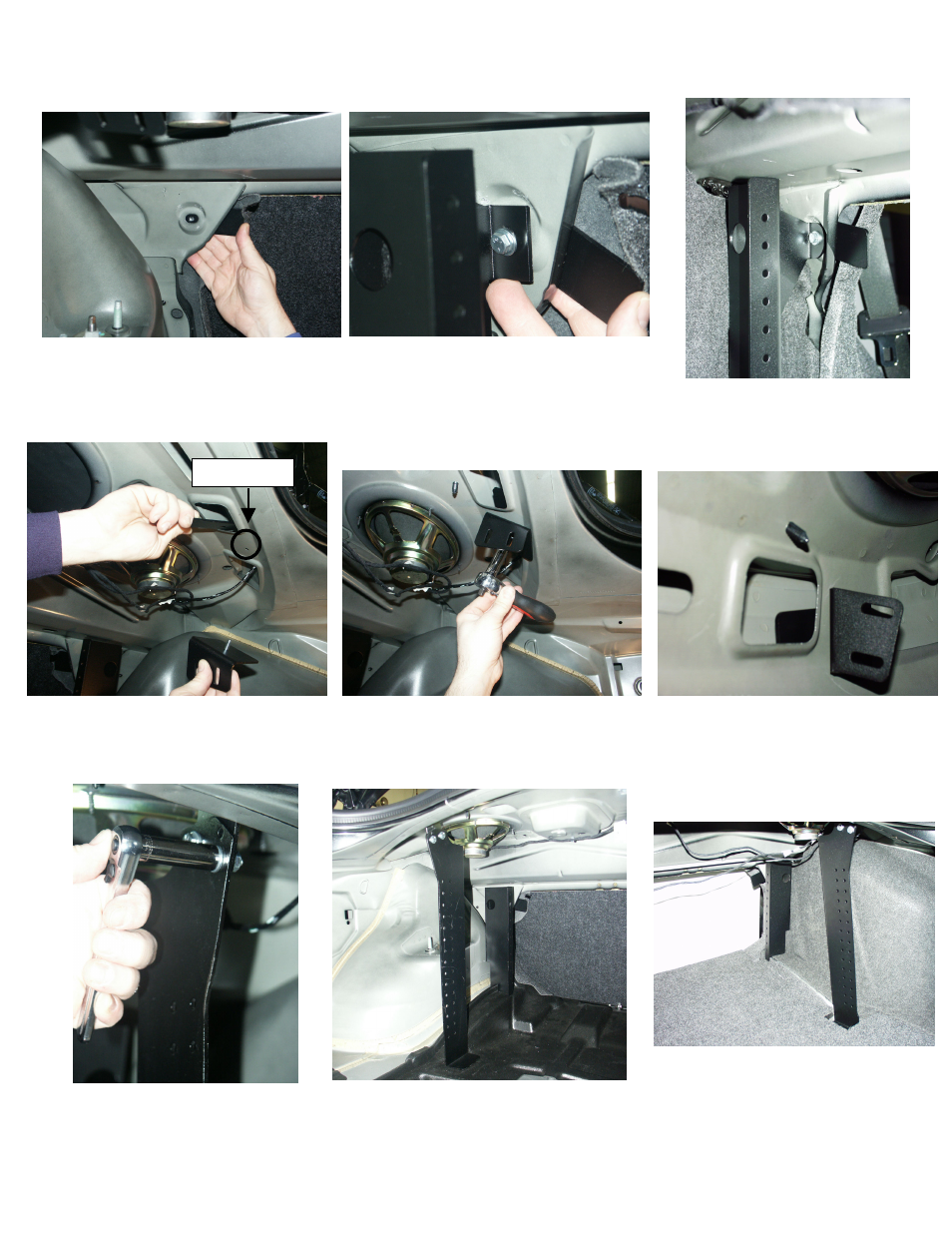

Loosely attach front support mounting
brackets using nut plate between seat
wall and backseat. ¼-20 x 1” hex bolt
& washer (Item 1, 4, 5) (7/16” socket)
Position nut plate
(Item #1)
Attached bracket
Loosely attach rear-mounting
brackets w/ nut plate, using existing
holes (Item 1, 7, 9) (7/16” socket)
Loosely attach using ¼-20 x ¾” Hex
head bolt & washer (7/16” socket)
Mount hole
Attached bracket
Attached brackets
(Rubber mat style)
Loosely attach rear-mounting
support brackets using ¼-20 x ¾”
Hex head bolts, washers &
serrated nuts. (Item 6, 8)
(7/16” socket)
Attached brackets
(Carpeted trim style)
Trim modified and reinstalled
