ADVANCED CABLE HOOKUP -WITH CABLE BOX AND SPLITTER [G]

ADVANCED CABLE HOOKUP -

WITH CABLE BOX AND

SPLITTER

[G]

WITH THIS HOOKUP

YOU CAN...
WATCH AVAILABLE CABLE CHANNELS
RECORD AND WATCH THE SAME CHANNEL
RECORD ONE CHANNEL AND WATCH ANOTHER

TO RECORD, ALL CHANNEL SELECTIONS MUST BE MADE AT THE CABLE BOX.
BE SURE TO CONSULT YOUR CABLE BOX MANUAL FOR THE CABLE BOX OUTPUT
CHANNEL.

Caution: Do not connect to the power supply outlet before connecting all cables (see page 17).

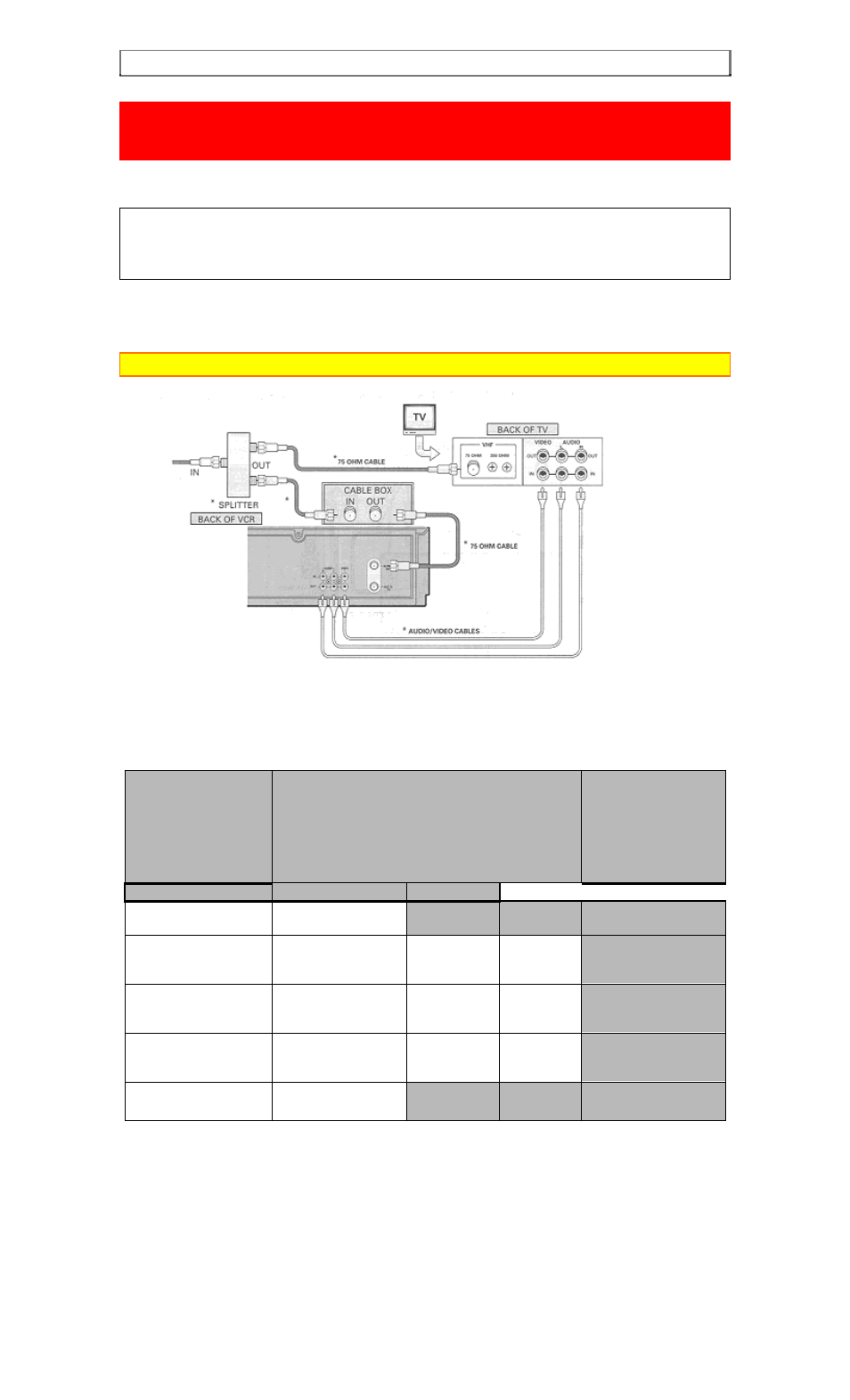

Advanced Hookup with Cable Box and Splitter: AV and RF Hookup
* PURCHASED SEPARATELY

TABLE G

FUNCTION

CHANNEL SELECTION

VCR indicator

(Press the VCR/TV

mode

select button to turn the

VCR indicator on or

off.)

VCR

CABLE BOX

Watch Cable Channels

on TV

Select Channel to

Watch

Select and Watch

Channels

using VCR

AUX or VIDEO

Select Cable

Box

Output Channel

Select

Channel

to Watch

Record and Watch

the Same Channel

AUX or VIDEO

Select Cable

Box

Output Channel

Select

Channel

to Watch

Record One Channel

Watch Another

Select Channel

to Watch

Select Cable

Box

Output Channel

Select

Channel

to Record

Watch Playback of a

Tape

AUX or VIDEO
