(8) GAMMA (CSR: F0F0-0818 h)
Gamma correction is adjusted.
-OFF-
Setting value 80000000h
Gamma correction is set to OFF.
-Manual adjustment-
Setting value 8200000x h x: 0- ON1, 1- ON2, 2- ON3, F- Variable
Positions 1,2 and 3 are effective for additionally fine adjustment
of RGB gamma.

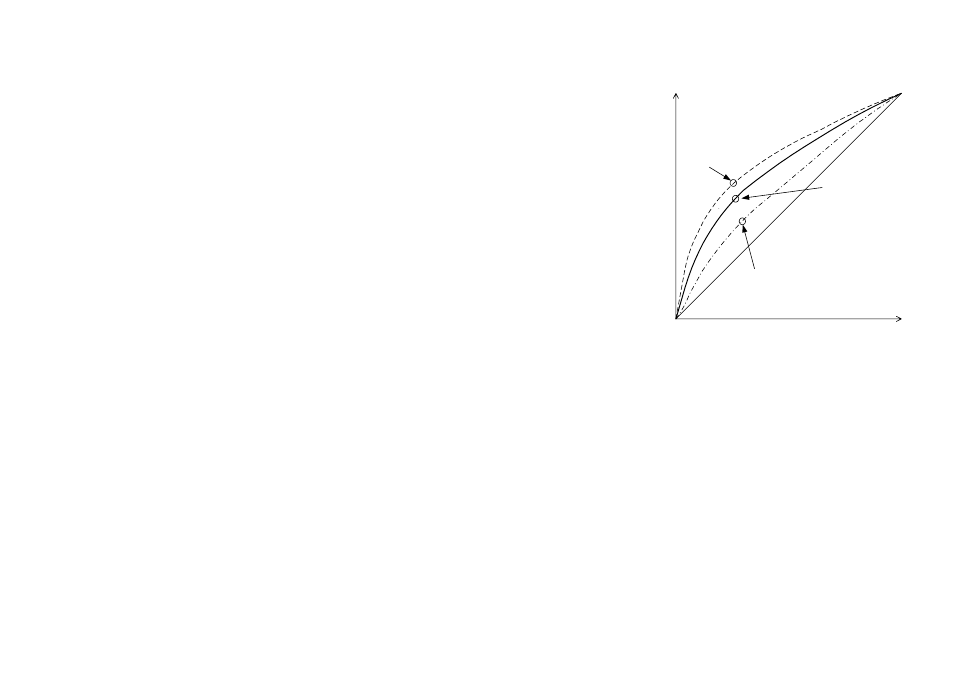

• ON1: Dark component gradation reduced.
• ON2: Standard setting
• ON3: Dark component gradation increased.
When setting to Variable, R GAMMA (CSR: F200 0054 h),
G GAMMA (CSR: F200 0058 h), B GAMMA (CSR: F200 005C h)
of Setting value become to effect
and adjust the detail gamma.
(9)
TRIGGER (CSR: F0F0 0830 h)
Sets external trigger operating mode.
-OFF-
Setting value 80000000 h
Trigger function set to OFF
ON1
OFF
ON3
Input
Ou
tp
ut
ON2
