Configuration Problems
More Troubleshooting for Drives
42
If a SCSI Hard Disk
Drive Is Not Available If a SCSI hard disk drive is not recognized during the system boot, nor
available during normal operation, check that the Internal SCSI cable is
connected to:
a Internal U-160 SCSI connector on the system board located near
the system board switches.
b 16-bit SCSI Terminator on the system board located behind the
processor.
c External SCSI connector on the rear chassis (external SCSI
devices are connected to the SCSI connector located on the rear
panel of the PC Workstation).
Verifying the SCSI
Configuration The Adaptec SCSI Configuration Utility lets you view and change the
default configuration, and all SCSI devices connected to it. You access
the SCSI Configuration Utility by pressing
when the message
Press F6 for SCSISelect(TM) Utility ! is displayed (just after
the “Kayak” boot screen). Then follow the on-screen instructions to
configure the SCSI devices.
NOTE Each SCSI device must be assigned a different SCSI ID.

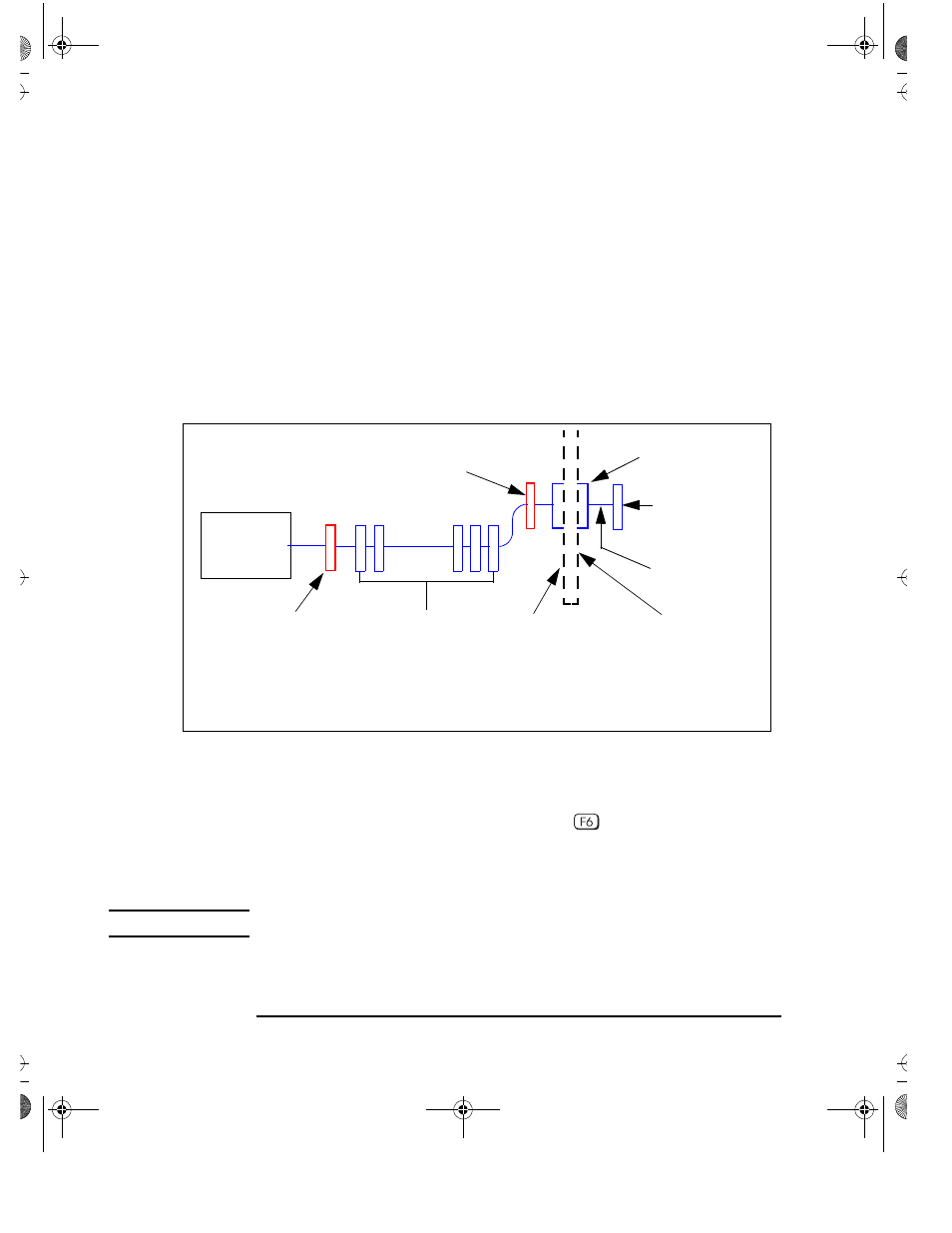

Onboard
AIC-7892
SCSI controller
Internal U-160
68-pin SCSI
Connector on the
System Board
Internal 68-pin SCSI
Connectors on the SCSI Flat
Cable
16-bit SCSI
Terminator
Connector on the
System Board
Outside Chassis
Edge of the PC
Workstation
Connected
External Device
Rear Panel External
68-pin SCSI
Connector
Inside Chassis Edge
of the PC
Workstation
External Cable*
* The External SCSI cable must not exceed 1 meter in length.
