6212-A2-GB20-00 May 2004 65

5.10 IGMP

IGMP (Internet Group Membership Protocol) is a protocol used by IP hosts to report their
multicast group memberships to any immediately neighboring multicast routers.

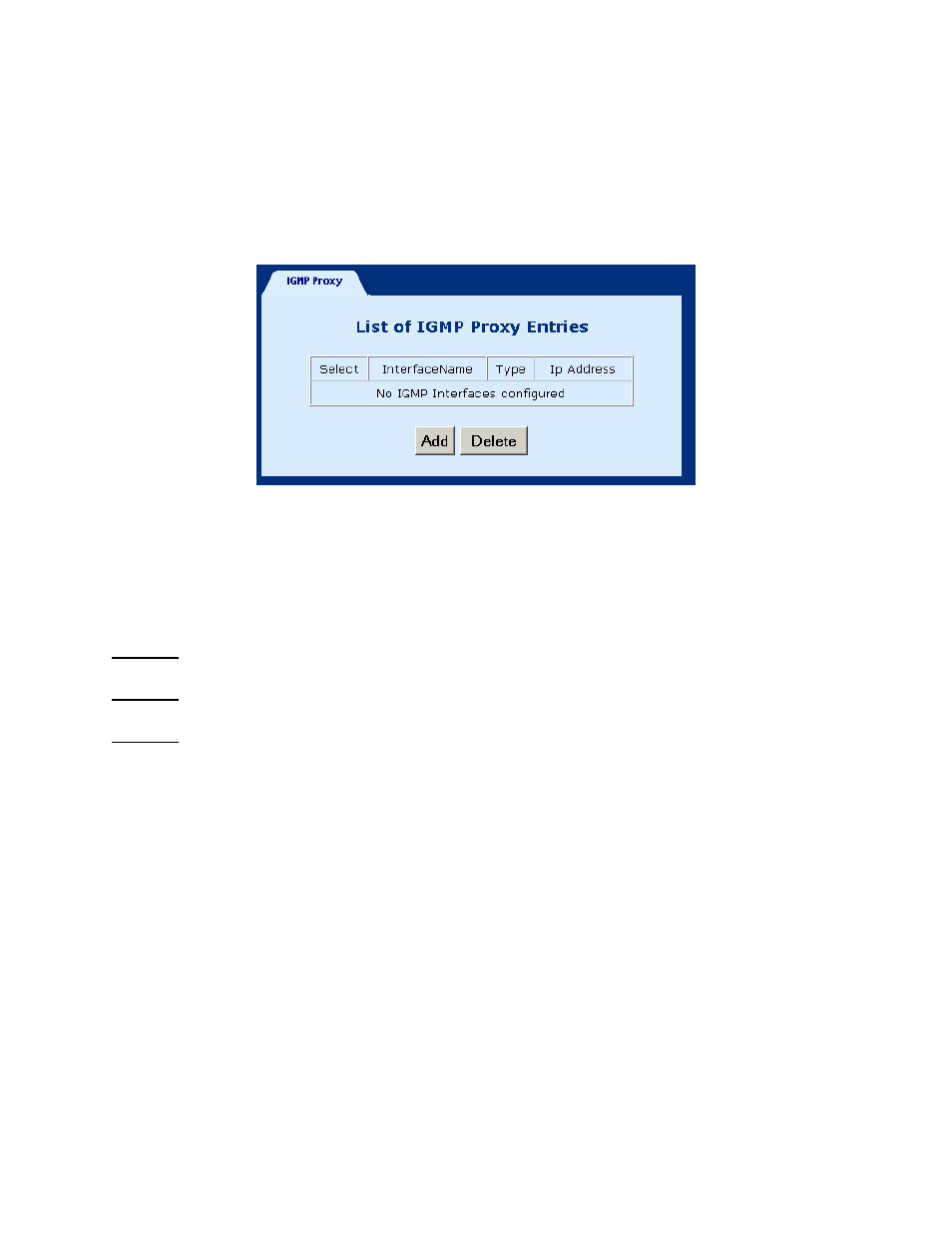

5.10.1 Add an IGMP entry

To add an IGMP proxy, complete the following steps.

STEP 1: Select IGMP Proxy from the menu bar.

STEP 2: Click on Add at the bottom of the screen.

STEP 3: Select Proxy interface, router interface, or both, by checking in the box next to the

interface. Then use the pull-down menu to the left to select the eth, atm, or ppp
interface.
