6212-A2-GB20-00 May 2004 27

STEP 2: Click on OK to submit the settings. Restart the computer when requested.

STEP 3: Start your Internet browser with the default IP address 192.168.1.1.

3.2 Login

Procedure

To log on to the system from the Web browser, follow the steps below:

STEP1: Start your Internet browser.

STEP 2: Type the IP address for the router in the browser’s location field. For example, if the

IP address is 192.168.1.1, type http://192.168.1.1

STEP 3: You are prompted to enter your user name and password. The user name is ignored.

Type your password, or if the password has not been changed, type the default
password. The default password is 12345. The password is case-sensitive.

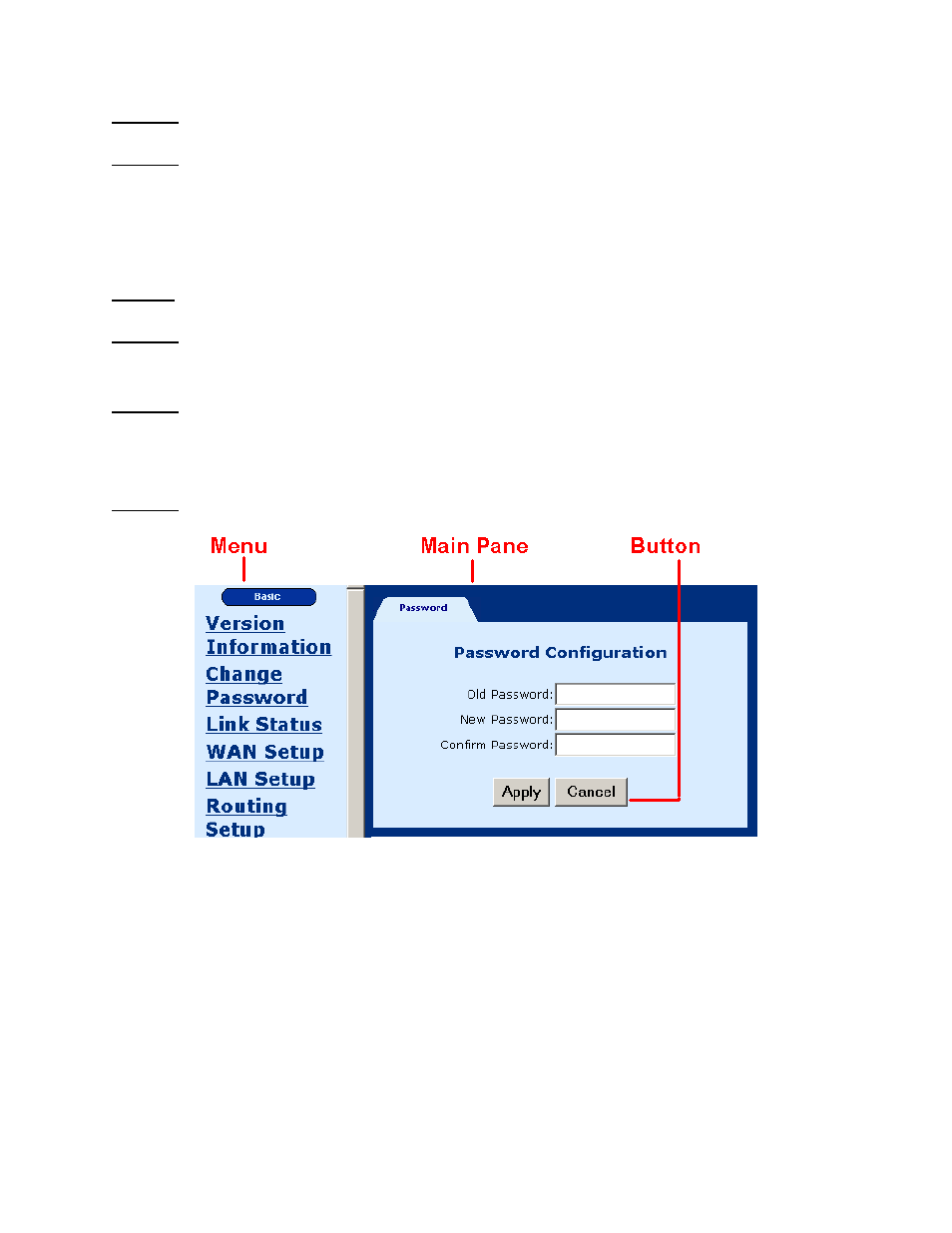

STEP 4: After successfully logging in, the main menu appears.
