6212-A2-GB20-00 May 2004 45
5.5 SNMP
SNMP is a protocol for responding to information and action request messages sent by a
network management station. The messages exchanged enable you to access and manage
objects in an active or inactive (stored) Management Information Base (MIB) on a particular

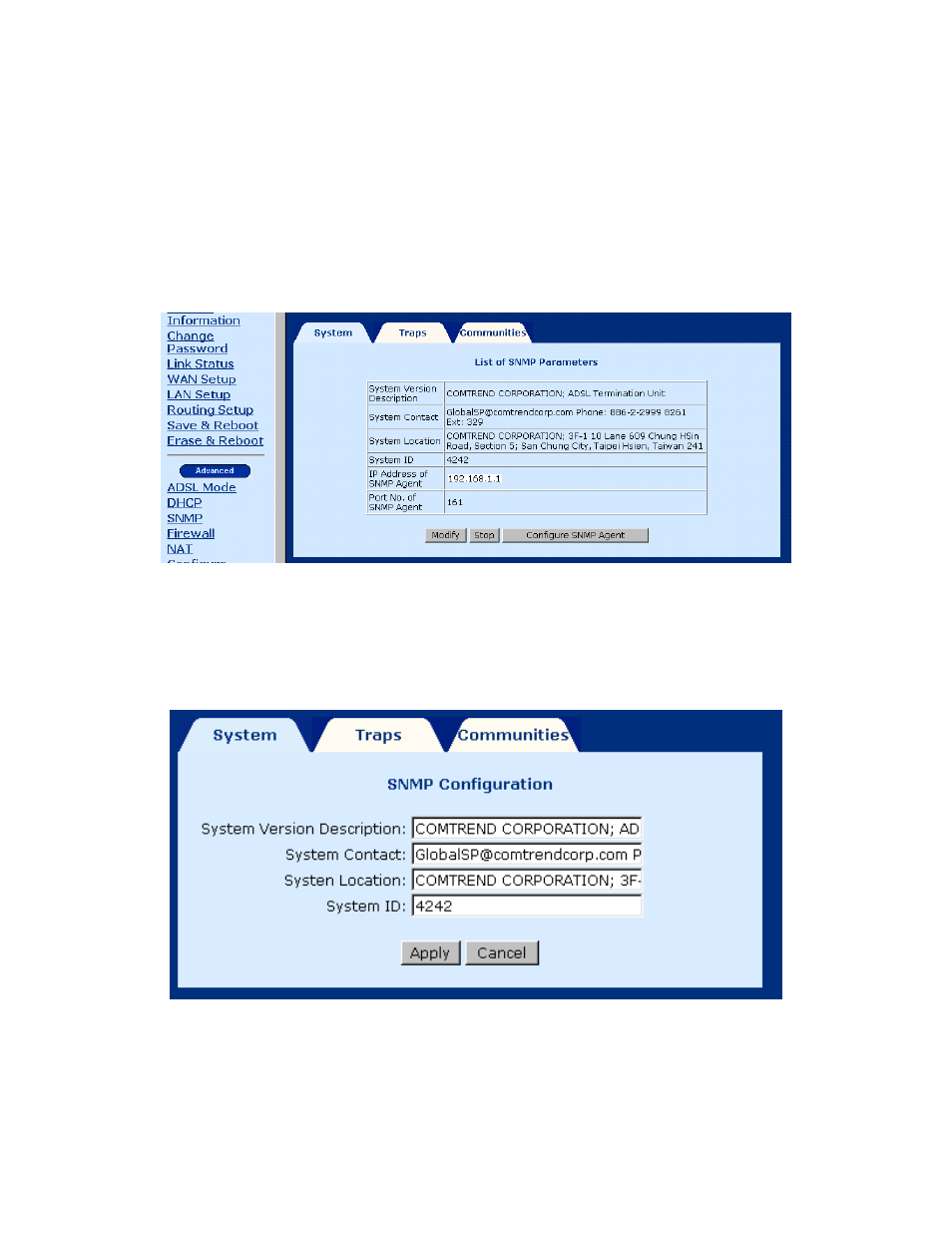

router. To configure the SNMP parameters, click on the SNMP button on the Advanced menu
bar. The window displays the SNMP parameters.
5.5.1 Modifying SNMP Parameters
To modify the SNMP parameters, click on the Modify button at the bottom of the screen. After
filling in the fields, click Apply to submit the settings.
