6

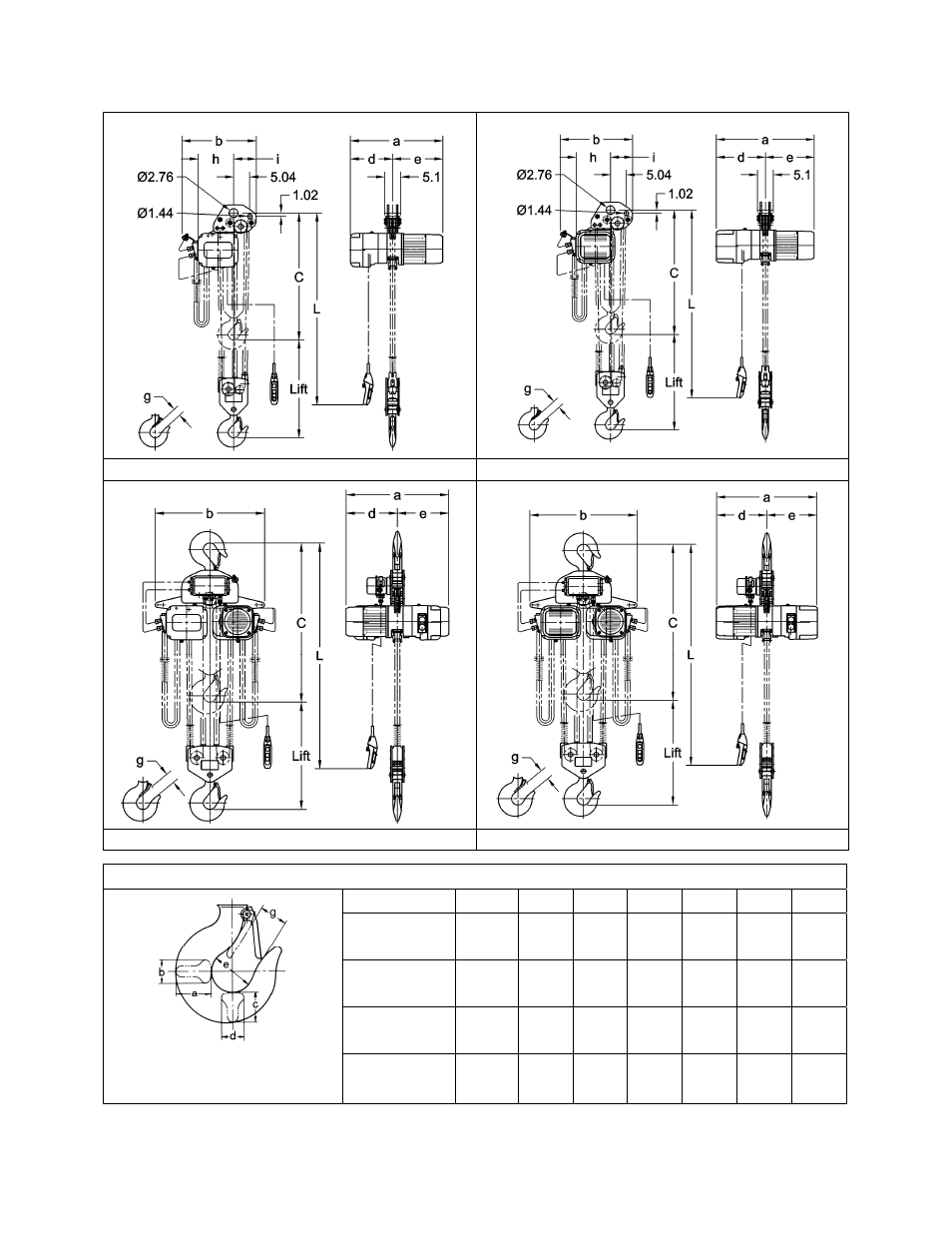

Figure 2-1 – NER2080S Figure 2-2 – NER2080SD
Figure 2-3 – NER2100S Figure 2-4 – NER2100SD
Table 2-3 Hook Dimensions*
T = Top Hook
B = Bottom Hook
Units = in.(mm)
Capacity Code Hook a b c d e g
080S B
3.3
(83.5)
2.2
(55.0)
2.9
(73.0)
1.9
(48.0)
3.3
(85.0)
2.4
(62.0)
100L, 100S T & B
3.3
(83.5)
2.2
(55.0)
2.9
(73.0)
1.9
(48.0)
3.3
(85.0)
2.4
(62.0)
150S T & B
4.1
(104)
2.8
(70.0)
3.4
87.0)
2.4
(60.0)
3.9
(100.0)
3.1
(79.0)
200S T & B
4.6
(118)
3.3
(83.0)
3.9
(99.5)
2.8
(70.0)
4.3
(110.0)
3.4
(86.0)
*Refer to ER2OM Section 5.7 for inspection dimensions and limits.
