Model OFE/OFG/OEA/OGA-341, 342
2-18. HEATING
CONTACTORS
(ELECTRIC)
(Continued)
To avoid electrical shock, make connections before
applying power, take reading, and remove power before
removing meter leads. The following checks are
performed with the wall circuit breaker closed and the
main power switch in the ON position.
1. Re-apply power to unit and turn power switch to ON.
2. Using illustrations from previous page, check voltage as
follows:
Test Points Results
Heat Contactor
From terminal 34 to 35 The voltage should read
From terminal 35 to 36 the same at each terminal
From terminal 34 to 36
Test Points
Primary Contactor
From terminal 27 to 28 It should correspond to the
From terminal 28 to 29 voltage stated on the data
From terminal 27 to 29 plate.
Replacement If neither contactor is defective it must be replaced as follows:
(Heat Contactor)
To avoid electrical shock or property damage, move the
power switch to OFF and disconnect main circuit
breaker, or unplug cord at wall receptacle, to the frypot
to be worked on. Be aware the other control on 2-frypot
units will have power.

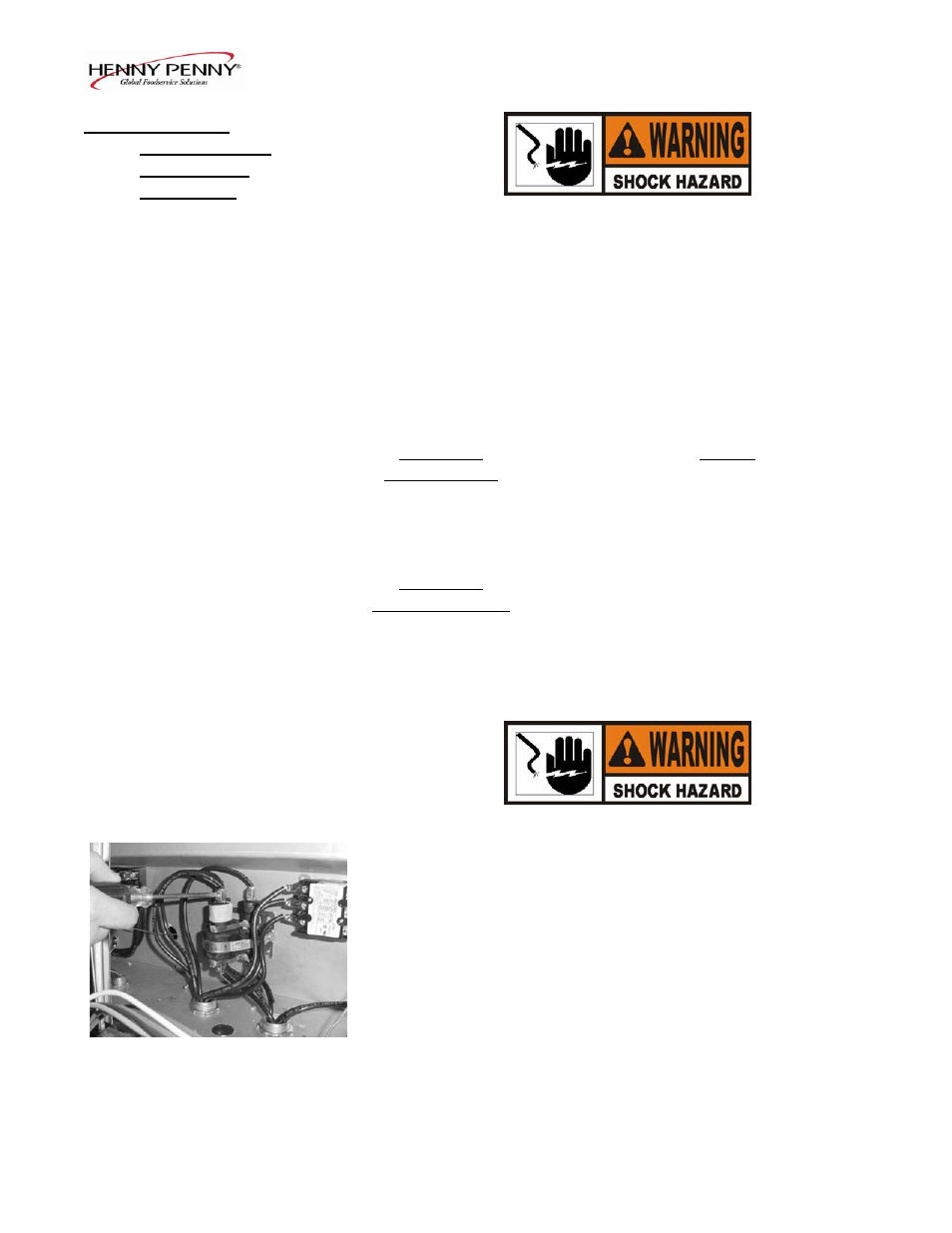

1. Remove only the wires directly connected to the contactor
Figure 2-54 being replaced. Label the wires for replacement. Figure 2-54.
