3 598-1343-00
+/- 4°
Mount the Light Control
❒ Align the light control cover plate and cover plate
gasket and the junction box. Insert and tighten the
mounting screws.
❒ If not installed on a weatherproof box or if an adaptor
plate is used, caulk the wall plate and mounting
surface with silicone weather sealant.

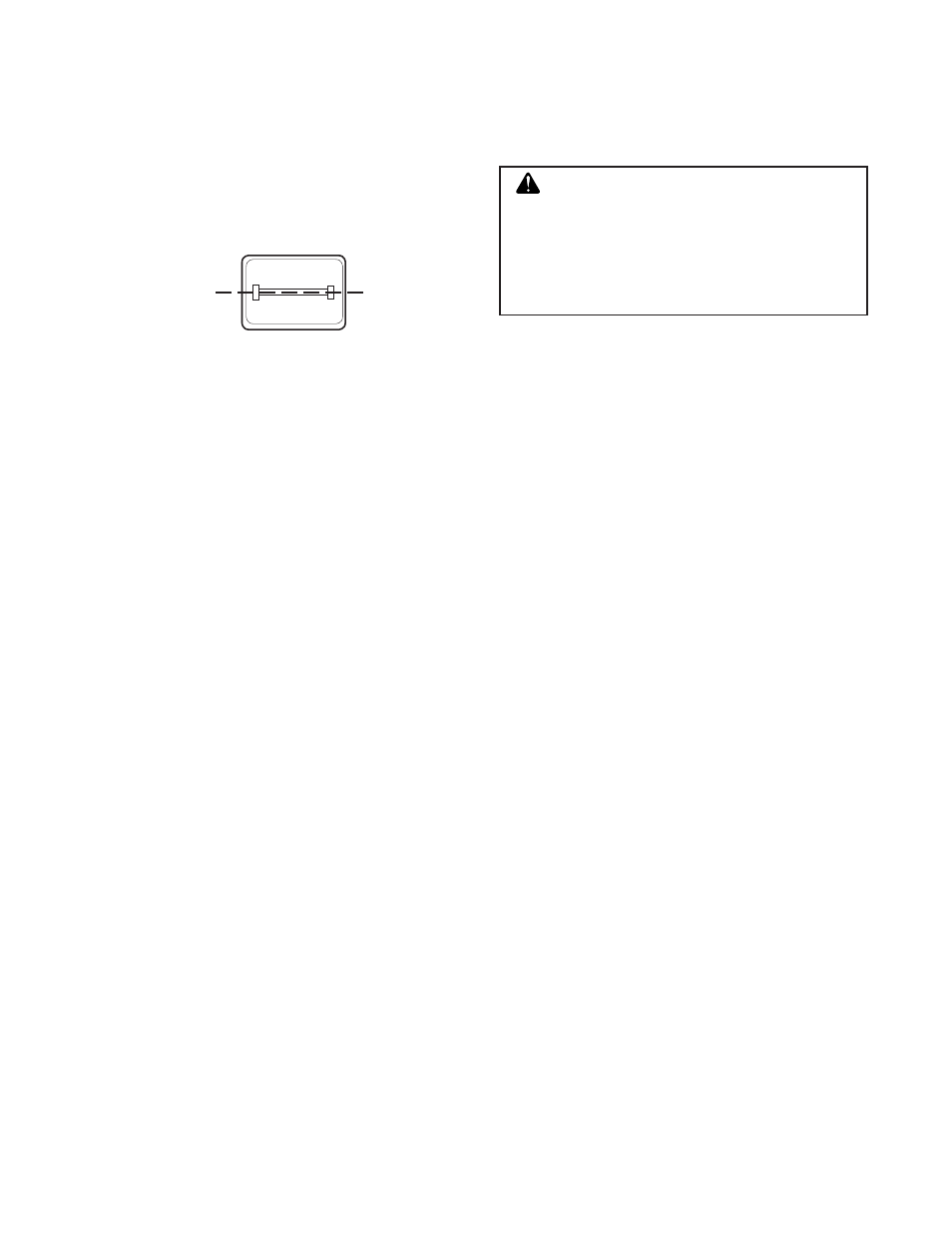

The halogen light must be
mounted horizontally (+/- 4°).
MOUNT HORIZONTALLY
Bulb Installation and Re-lamping
❒ When re-lamping, turn power off and let the fixture
cool.
❒ Remove glass cover and remove the old bulb by
pushing the bulb towards the right until the left side
of the bulb is clear of the left socket.
❒ To insert the new bulb, push the bulb into the right
socket so the bulb fits completely into the left
socket.
❒ Check that the bulb is seated properly.
❒ Re-install the glass cover.
For proper operation and safety, the light fixture must
be above the sensor and the sensor head must be
rotated so that the controls are on the bottom.
CAUTION: To Avoid Fire Or Burn Hazards:
• Allow fixture to cool before touching. The bulb and
the fixture operate at high temperatures.
• Keep fixture at least 2" (51 mm) from combustible ma-
terials. Do not aim at objects closer than 3 ft. (1 m).
• Re-lamp with type T halogen, 500 W max., 120 VAC
lamp only.
