Havis-Shields 1996-2008 Crown Victoria Driver and Passenger - Trunk Side Mounts C-TSM-CV-P - Manual (Page 2)

C-TSM-CV-P_INST_4-08
2

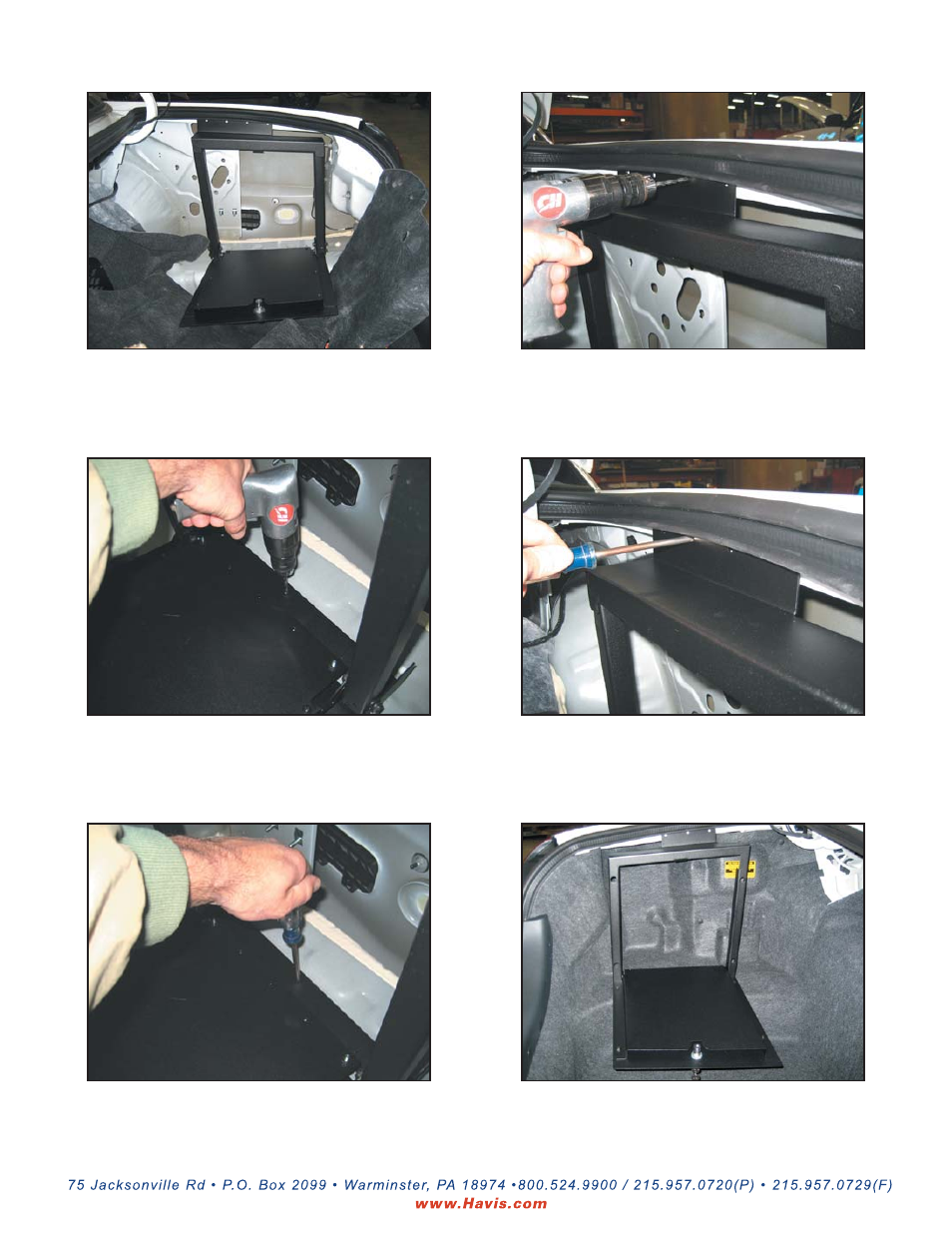

Position frame assembly as shown.
Trunk liner does not have to be removed, but
you may want to cut it as needed to improve
access for routing wires.
Installation:
Top frame mount attachs to the trunk
gasket mounting fl ange.
Drill three holes with a 3/16” (.187”) drill bit.
Bottom frame mount attaches to the trunk
side fl oor. Drill three pilot holes with a 1/8”
(.125”) drill bit.
* Always check under fl oor before drilling *
Attach top frame with three (3) - 10/32” x
1/2” machine screws and keps nuts.
Attach bottom frame with three (3) - # 10 x
3/4” sheet metal screws.
Driver side Trunk Side Mount complete.
Install electrical components as desired.
