C-VS-1300-TBZ_INST_9-07 3

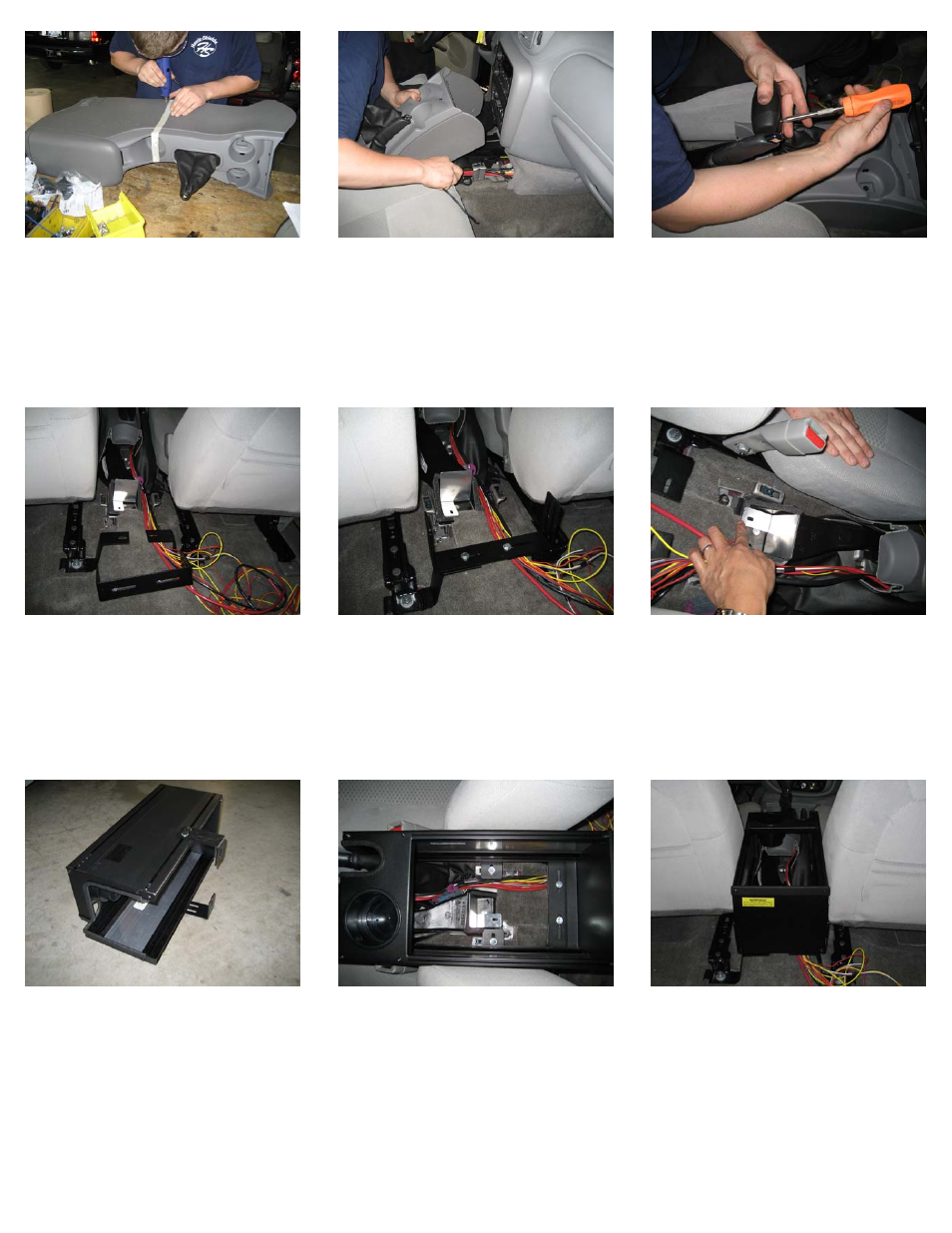

Extend cut line on console sides.
Carefully cut off back console
section. (Jig saw, Air saw, Dremel
or Air drill)
Carefully reinstall front console
section.
(Reattach Traction Control Plug)
Reattach shift lever “T” handle.
Remove inboard rear seat nuts.
(15mm) Place new rear hump
brackets on seat studs under seat
brackets.
Attach bail bracket onto rear hump
brackets with ¼ x ¾ bolts.
Note: You may need to bend hump
brackets slightly forward.
Place duct block off plate in duct
opening and screw down with #10 x
½” sheet metal screw.
Attach “L” mount brackets to new
console lower side tracks with ¼ x
½ bolts and washers.
**Leave loose to aid in positioning.
Place new console between seats
and position “L” mount brackets
onto OEM bracket. Attach with
1/4” x 3/4” bolts.
Position console housing as desired
and tighten all mount hardware.
**Check shift lever in rear position.
