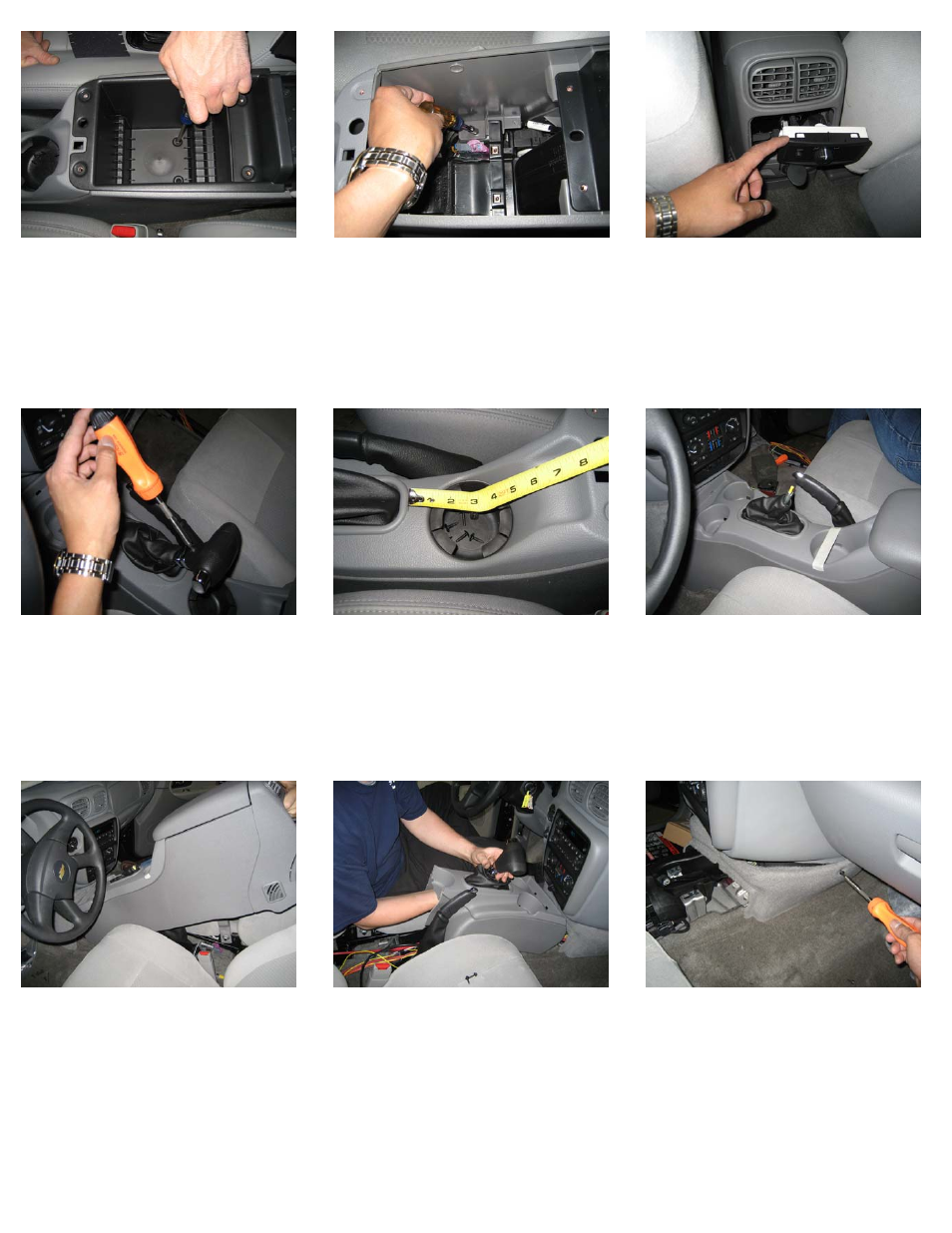

Remove six phillips screws that hold
inner storage pocket. Remove
storage pocket and arm rest
assembly.
Remove main console screws. Unplug wires for rear controls.
Remove shift lever “T” knob.
(T15 Torx)
Measure approximately 3 ½” back
from shift lever boot.
Mark Measurement with tape.
Position shift lever in drive or
further back. Remove entire
console assembly.
Note: In order to remove console,
you must reach up inside the shifter
boot and disconnect the traction
control plug.
Remove front trim to aid in running
additional wiring.
