Special Notes: This unit complies with ANSI Z124.2, ASTM F462, ASTM E84,
UPC, SBCCI, NAHB.
Warranty: Gelcoat models have a 3 year limited warranty. Acrylic models have a
5 year limited warranty. Pumps, parts, and accessories 1 year
limited warranty. For further details please refer to the complete warranty section.
Due to the nature of the materials, dimensions may vary +/- 1/2”.
DRAWING REQUEST MUST BE MADE FOR PACKAGE 2
DRAWING AND BULIT TO ORDER UNITS.
717
G 4836 I
OD: 48” x 37.25” x 78”
WEIGHT: 170
LOAD FACTOR: 1.06
HANDED BY: CENTER DRAIN OR VALVE WALL
ADA / ANSI
Roll-In Showers
ONE-PIECE DOMED ACRYLIC
G 4836 IB

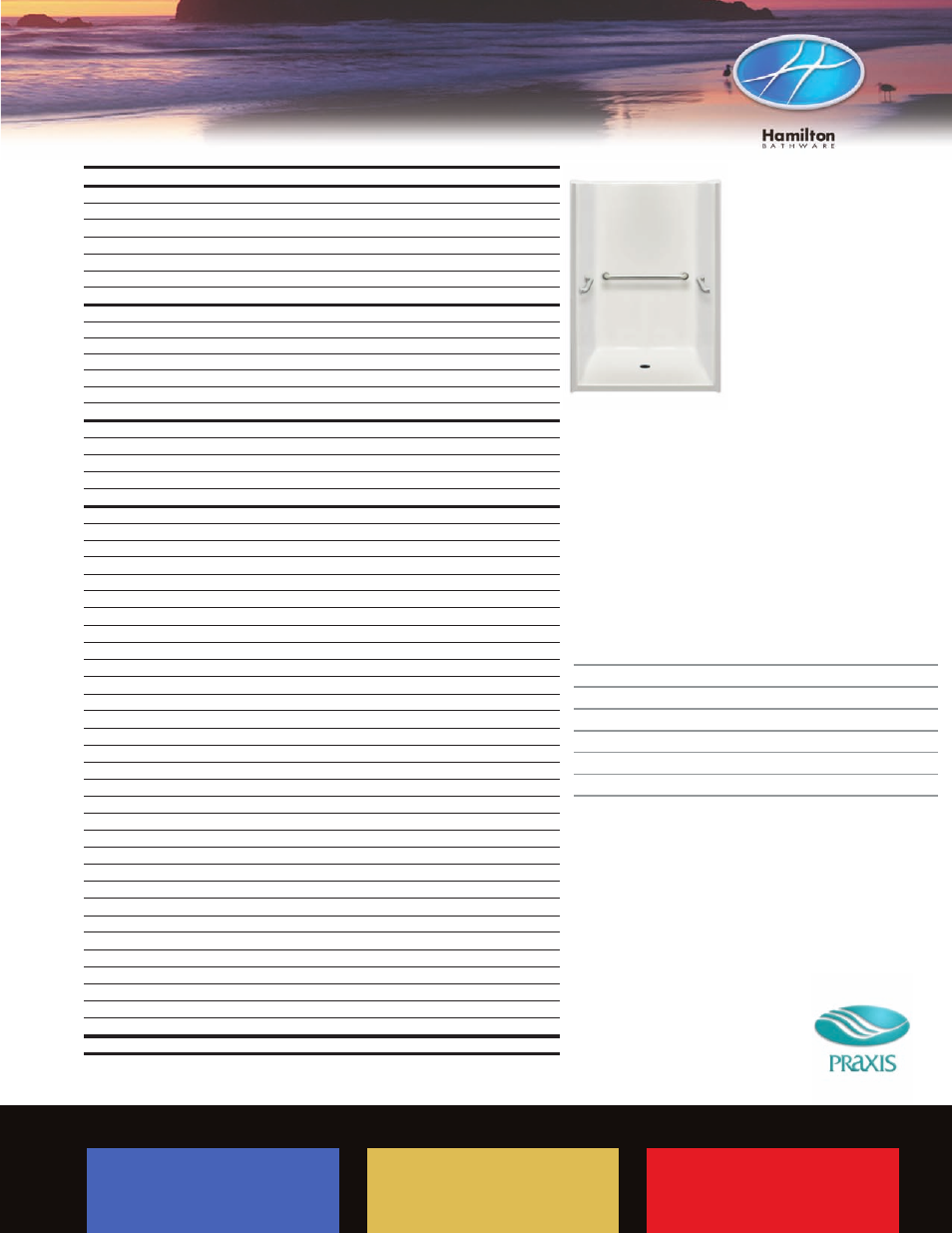

PHOTOGRAPH AT LEFT
ILLUSTRATES PACKAGE ONE
(HANDED BY CENTER DRAIN OR
VALVE WALL)
Sanitary Grade
Polyester Gelcoat
Three Year Warranty
Primary Applications:
• Healthcare
• Assisted Living
Hamilton Bathware/Praxis Companies, LLC.
435 Industrial Road, Savannah • Tennessee 38372 • Customer Service: 800.326.5489 • Fax: 888.246.0466 • www.hamiltonbathware.com
Product Availability
Hamilton Northeast
STD-STANDARD LEADTIME
Product Availability
Hamilton Mid-America
STD-STANDARD LEADTIME
Product Availability
Hamilton South
NA-NOT AVAILABLE
Commercial Showers & Tub Showers
48” Gelcoat Shower
Accessible Showers ONE-PIECE GELCOAT
717- NO MODIFICATIONS TO PACKAGES. FOR BUILT TO ORDER UNIT, SELECT BASE UNIT AND ACCESSORIES.
PKG ONE-ACCESSIBLE: G 4836 IB List: $1693
1.75” BF THRESHOLD MUDSET
Handed by CENTER DRAIN OR VALVE WALL L/R WHITE POLYESTER GELCOAT FINISH
Factory Installed Accessories (VALVE/SHOWER KIT NOT INCLUDED IN PKG1)
S-BAR 20" X 1.5" SMOOTH SS
S-BAR 20" X 1.5" SMOOTH SS
S-BAR 30" X 1.5" SMOOTH SS
PKG TWO-ACCESSIBLE: G 4836 IBS List: $2411
1.75” BF THRESHOLD MUDSET
Handed by VALVE WALL L/R WHITE POLYESTER GELCOAT
Factory Installed Accessories (VALVE/SHOWER KIT NOT INCLUDED IN PKG2)
S-BAR 20" X 1.5" SMOOTH SS
S-BAR 20" X 1.5" SMOOTH SS
SEAT 28.5" X 21" FRAMELESS WHITE HDPE
B U I L D T O O R D E R B A S E P L U S A C C E S S O R I E S
BASE UNIT 1:
G 4836 I List: $1456
SPECIFY THRESHOLD HEIGHT MUDSET
Handed by CENTER DRAIN OR VALVE WALL L/R
Reinforced for Standard Accessories
BASE UNIT OPTIONAL ACCESSORIES List:
FINISHES
STANDARD FINISH- POLYESTER GELCOAT FINISH: WHITE, BONE, BISCUIT $0
GRAB BARS
S-BAR 20" X 1.5" SMOOTH SS $110
S-BAR 20" X 1.25" SMOOTH WHITE $151
S-BAR 20" X 1.25" PEENED SS $113
S-BAR 30" X 1.5" SMOOTH SS $121
S-BAR 30" X 1.25" SMOOTH WHITE $158
S-BAR 30" X 1.25" PEENED SS $129
STANDARD SEATS
SEAT 28.5" X 21" FRAMELESS WHITE HDPE $723
SEAT 28.5" X 21" FRAMELESS WHITE PADDED $723
SEAT 28.5" X 21" FRAMELESS WOODGRAIN PHENOLIC $723
FACTORY MODIFICATIONS
MOD VALVE DRILLING - SPECIFY HOLE SIZE $56
MOD 1.75” THRESHOLD $111
MOD INSTALL STANDARD SYMMONS VALVE PACKAGE $633
MOD INSTALL HANS GROHE VALVE PACKAGE (XLT) $501
MOD INSTALL POWERS VALVE PACKAGE (XLT) $656
MOD INSTALL 30" SLIDE BAR / HS KIT $411
MOD ARMORSHIELD P3 PROTECTION $149
MOD TUBGUARD P3 PROTECTION 48" BF $56
CURTAIN RODS
ROD CURTAIN ROD U CUP HOLDER PAIR $14
ROD 1" OD 20 GAUGE SS $71
ROD 1" OD 20 GAUGE WHITE $138
FIELD INSTALLED ACCESSORIES
LOOSE CURTAIN PREMIUM 54" X 72" WHITE NYLON WTD $180
LOOSE CURTAIN HEAVY DUTY 54" X 72" WHITE VINYL WTD $111
LOOSE TUBGUARD P3 PRO FIELD INST 48" BF $74
ADDITIONAL ACCESSORIES AND SERVICES MAY BE AVAILABLE UPON REQUEST
*UNIT IS NOT AVAILABLE IN THE SOUTHERN MARKET.
SEE COMPARABLE UNIT G 4897 IB.
