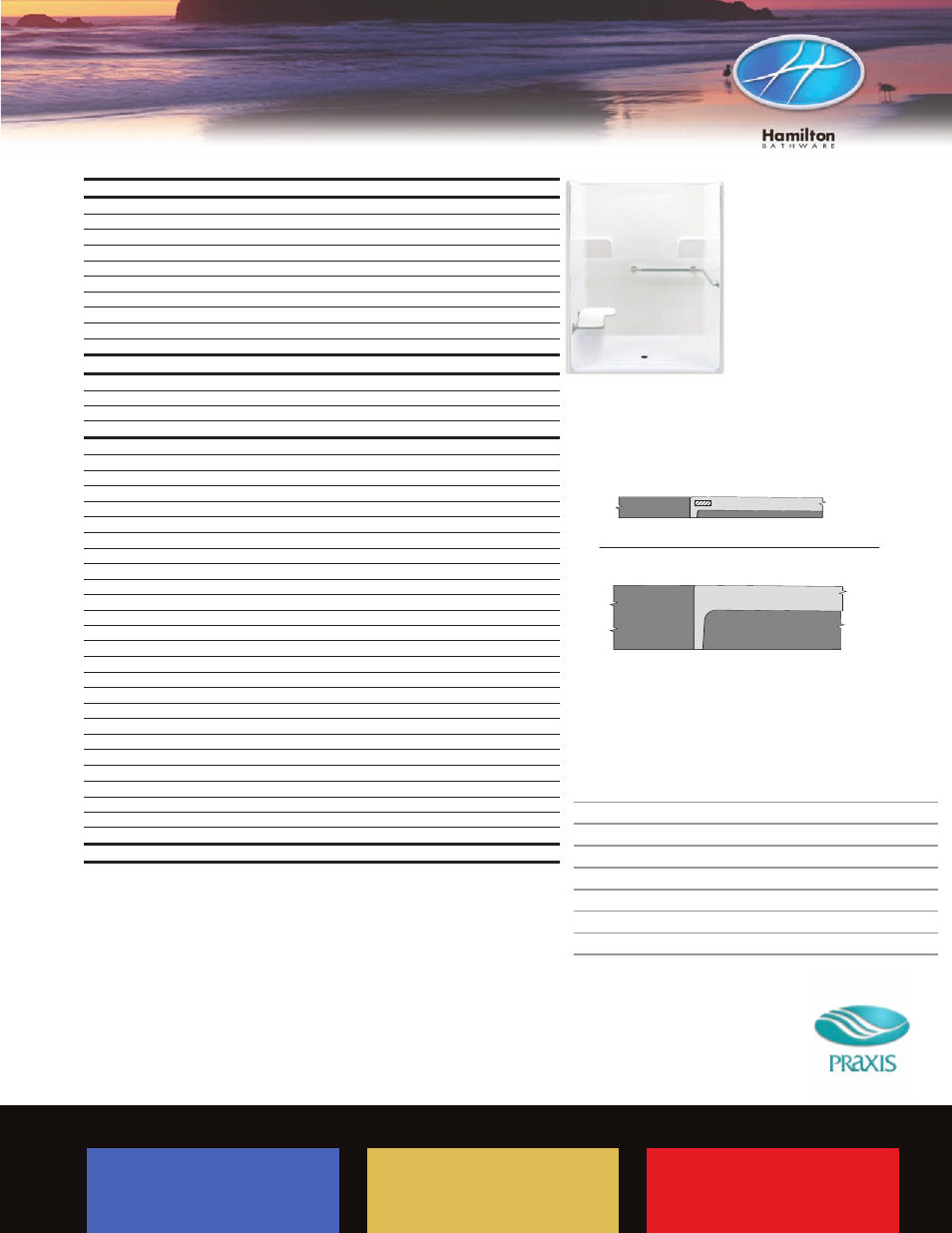

Hamilton Electronics A 6436 IBS - Manual (Page 27)

Special Notes: This unit complies with MAS, ANSI Z124.2, NAHB, UPC, ASTM F462, ASTM E84.
Warranty: Gelcoat models have a 3 year limited warranty. Acrylic models have a 5 year limited warranty.
Pumps, parts, and accessories 1 year limited warranty. For further details please refer to the complete
warranty section.
Due to the nature of the materials, dimensions may vary +/- 1/2”.
DRAWING REQUEST MUST BE MADE FOR PACKAGE 2 DRAWING AND
BULIT TO ORDER UNITS.
706B rev. 09/25/07
G 6239 I MAS
OD: 62” x 39.5” x 78.75”
ID: 60” x 36” CENTER POINT
WEIGHT: 200
LOAD FACTOR: 2
HANDED BY: CENTER DRAIN OR SEAT L/R
ADA / ANSI
Roll-In Showers
ONE-PIECE DOMED ACRYLIC
G 6239 IBS MAS
PHOTOGRAPH AT LEFT
ILLUSTRATES PACKAGE ONE
(HANDED BY SEAT LEFT)
Sanitary Grade Polyester
Gelcoat
Three Year Warranty
Primary Applications:
• Healthcare
• College Dormitory
• Hospitality
• Schools
• Assisted Living
MAS Roll-In Showers ONE-PIECE GELCOAT
706B- NO MODIFICATIONS TO PACKAGES. FOR BUILT TO ORDER UNIT, SELECT BASE UNIT AND ACCESSORIES.
PKG ONE-MAS: G 6239 IBS MAS List: $1951
.75" NO RECESS BF THRESHOLD MUDSET
Handed by SEAT L/R WHITE POLYESTER GELCOAT FINISH
Factory Installed Accessories (VALVE/SHOWER KIT NOT INCLUDED IN PKG1)
L-BAR 37" X 33" X 1.25" PEENED SS
SEAT 32" X 21" FRAMELESS WHITE PADDED FOLD UP
FOR MAS COMPLIANCE WITH SEAT: NO CURB ALLOWED, INSTALLED ACCESSORIES MUST INCLUDE: PEENED OR
TEXTURED L-BAR, PADDED L-SEAT, PRESSURE BALANCING MIXING VALVE, HAND HELD SHOWER WITH SLIDE BAR
(BACK WALL, WITH IN REACH OF SEATED USER), VACUUM BREAKER AND 60" HOSE. UNIT AND ACCESSORIES
INSTALLED PER MAS & PRAXIS INSTALLATION & WARRANTY GUIDELINES.
B U I L D T O O R D E R B A S E P L U S A C C E S S O R I E S
BASE UNIT 1:
G 6239 I MAS List: $978
SPECIFY THRESHOLD HEIGHT MUDSET
Handed by SEAT L/R
Reinforced for Standard Accessories
BASE UNIT OPTIONAL ACCESSORIES List:
FINISHES
STANDARD FINISH- POLYESTER GELCOAT FINISH: WHITE, BONE, BISCUIT $0
GRAB BARS
L-BAR 37" X 33" X 1.25" PEENED SS $225
L-BAR 37" X 33" X 1.25" TEXTURED WHITE CC $291
INSIDE CURTAIN LINE SEATS (REVISED ADA-ABA 2004)
SEAT 32" X 21" FRAMELESS WHITE PADDED FOLD UP $747
FACTORY MODIFICATIONS
MOD VALVE DRILLING - SPECIFY HOLE SIZE $56
MOD 2" BF THRESHOLD $0
MOD .75" NO RECESS BF THRESHOLD $111
MOD INSTALL STANDARD SYMMONS VALVE PACKAGE $633
MOD INSTALL HANS GROHE THERMOSTATIC VALVE PACKAGE (XLT) $501
MOD INSTALL POWERS VALVE PACKAGE (XLT) $656
MOD INSTALL 30" SLIDE BAR / HS KIT $411
MOD ARMORSHIELD P3 PROTECTION $149
MOD TUBGUARD P3 PROTECTION 60" X 36" BF $86
CURTAIN RODS
ROD CURTAIN ROD U CUP HOLDER PAIR $14
ROD 1" OD 20 GAUGE SS $71
ROD 1" OD 20 GAUGE WHITE $138
FIELD INSTALLED ACCESSORIES
LOOSE CURTAIN PREMIUM 66" X 72" WHITE NYLON WTD $180
LOOSE CURTAIN HEAVY DUTY 66" X 72" WHITE VINYL WTD $119
LOOSE TUBGUARD P3 PRO FIELD INST 60" X 36" BF $74
ADDITIONAL ACCESSORIES AND SERVICES MAY BE AVAILABLE UPON REQUEST
.75” NO RECESS THRESHOLD
LESS EASY BASE
MUD SET REQUIRED REQUIRES .75”
FINISHED FLOOR TO
MEET ADA
.75” NO RECESS THRESHOLD
WITH EASY BASE
NO MUD SET REQUIRED REQUIRES .75”
FINISHED FLOOR TO
MEET ADA
MUD SET REQUIRED
1.25” RECESS THRESHOLD
LESS EASY BASE
REQUIRES 1.25”
RECESSED FLOOR TO
MEET ADA
MUD SET REQUIRED
2.0” RECESS THRESHOLD
LESS EASY BASE
ADA ROLL-IN SHOWER THRESHOLD REQUIREMENT
REQUIRES 2.0”
RECESSED FLOOR TO
MEET ADA
NO CURB ALLOWED
NO CURB ALLOWED
NO CURB ALLOWED
NO CURB ALLOWED
FLOOR
FLOOR
FLOOR
FLOOR
SHOWER
SHOWER
SHOWER
SHOWER
ADHESIVE REQUIRED
MAS Roll-In Shower Threshold Requirements:
.75” NO RECESS THRESHOLD
LESS EASY BASE
MUD SET REQUIRED REQUIRES .75”
FINISHED FLOOR TO
MEET ADA
.75” NO RECESS THRESHOLD
WITH EASY BASE
NO MUD SET REQUIRED REQUIRES .75”
FINISHED FLOOR TO
MEET ADA
MUD SET REQUIRED
1.25” RECESS THRESHOLD
LESS EASY BASE
REQUIRES 1.25”
RECESSED FLOOR TO
MEET ADA
MUD SET REQUIRED
2.0” RECESS THRESHOLD
LESS EASY BASE
ADA ROLL-IN SHOWER THRESHOLD REQUIREMENT
REQUIRES 2.0”
RECESSED FLOOR TO
MEET ADA
NO CURB ALLOWED
NO CURB ALLOWED
NO CURB ALLOWED
NO CURB ALLOWED
FLOOR
FLOOR
FLOOR
FLOOR
SHOWER
SHOWER
SHOWER
SHOWER
ADHESIVE REQUIRED
Hamilton Bathware/Praxis Companies, LLC.
435 Industrial Road, Savannah • Tennessee 38372 • Customer Service: 800.326.5489 • Fax: 888.246.0466 • www.hamiltonbathware.com
Product Availability
Hamilton Northeast
STD-STANDARD LEADTIME
Product Availability
Hamilton Mid-America
STD-STANDARD LEADTIME
Product Availability
Hamilton South
STD-STANDARD LEADTIME
Commercial Showers & Tub Showers
62” Gelcoat Shower
