Special Notes: This unit complies with TAS, ANSI Z124.2, ICC/ANSI A117.1, UPC, HUD, ASTM F462,
ASTM E84, ADA, ABA, BOCA, SBCCI, NAHB.
Warranty: Gelcoat models have a 3 year limited warranty. Acrylic models have a 5 year limited
warranty. Pumps, parts, and accessories 1 year limited warranty. For further details please refer to the
complete warranty section.
Due to the nature of the materials, dimensions may vary +/- 1/2”.
DRAWING REQUEST MUST BE MADE FOR PACKAGE 2 DRAWING AND
BULIT TO ORDER UNITS.
701B rev. 09/25/07

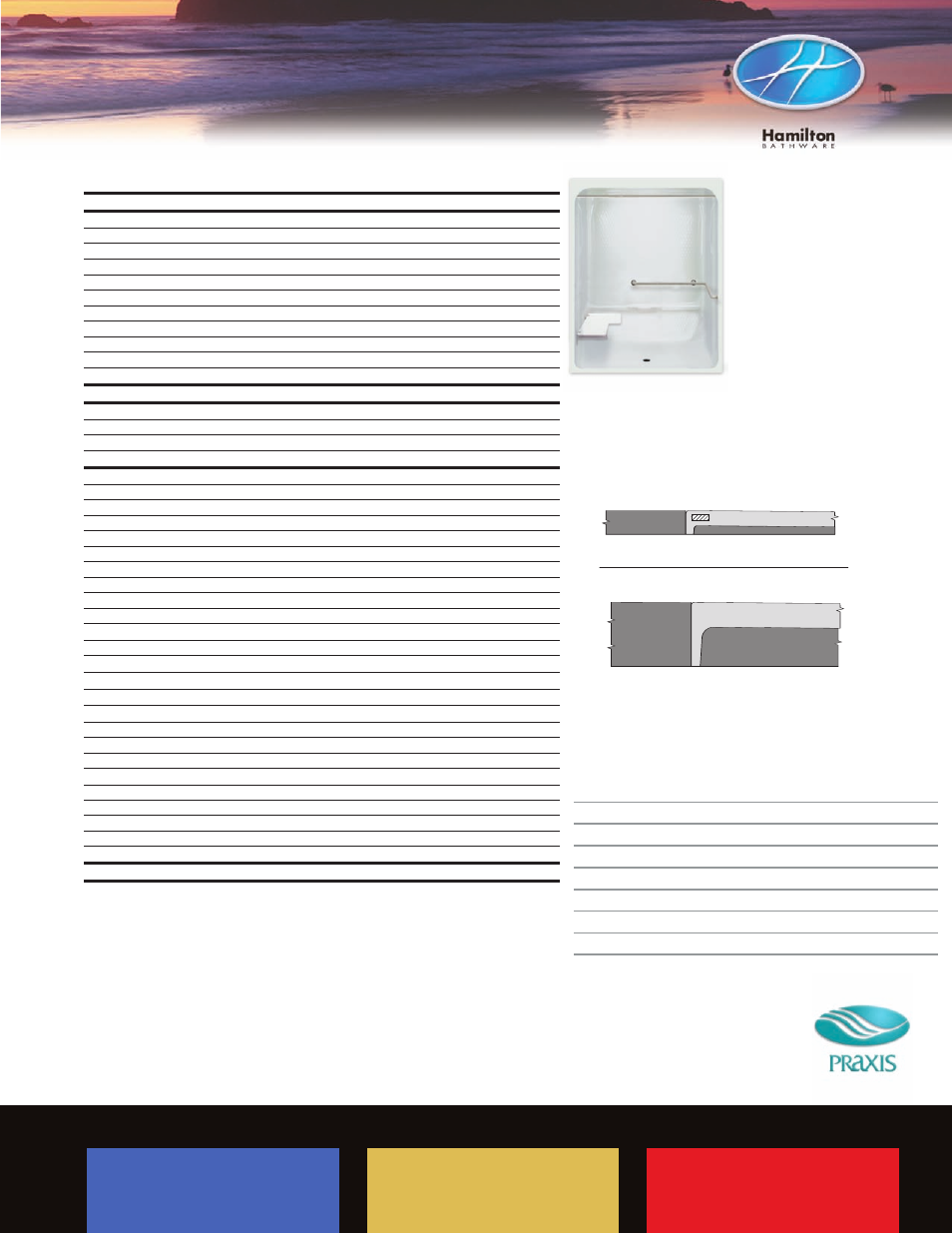

A 6436 I TAS
OD: 64.5” x 36.25” x 82.75”
ID: 60” x 36” CENTER POINT
WEIGHT: 255
LOAD FACTOR: 2
HANDED BY: SEAT L/R OR CENTER
A 6436 IBS TAS
PHOTOGRAPH AT LEFT
ILLUSTRATES PACKAGE ONE
(HANDED BY SEAT LEFT)
Premium Cast Acrylic
Five Year Warranty
Primary Applications:
• Healthcare
• College Dormitory
• Hospitality
• Schools
TAS Roll-In Showers ONE-PIECE DOMED ACRYLIC
701B- NO MODIFICATIONS TO PACKAGES. FOR BUILT TO ORDER UNIT, SELECT BASE UNIT AND ACCESSORIES.
PKG ONE-TAS: A 6436 IBS TAS List: $3219
.75" NO RECESS BF THRESHOLD MUDSET
Handed by SEAT L/R WHITE PREMIUM CAST ACRYLIC
Factory Installed Accessories (VALVE/SHOWER KIT NOT INCLUDED IN PKG1)
L-BAR 37" x 33" x 1.5" SMOOTH SS RADIUS
SEAT 34.5" X 21" FRAMELESS WHITE HDPE RAD FOLD UP
ROD 1" OD 20 GAUGE SS GROMMET STYLE
FOR TAS COMPLIANCE WITH SEAT: INSTALLED ACCESSORIES MUST INCLUDE: L-BAR, 34.5" L-SEAT,
PRESSURE BALANCING MIXING VALVE, HAND HELD SHOWER WITH SLIDE BAR (BACK WALL, WITH IN
REACH OF SEATED USER), VACUUM BREAKER & 60" HOSE. UNIT & ACCESSORIES INSTALLED PER TAS
& PRAXIS INSTALLATION & WARRANTY GUIDELINES.
B U I L D T O O R D E R B A S E P L U S A C C E S S O R I E S
BASE UNIT 1:
A 6436 I TAS List: $2185
SPECIFY THRESHOLD HEIGHT MUDSET
Handed by SEAT L/R OR CENTER
Reinforced for Standard Accessories
BASE UNIT OPTIONAL ACCESSORIES List:
FINISHES
STANDARD FINISH- PREMIUM CAST ACRYLIC: WHITE, BONE, BISCUIT $0
GRAB BARS
L-BAR 37" x 33" x 1.5" SMOOTH SS RADIUS $216
L-BAR 37" x 33" x 1.25" SMOOTH WHITE RADIUS $335
FULL DEPTH OF STALL SEATS (ADAAG 1991-2002)
SEAT 34.5" X 21" FRAMELESS WHITE HDPE RAD FOLD UP $747
SEAT 34.5" X 21" FRAMELESS WHITE PADDED RAD FOLD UP $747
SEAT 34.5" X 21" FRAMELESS WOODGRAIN PHENOLIC RAD FOLD UP $747
FACTORY MODIFICATIONS
MOD VALVE DRILLING - SPECIFY HOLE SIZE $56
MOD INSTALL STANDARD SYMMONS VALVE PACKAGE $633
MOD INSTALL HANS GROHE THERMOSTATIC VALVE PACKAGE (XLT) $501
MOD INSTALL POWERS VALVE PACKAGE (XLT) $656
MOD INSTALL 30" SLIDE BAR / HS KIT $411
MOD 2" BF THRESHOLD $0
MOD .75" NO RECESS BF THRESHOLD $111
MOD ARMORSHIELD P3 PROTECTION $149
CURTAIN RODS
ROD 1" OD 20 GAUGE SS GROMMET STYLE $71
ROD 1" OD 20 GAUGE WHITE GROMMET STYLE $138
FIELD INSTALLED ACCESSORIES
LOOSE CURTAIN PREMIUM 66" X 72" WHITE NYLON WTD $180
LOOSE CURTAIN HEAVY DUTY 66" X 72" WHITE VINYL WTD $119
ADDITIONAL ACCESSORIES AND SERVICES MAY BE AVAILABLE UPON REQUEST
TAS Roll-In Shower Threshold Requirements:
.75” NO RECESS THRESHOLD
LESS EASY BASE
MUD SET REQUIRED REQUIRES .75”
FINISHED FLOOR TO
MEET ADA
.75” NO RECESS THRESHOLD
WITH EASY BASE
NO MUD SET REQUIRED REQUIRES .75”
FINISHED FLOOR TO
MEET ADA
MUD SET REQUIRED
1.25” RECESS THRESHOLD
LESS EASY BASE
REQUIRES 1.25”
RECESSED FLOOR TO
MEET ADA
MUD SET REQUIRED
2.0” RECESS THRESHOLD
LESS EASY BASE
ADA ROLL-IN SHOWER THRESHOLD REQUIREMENT
REQUIRES 2.0”
RECESSED FLOOR TO
MEET ADA
NO CURB ALLOWED
NO CURB ALLOWED
NO CURB ALLOWED
NO CURB ALLOWED
FLOOR
FLOOR
FLOOR
FLOOR
SHOWER
SHOWER
SHOWER
SHOWER
ADHESIVE REQUIRED
.75” NO RECESS THRESHOLD
LESS EASY BASE
MUD SET REQUIRED REQUIRES .75”
FINISHED FLOOR TO
MEET ADA
.75” NO RECESS THRESHOLD
WITH EASY BASE
NO MUD SET REQUIRED REQUIRES .75”
FINISHED FLOOR TO
MEET ADA
MUD SET REQUIRED
1.25” RECESS THRESHOLD
LESS EASY BASE
REQUIRES 1.25”
RECESSED FLOOR TO
MEET ADA
MUD SET REQUIRED
2.0” RECESS THRESHOLD
LESS EASY BASE
ADA ROLL-IN SHOWER THRESHOLD REQUIREMENT
REQUIRES 2.0”
RECESSED FLOOR TO
MEET ADA
NO CURB ALLOWED
NO CURB ALLOWED
NO CURB ALLOWED
NO CURB ALLOWED
FLOOR
FLOOR
FLOOR
FLOOR
SHOWER
SHOWER
SHOWER
SHOWER
ADHESIVE REQUIRED
HDPE (high density polyethylene) seats used by Praxis Companies, LLC contain recycled materials.
Hamilton Bathware/Praxis Companies, LLC.
435 Industrial Road, Savannah • Tennessee 38372 • Customer Service: 800.326.5489 • Fax: 888.246.0466 • www.hamiltonbathware.com
