Page 48 September 1, 2008 Quadra-Fire · Topaz · 7009-113G
D.
Service Parts List
R
TOPAZ

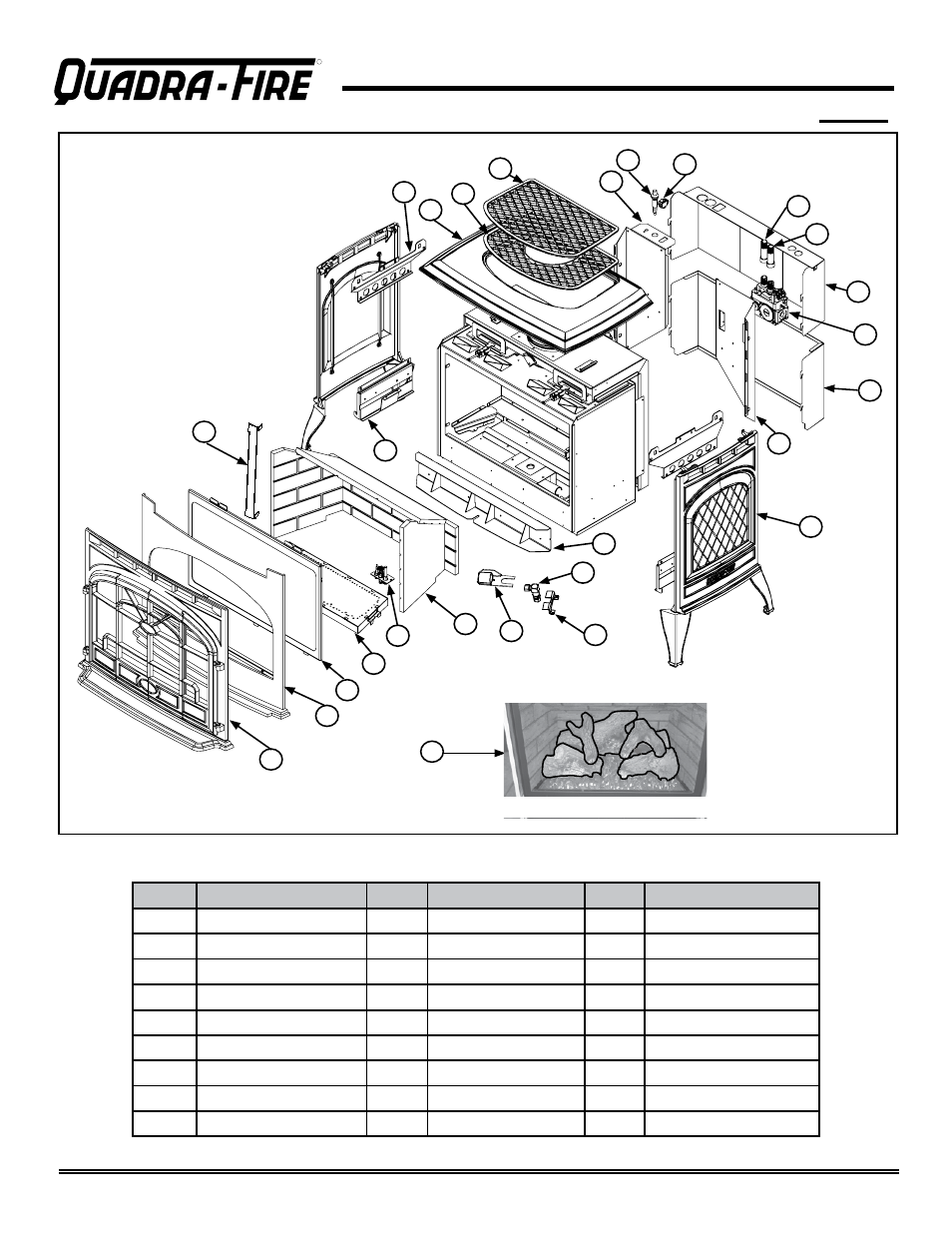

(NG, LP) Exploded Parts Diagram Beginning Manufacturing Date: 12-8-03
Ending Manufacturing Date:
Item # Description Item # Description Item # Description
1 Face Assembly, Quartet 10 Bulkhead 19 Switch, Rocker, ON/OFF
2 Face Assembly, Solitaire 11 Door Retainer Assembly 20 Igniter, Piezo
3 Door Assembly 12 Side Kit 21 Switch Bracket
4 Burner Assembly 13 Valve Bracket 22 Grille, Rear Vent
5 Pilot Assembly 14 Back Shield, Lower 23 Grille, Top Vent
6 Refractory Assembly 15 Valve, S.I.T. (NG or LP) 24 Top
7 Log Set 16 Back Shield, Upper 25 Cast Mounting Bracket, Top
8 Air Shutter Assembly 17 Knob, Extension, ON/OFF 26 Cast Mounting Bracket, Bottom
9 Bulkhead Stop 18 Knob, Extension, HI/LO 27 Brick Retainer
19
21
22
26
17
24
25
27
23
20
8
9
14
10
7
12
11
13
18
4
1
16
2
3
6
5
15
