September 1, 2008 Page 29 Quadra-Fire · Topaz · 7009-113G
8
Appliance Setup
A. Remove Shipping Materials
Remove shipping materials from inside or underneath the
firebox.
B. Top to Rear Vent Conversion

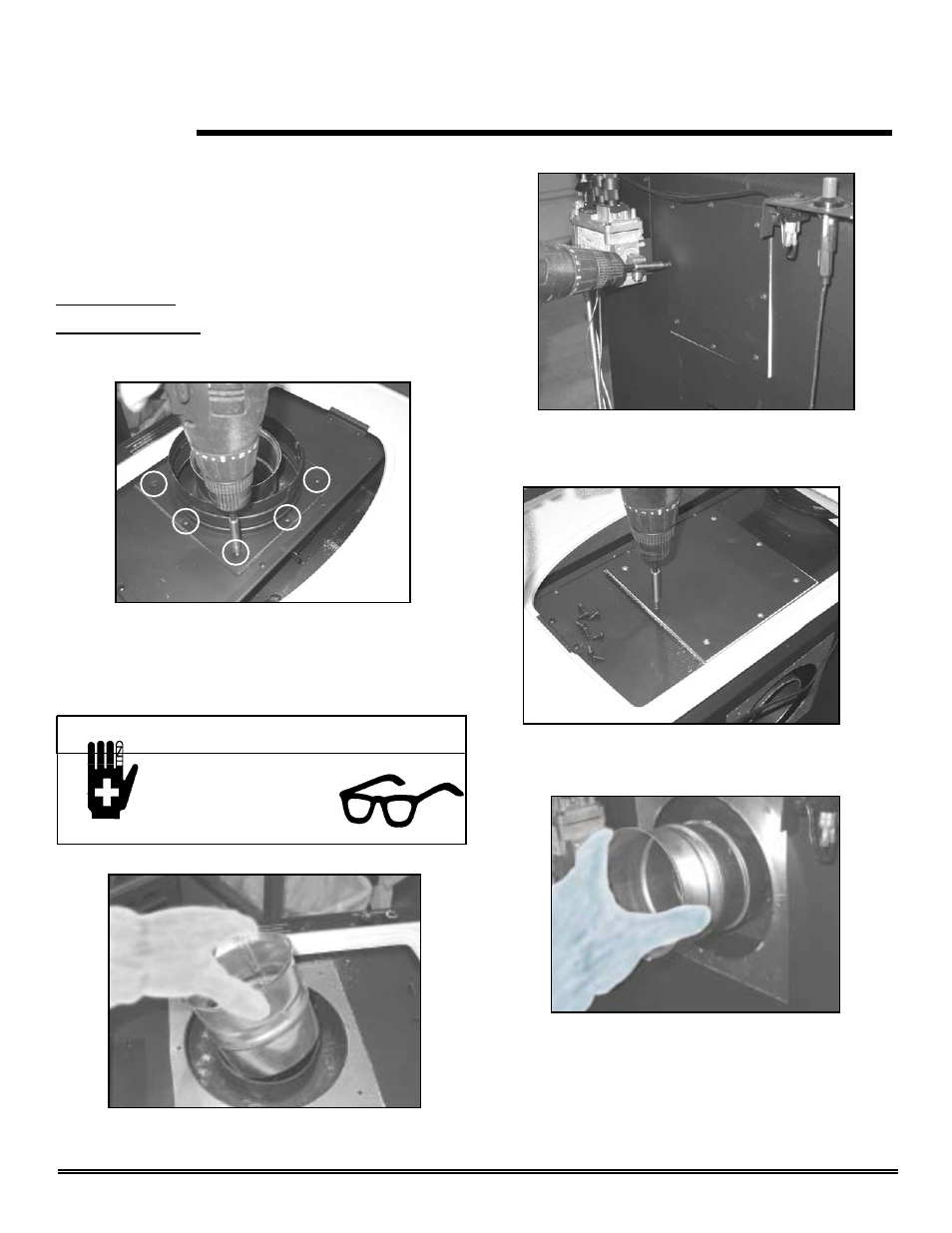

Figure 8.1 Remove top trivet, if installed. Remove vent pipe
adapter and gasket. If gasket breaks, apply high-tempera-
ture silicone to the bottom of the adapter before installing as
indicated in Figure 8.6.
Figure 8.2 Remove inner collar adapter
KIT CONTENTS: Rear vent grille.
TOOLS REQUIRED: Power drill; #2 Phillips bit;high-temp
silicone sealant (optional.)
Figure 8.3 Remove rear valve cover shield. Remove rear
access plate and gasket. Save the screws.
Figure 8.4 Place cover plate and gasket over top vent and
attach with the eight screws previously removed.
Figure 8.5 Insert inner collar adapter to rear vent flue.
CAUTION
Sharp Edges
• Wear protective gloves
and safety glasses during
installation.
