September 1, 2008 Page 33 Quadra-Fire · Topaz · 7009-113G

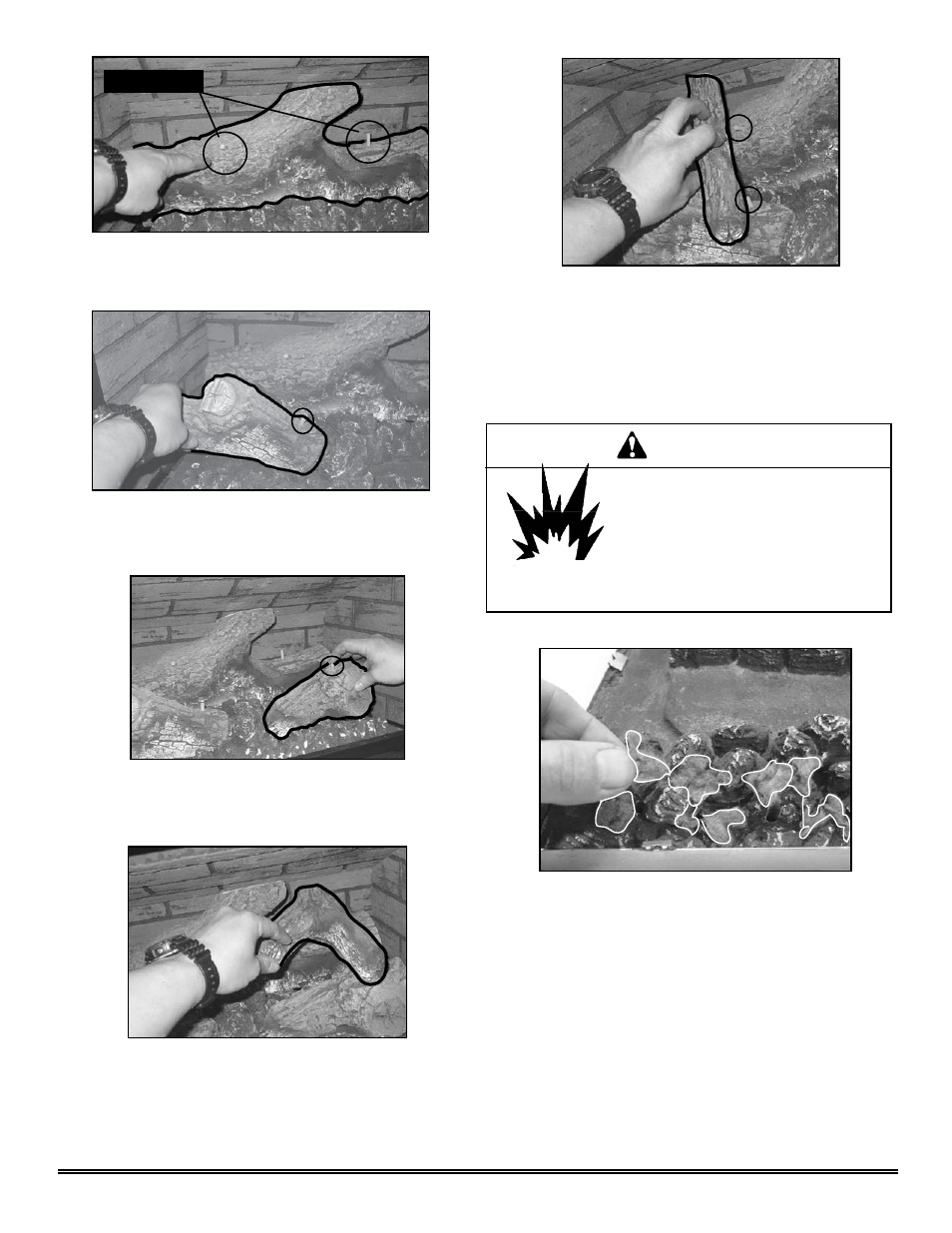

Figure 8.20 Insert locator pin into right front log. Insert rear
log onto log pan over stud.
Figure 8.22 Insert locator pin into right front log. Place right
front log on burner in the grooves provided on the burner
surface.
Locater Pins
Figure 8.23 Place right twig over the locator pins on the rear
log and the right front log.
Figure 8.24 Place left twig over locator pins on the rear log
and the left front log. To complete your log set applica-
tion reinstall the glass and the front of the unit.
H. Mineral Wool
• Follow ember placement instructions in
manual.
• Do NOT place embers directly over
burner ports.
• Replace ember material annually.
Explosion Risk.
WARNING
Improperly placed embers interferes with proper burner
operation.
Figure 8.25 Place individual pieces of embers in front of and
around the gas log where they can be seen. Space them so
that gas can contact them on all sides. Avoid stacking the
embers on top of each other.
NOTE: Do not block gas ports.
Figure 8.21 Insert locator pin into left front log. Place left
front log on burner in the grooved provided on the burner
surface.
