September 1, 2008 Page 31 Quadra-Fire · Topaz · 7009-113G

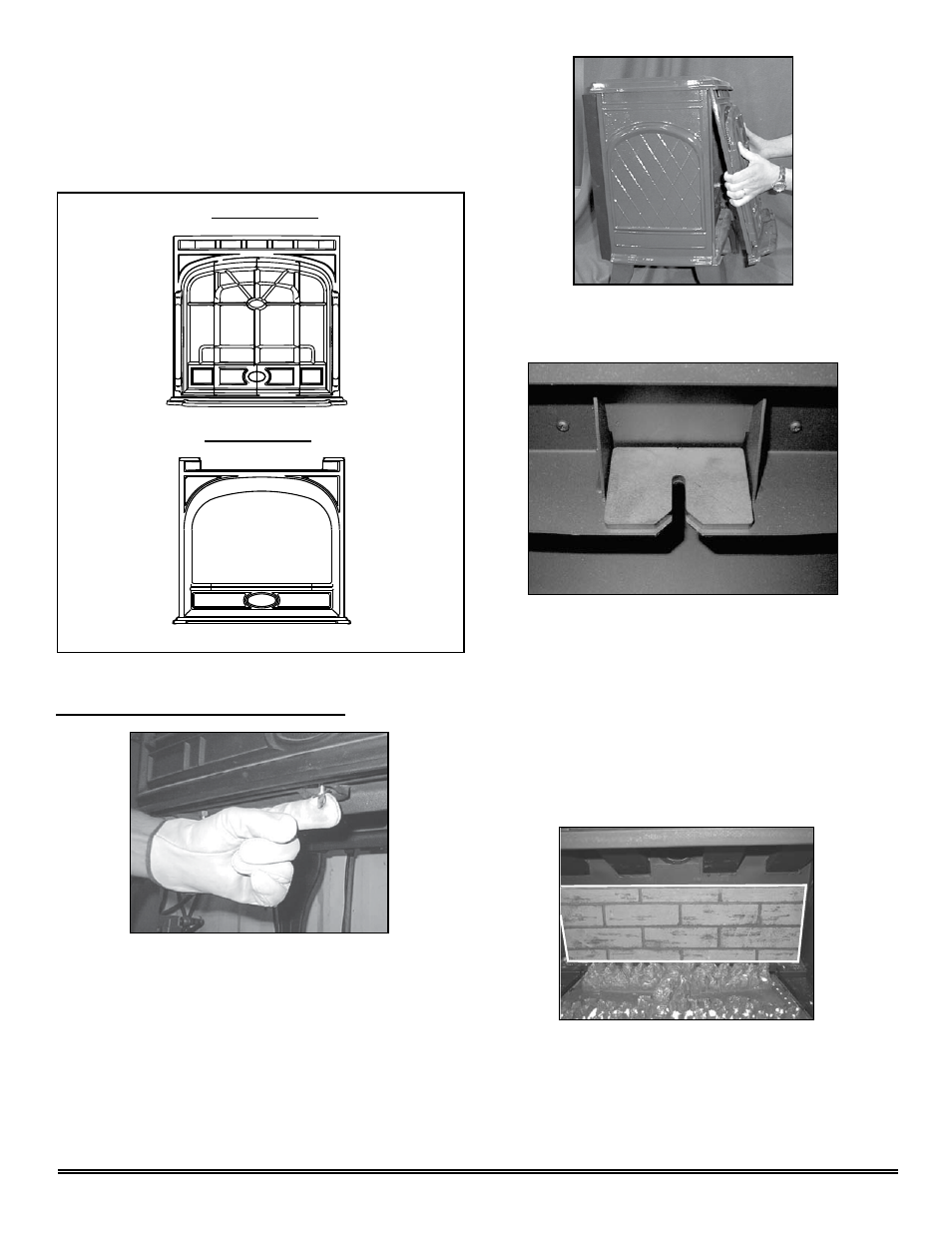

E. Front Installation
Fronts shipped attached to face
Figure 8.12 To remove the face, loosen the thumb bolt beneath
the ashlip.
Figure 8.13 Lift up on the top of the Front, gently pulling out
on the bottom. Set aside in a safe location.
For BOTH Quartet and Solitaire Fronts:
INSTALLATION AND REMOVAL INSTRUCTIONS
FOR QUARTET AND SOLITAIRE FACE OPTIONS.
Figure 8.11
Solitaire Front
Quartet Front
Spacer
NOTE: The brick supplied with the Topaz is not an
optional accessory. The brick must be installed for safe
and proper operation.
F. Brick Installation
Figure 8.15 Install rear panel by placing it behind the log pins,
flush and centered against the back of the firebox.
NOTE: Rear panel and top panel/baffle are the same size.
Figure 8.14 The quartet door requires the use of a spacer for
installation. The spacer is shipped in place and should be
put back if removed.
