3 - 6 Dolphin® 9500/9550 Mobile Computer User’s Guide
Dolphin 9550
This section describes the back panel of the Dolphin 9550. It contains the same features as the Dolphin 9500 described in the
previous section with the additions of
• a pistol-grip handle to hold and maneuver the terminal with greater ease,
• a scanner/imager trigger on the handle that activates the scan, and
• rubber bumpers that enable the terminal to rest safely and securely when not in use.

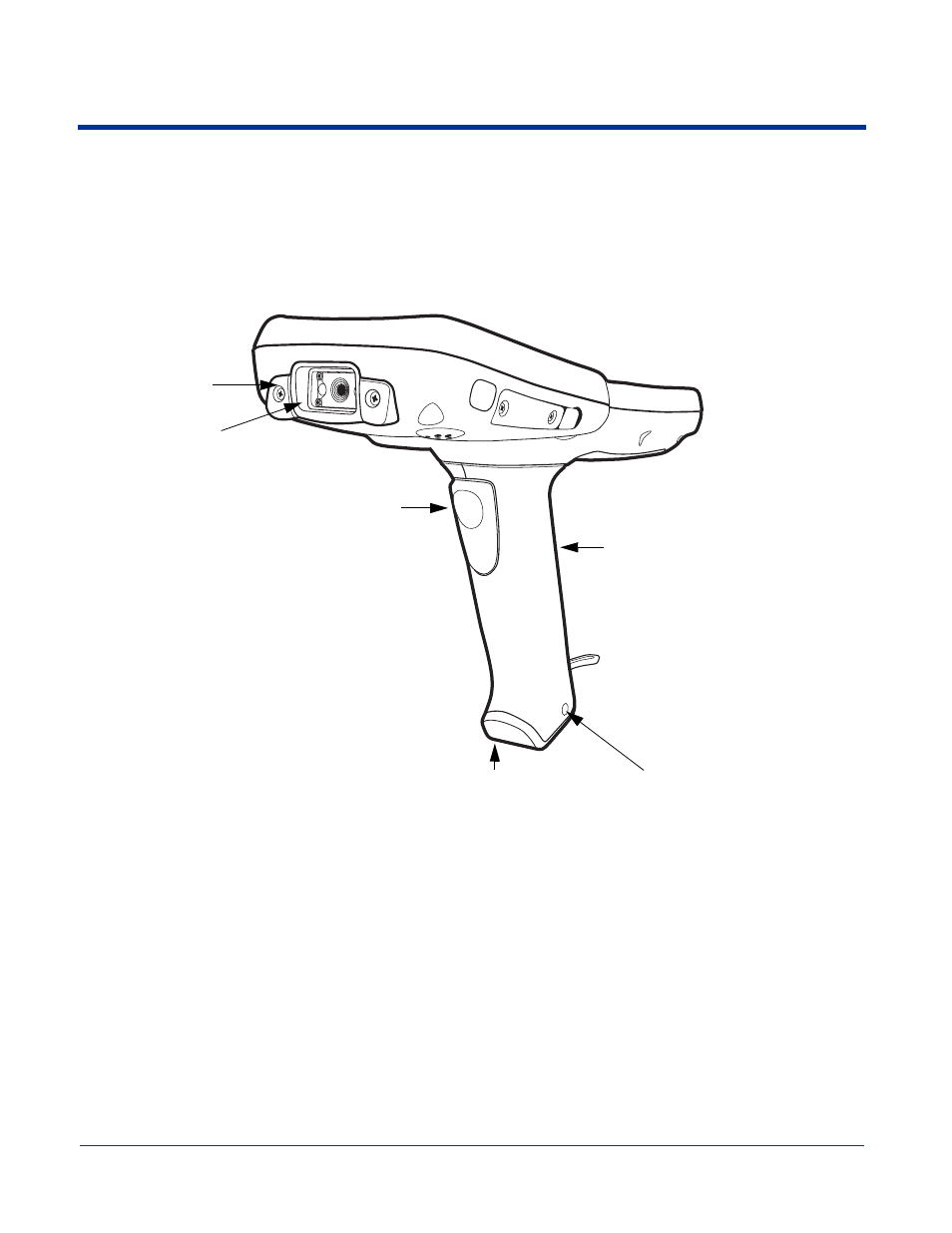

The following is a graphic of the 9550 back panel.
Rubber Bumpers
The rubber bumpers enable the Dolphin 9550 to rest in a nose-down position on a flat surface. See Rubber Bumpers
on page 3-7.
Image Engine Window
This is the front view of the window. For more information, see Image Engine Window on page 3-4.
Scan Trigger
The scan trigger provides comfortable scan activation.
Pistol Grip Handle
The comfortable, ergonomic handle is integrated into the back panel to enhance the terminals durability in rugged, real-
world settings; the handle cannot be removed from the terminal. Designed specifically for rapid, high-volume scanning,
the handle features rubber surface details to improve handle grip, comfort, and shock absorption.
Rubber
Bumpers
Pistol-Grip Handle
Scan Trigger
Rubber Bumper
Image Engine
Window
Wrist Lanyard Fastener
