Inserting and Removing Terminals
Inserting

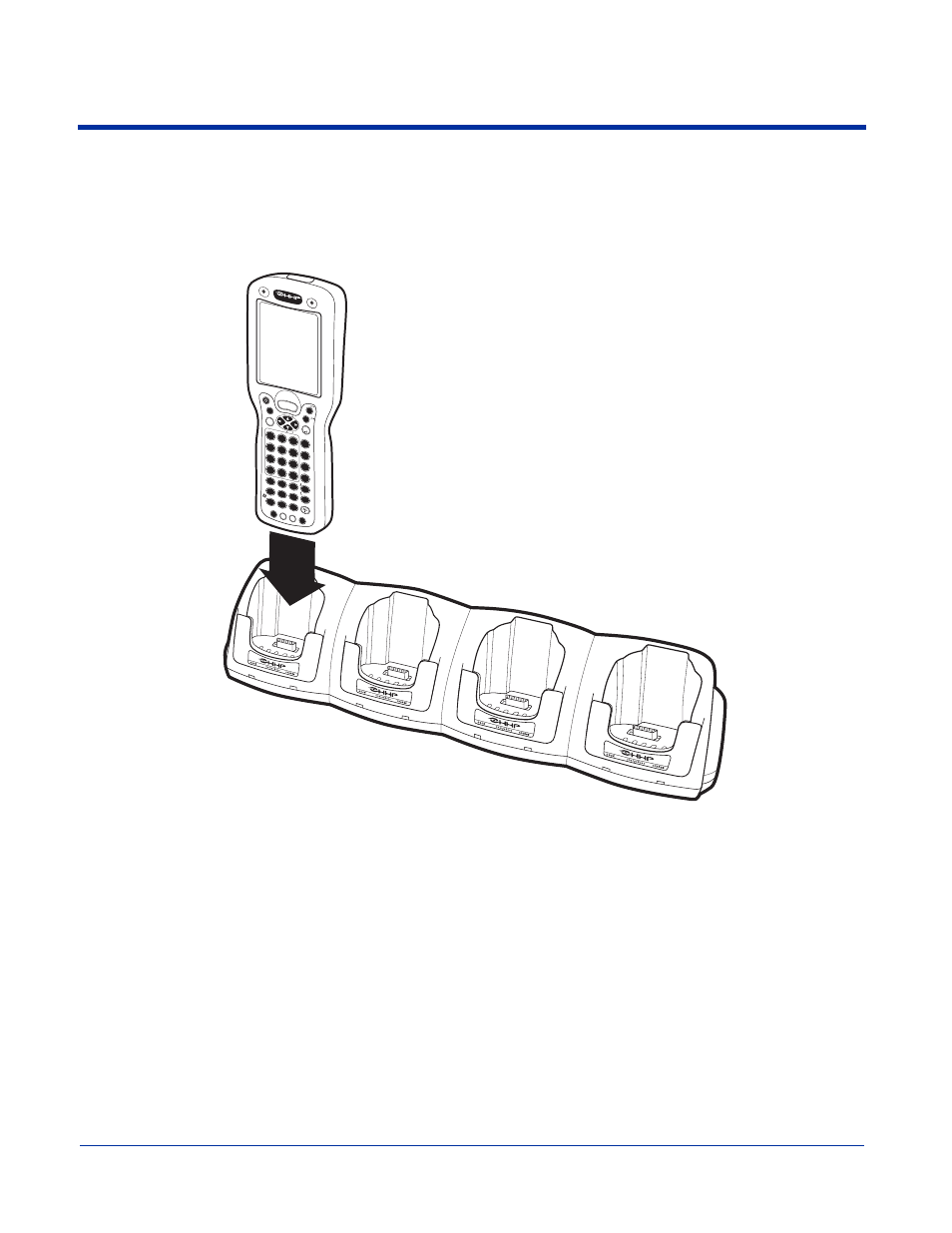

1. Hold the terminal with the bottom panel perpendicular to the base.
2. Slide the terminal into the well until the Dock LED lights solid green.
3. Charging begins immediately.
Removing
To remove a terminal, grasp it firmly in your hand and lift it up and out of the terminal well. The LEDs for the terminal well turns off.
