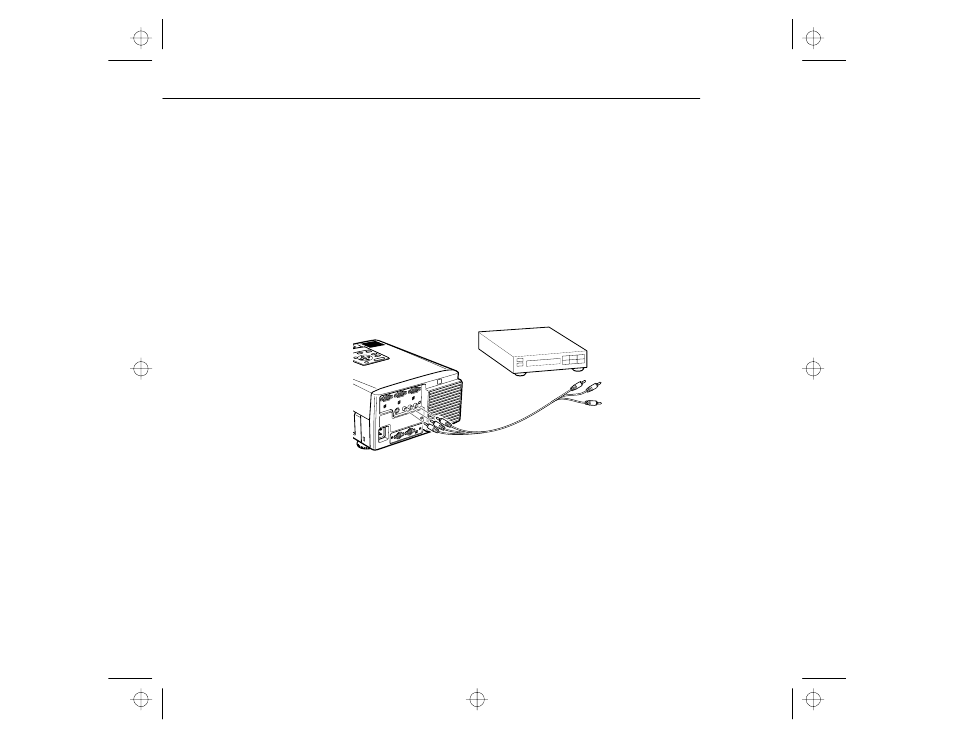

To connect a video source to the projector:
1. Turn off the projector and video source if they are on.
2. If your video source uses a small, round, one-prong composite
(RCA) video connector, you’ll need the audio/visual cable that
comes with the projector. If your video source uses a large, round,
four-prong S-Video connector, you will need to purchase an
S-Video cable.
3. For composite video, connect the yellow RCA plug on one end of
the audio/visual cable to the projector’s Video In jack. Connect
the other yellow RCA plug to the video-out jack of your video
source.
4. Connect the other plugs on the audio/visual cable to the Audio In
jacks of the projector: insert the white plug into the L Audio In
jack and the red plug into the R Audio In jack. Connect the plug
at the other end of the audio/visual cable to the audio output jacks
of the video source.
