Appendix

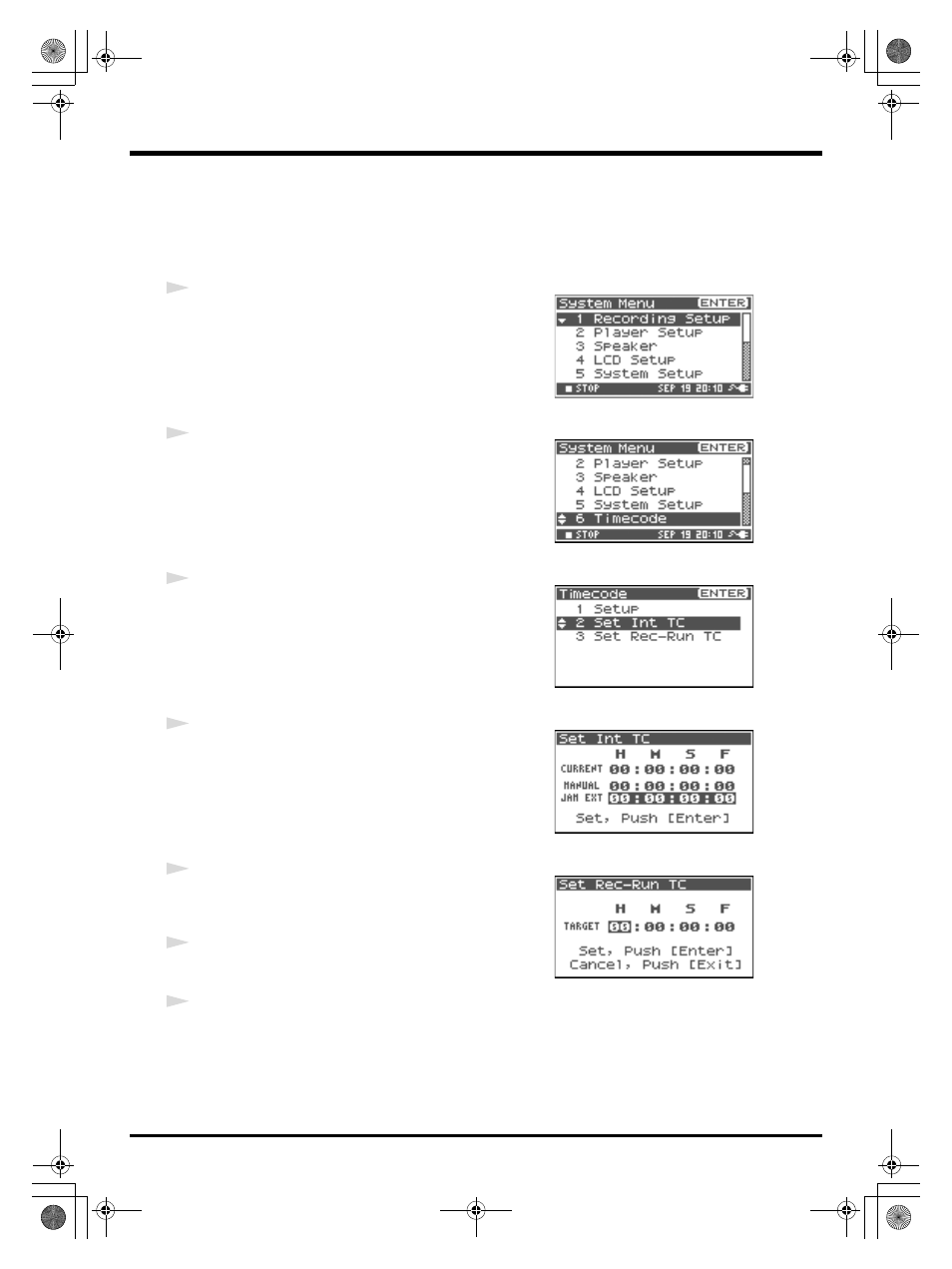

Synchronize to an external timecode source
* Be sure to connect the timecode In connector on the R-4 Pro to the Timecode Out port on the device used for
synchronization.
fig.recording-1.eps
1
Press the [SYSTEM] button on the R-4 Pro.
The display shows the System Menu screen.
fig.time-code-1.eps
2
Use the [CURSOR] button to select 6 Timecode , and
press the [ENTER] button .
The Timecode screen is shown.
fig.time-code-set-int.eps
3
Use the [CURSOR] button to select 2 Set Int TC , and
press the [ENTER] button.
The display shows the Set Int TC screen.
fig.time-code-set-ext.eps
4
Use the [CURSOR] button to select JAM EXT.
* To cancel the settings, press the [EXIT] button.
fig.time-code-6.eps
5
Press the [ENTER] button.
After the screen shown to the right is displayed, a value the same
as JAM EXT is shown as CURRENT, and the timecode begins.
6
After setting the value, press the [EXIT] button.
The display returns to the Timecode screen.
7
Return to the Main screen by pressing the [EXIT] button again.
