EN
3

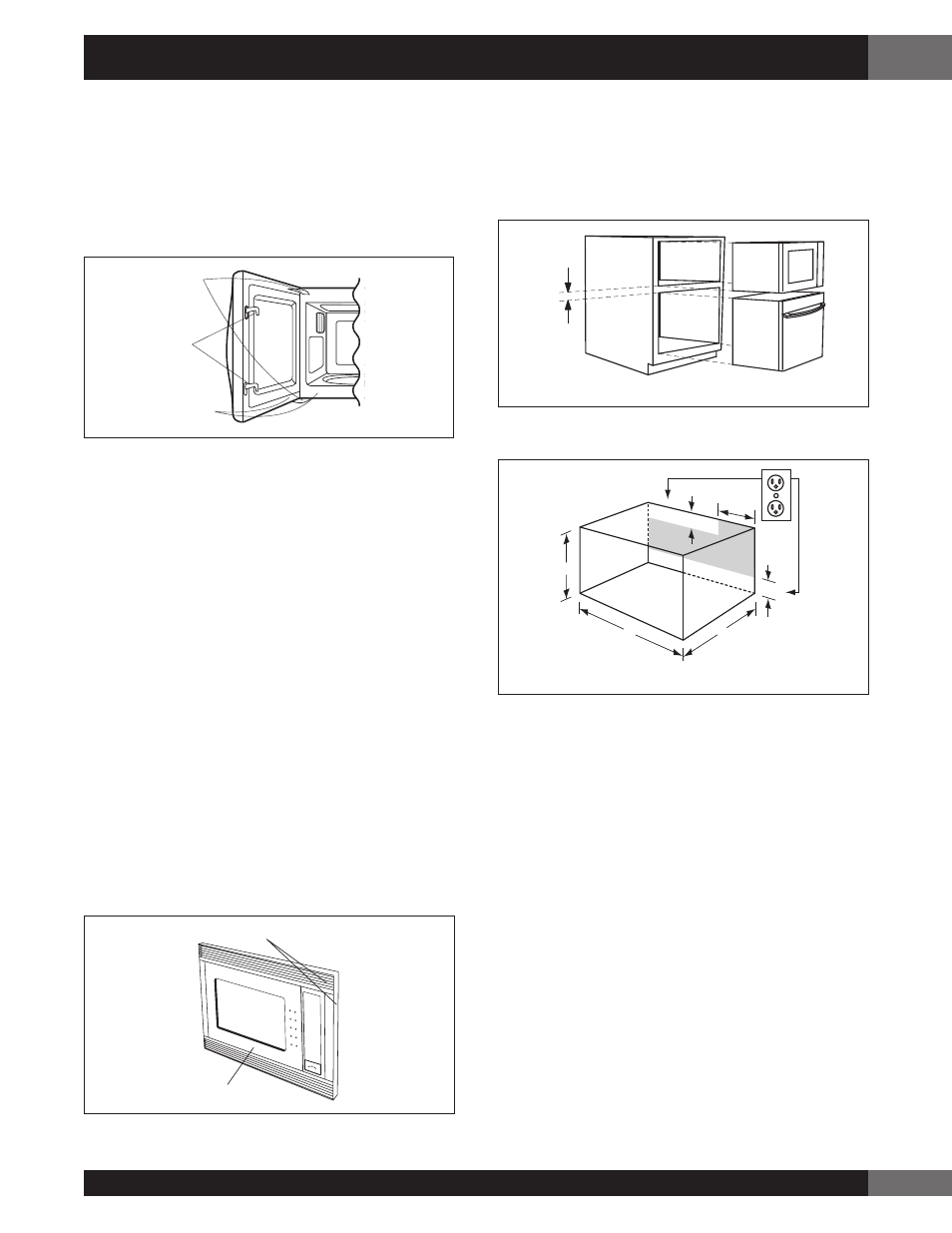

Unpacking and Examining Your Oven
Remove all packing materials from inside the oven cavity;
however, DO NOT REMOVE THE WAVEGUIDE COVER,
which is located on the right cavity wall. Read enclosures
and SAVE the Use and Care Manual.
Remove the feature sticker, if there is one, from the outside
of the door.
Hinges
Door seals
and sealing
surfaces
Safety
door
latches
Check the oven for any damage, such as misaligned or
bent door, damaged door seals and sealing surfaces,
broken or loose door hinges and latches and dents inside
the cavity or on the door. If there is any damage, do not
operate the oven and contact your dealer or Fulgor Milano
Authorized Servicer.
Choosing a Location for Your Oven on
the Counter
You will use the oven frequently so plan its location for ease
of use. It’s wise, if possible, to have counter space on at
least one side of the oven. Allow at least 2 inches (5 cm) on
the sides, top and at the rear of the oven for air circulation.
Choosing a Location for Your Oven if
Built-in
Your microwave oven can be built into a cabinet or wall
using a Fulgor Milano built-in kit.
Your microwave oven can be built into a cabinet or wall by
itself or above any electric wall oven or warming drawer
using Fulgor Milano’s built-in kit F4TK30MWO.
Your microwave oven cannot be built-in above any gas
wall oven.
Trim Kit Frame Assembly
Oven Front
See Figure 1 for proper location when building in above
an electric wall oven. Carefully follow both the wall oven
installation instructions and Fulgor Milano’s Built-in Kit
instructions. Be sure that the clearance of the floor between
the wall oven and the microwave oven is minimum of
2 inches (5 cm).
2"
Figure 1
The opening in the wall or cabinet must be within the
following dimensions:
C
4"
4"
6"
A
B
Figure 2
A HEIGHT : 16 3 ⁄
4
" to 17" (42.5 cm to 43.2 cm)
B WIDTH : 24 3⁄8" to 2411⁄16" (61.9 cm to 62.7 cm)
C DEPTH : minimum 20" (50.8 cm)
Outlet should NOT be in the shaded area as indicated
on Figure 2. If the dimension of DEPTH (C) is more than
21" (53.3 cm), the outlet location may be any area on
the rear wall.
The floor of the opening should be constructed of plywood
strong enough to support the weight of the oven and floor
load (about 100 pounds/45 kg). The floor should be level
for proper operation of the oven. Be sure to check the local
building code as it may require that the opening be enclosed
with sides, ceiling and rear partition. The proper functioning
of the oven does not require the enclosure.
The kit includes all the necessary parts and easy-to-follow
instructions for installation as well as location of the power
supply.
The ease of assembly for these kits will allow installation
into an existing wall opening in less than an hour if power
outlet is already properly located. All it takes are four steps
and a Phillips screwdriver.
2 - INSTALLATION INSTRUCTIONS
