APPENDIX A: EPIM SPECIFICATIONS
Page 30
BRIM-E6 USER’S GUIDE
Warning: Connecting a thin-net segment to earth ground at more than one
point could produce dangerous ground currents.
A.5
EPIM-A AND EPIM-X (AUI PORTS)
Connector Type:
DB-15 (15 position D type receptacle)
EPIM-A: Female Connector
EPIM-X: Male Connector

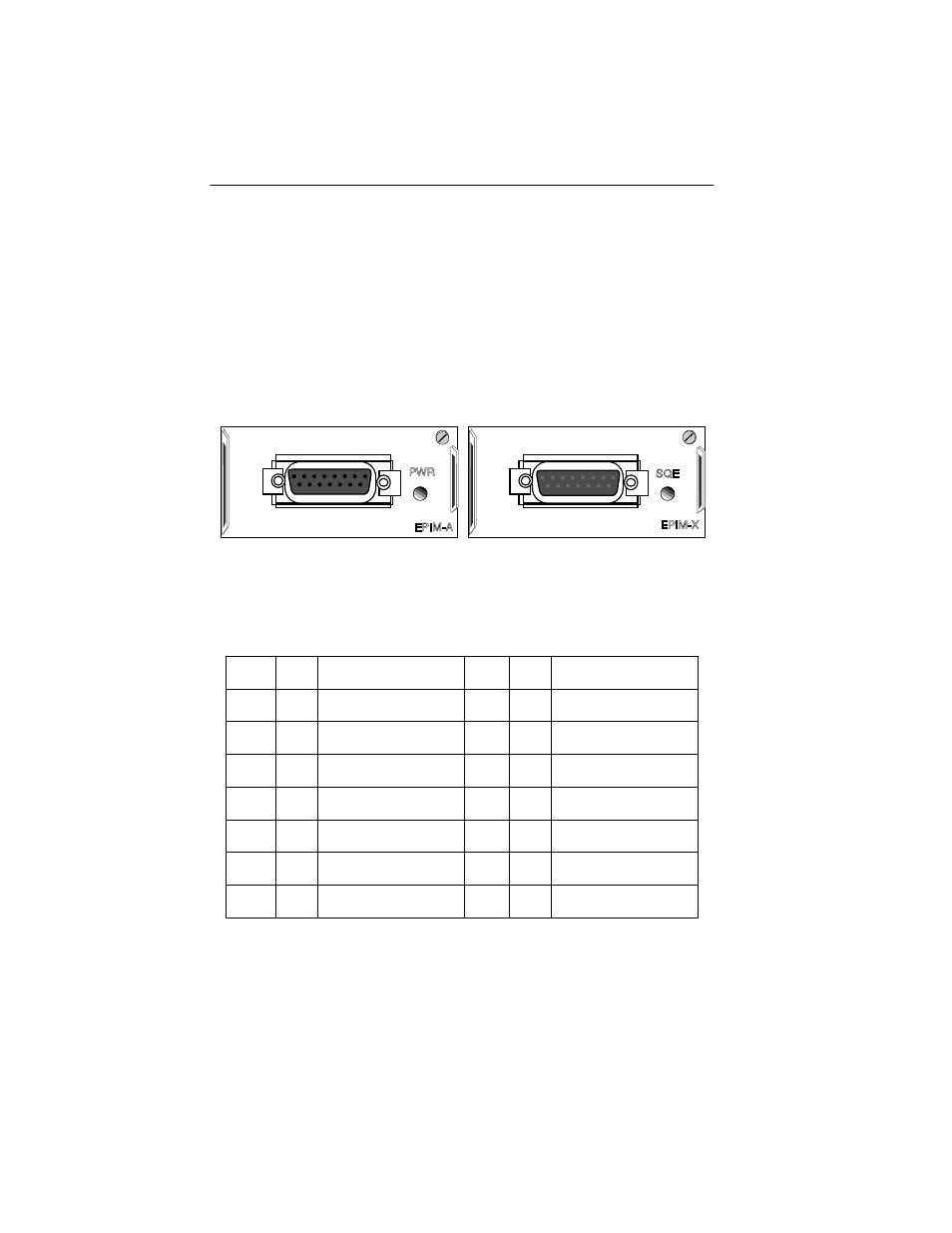

Figure A-5. EPIM-A and EPIM-X (AUI Port)
Connector Shell:
Protective Ground
Pin
1
Logic Ref.
Pin
9
Collision -
2
Collision +
10
Transmit -
3
Transmit +
11
Logic Ref.
4
Logic Ref.
12
Receive -
5
Receive +
13
Power (+12 Vdc)
6
Power Return
14
Logic Ref.
7
No Connection
15
No Connection
8
Logic Ref.
