INSTALLING BRIMs
BRIM-E6 USER’S GUIDE
Page 9
6.
Place your BRIM behind the MIM face plate. (See Figure 2-2.)

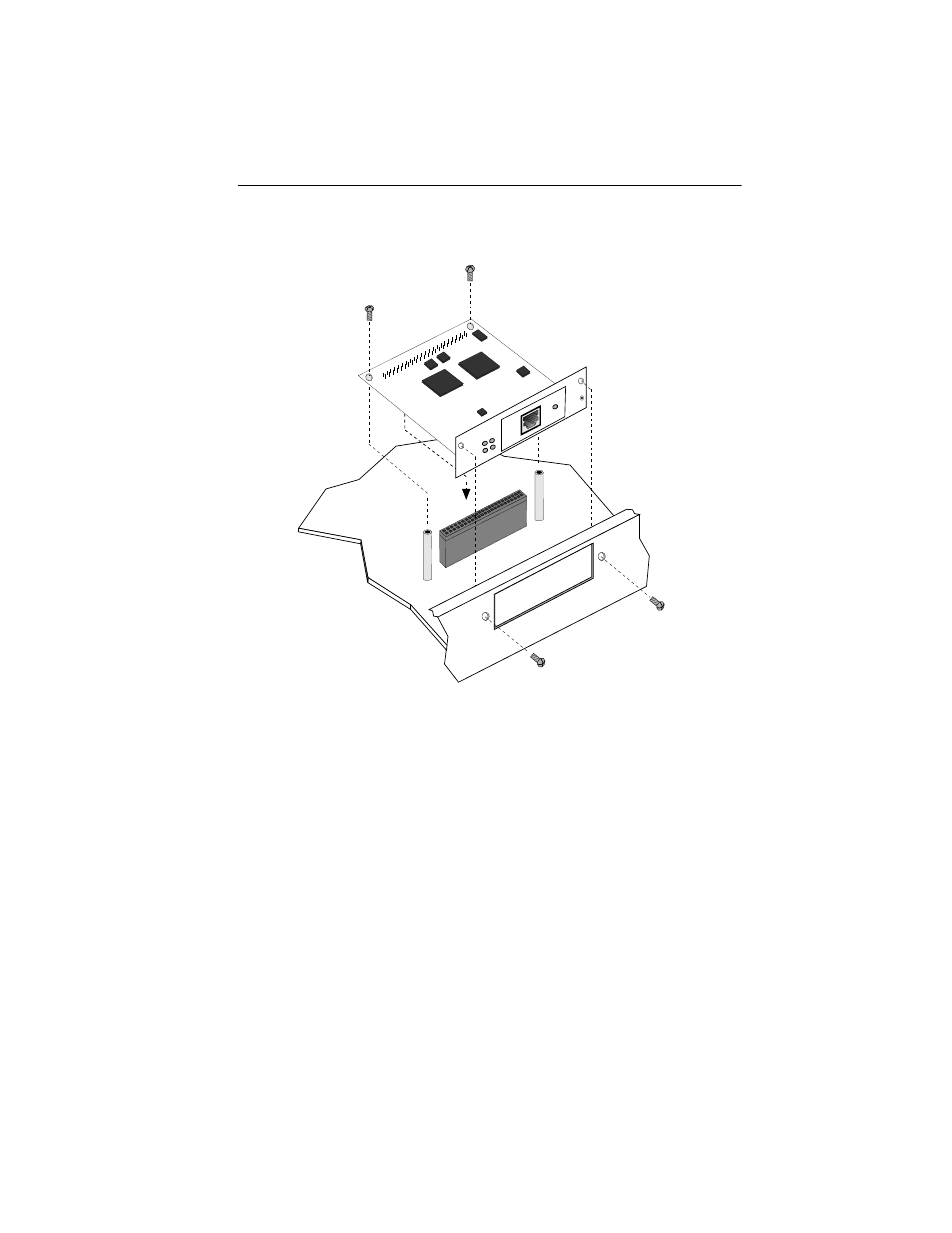

Figure 2-2. Installing the BRIM
7.
Insert the connector pins of the BRIM-E6 into the mother board
connector on the MIM.
8.
Press down firmly on the back of the BRIM until the pins slide all
the way into the connector holes.
Note:
The BRIM-E6 connector must fit securely on the mother board
connector.
9.
Reinstall the faceplate mounting screws, and install the support
post screws.
Note:
Faceplate and support post screws are provided both on the MIM
and in the BRIM package, for your convenience.
STB
CLN
BRIM-E6
XMT
RCV
EPIM-T
LNK
