CONNECTING THE BRIM TO THE NETWORK
BRIM-E6 USER’S GUIDE Page 19
3.1.4 Connecting an AUI Cable to an EPIM-A
Caution: Ensure that the external transceiver to which the BRIM-E6
will be connected does not have the signal quality error (SQE or
“heartbeat”) test function enabled. The BRIM-E6 will not operate if the
transceiver has the SQE test function enabled, and the network will be
unusable. Refer to the applicable transceiver manual.
To connect an EPIM-A to an external network segment:
1. Attach an external transceiver to the network segment that will be
connected to the AUI port. Refer to the applicable transceiver manual.
2. Attach an AUI cable, no longer than 50 meters in length, to the
transceiver connected to the network in step 1.
3. Connect the AUI cable to the AUI port located on the EPIM-A. See
Figure 3-4.
4. Lock the AUI connector into place using the connector slide latch.

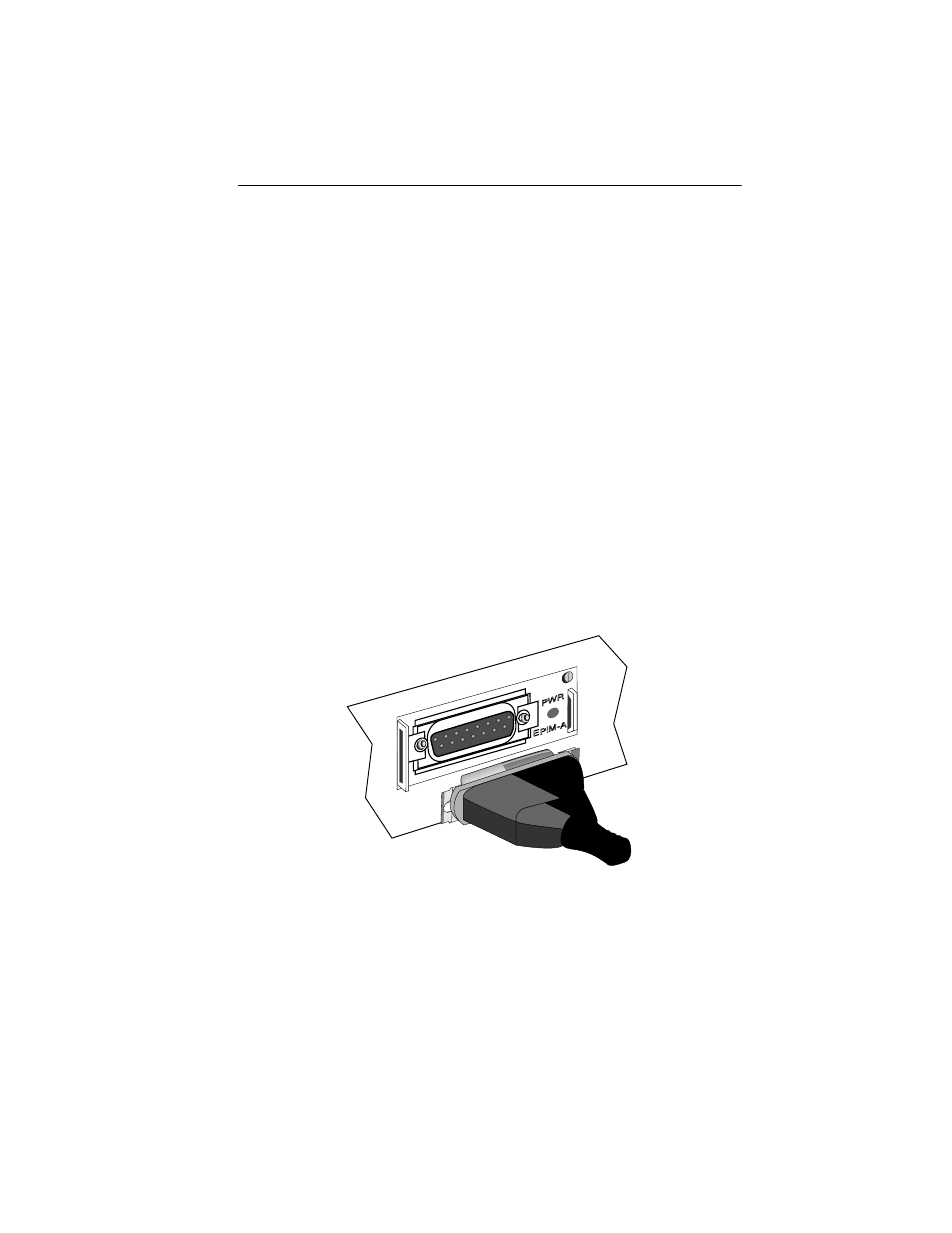

Figure 3-4. The EPIM-A
5. Check that the PWR LED on the EPIM-A is on. If the LED is not on,
contact Cabletron Systems Technical Support.
P W
R
E P I M - A
