APPENDIX A: EPIM SPECIFICATIONS
Page 26 BRIM-E6 USER’S GUIDE
A.2 EPIM-F1 AND EPIM-F2 (MULTIMODE FIBER OPTIC
PORTS)
Internal Transceiver: Cabletron Systems FOT-F™
Fiber Optic Transceiver
Connector Type:
EPIM-F1: SMA fiber optic ports
EPIM-F2: ST fiber optic ports

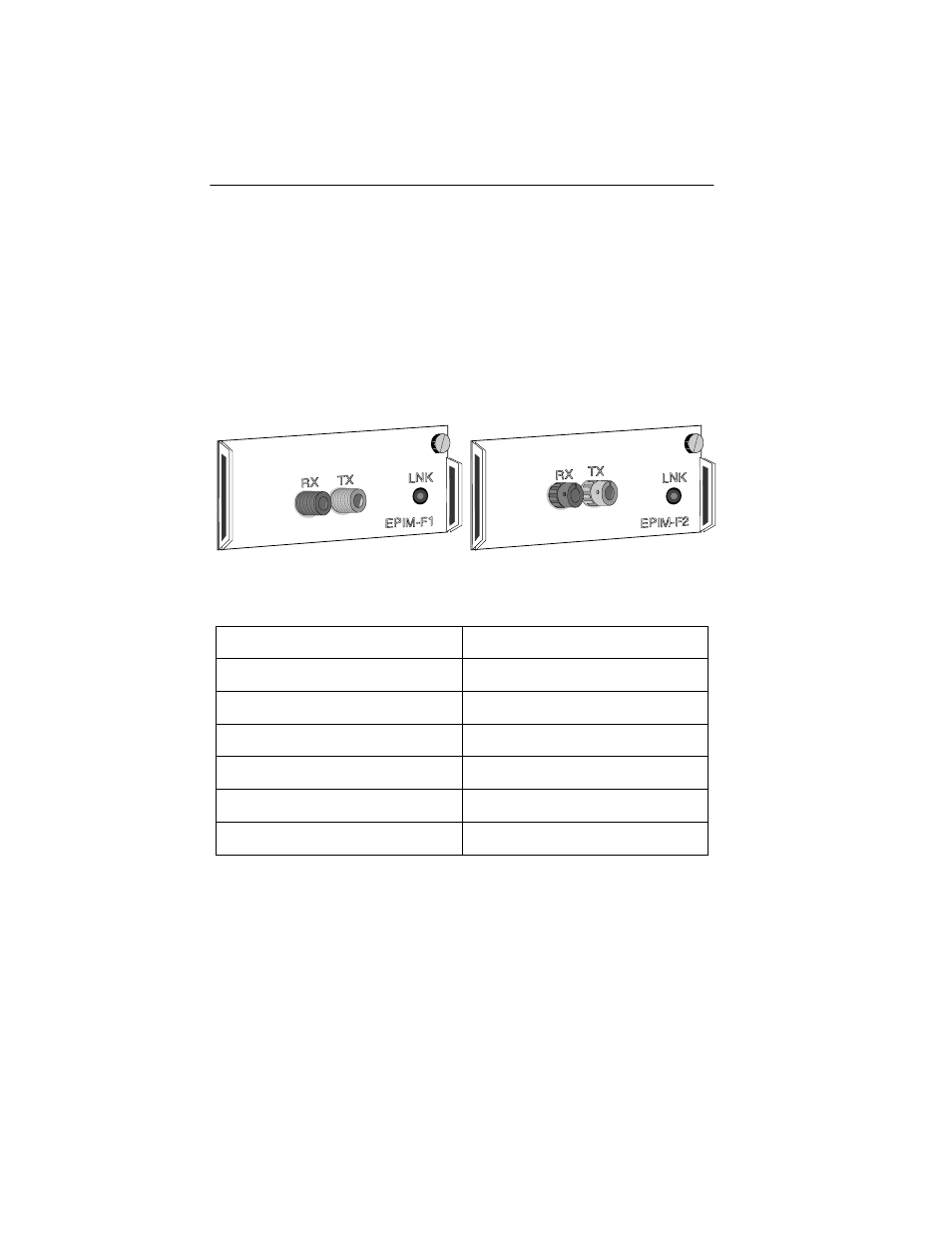

Figure A-2. EPIM-F1 and EPIM-F2
Note: The above transmitter power and receive sensitivity levels represent
Peak Power Levels after optical overshoot. You must use a Peak Power
Meter to correctly compare the above values to those you measure on any
particular port. If you measure Power Levels with an Average Power
Meter, you must subtract 3 dBm from the measurement to correctly
compare measured values to the above values
Receive Sensitivity: -29.5 dBm
Maximum Receive Power: -8.2 dBm
Transmitter Power Into –
50/125
µ
m fiber: -13.0 dBm
62.5/125
µ
m fiber: -10.0 dBm
100/140
µ
m fiber: -7.0 dBm
Bit Error Rate: Better than 10 -10
