b. Pivot the tab

of the metal adapter upward. Then, push the adapter as shown until the four tabs on

the adapter are slide into the notches

. Pivot the adapter as shown to remove it with the storage

drive from the converter.

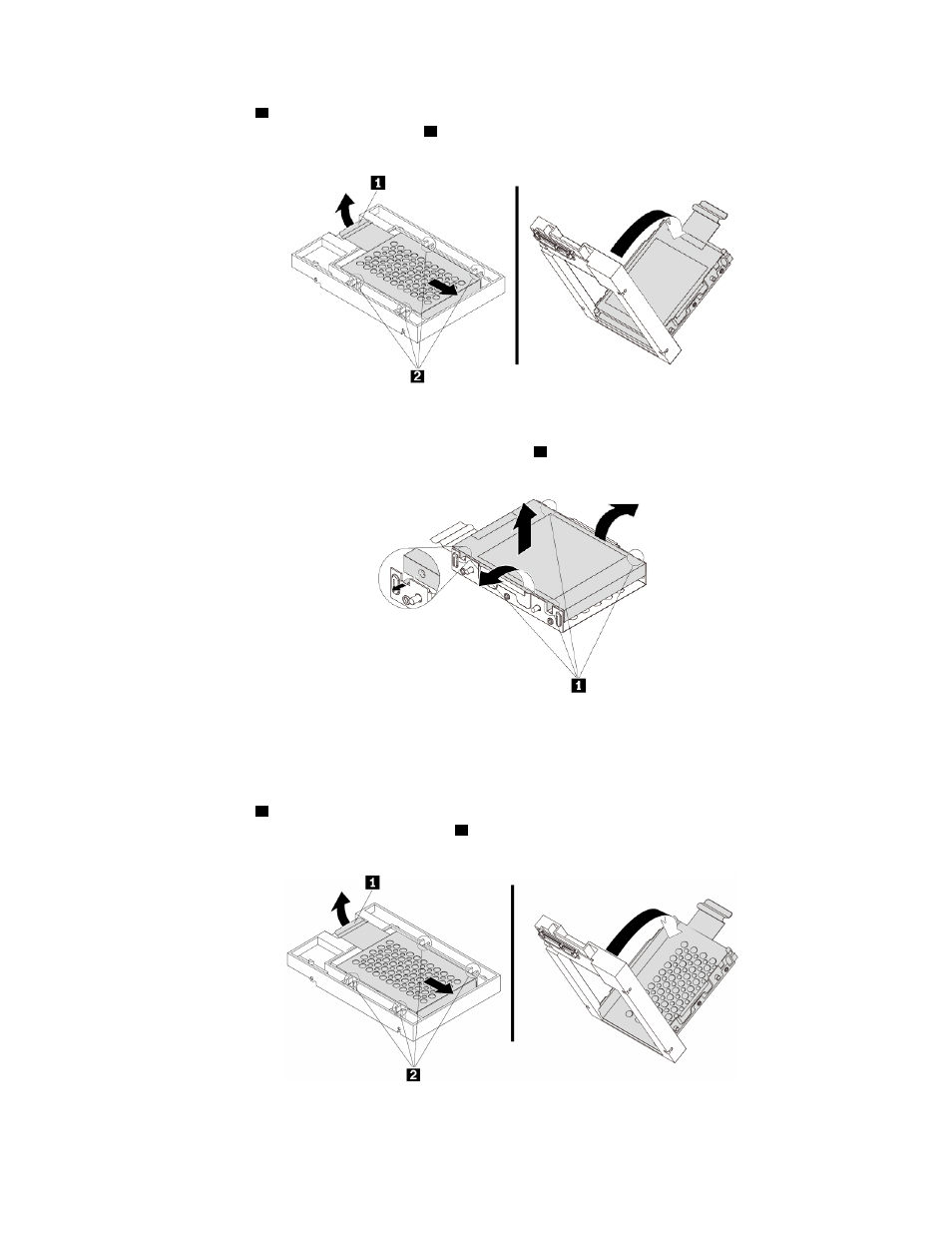

Figure 52. Removing the adapter from the converter

c. Flex both sides of the adapter to release the four pins

from the storage drive. Then, remove the

storage drive from the adapter.

Figure 53. Removing the storage drive from the adapter

5. To install a 2.5-inch storage drive with the converter, do the following:

a. Flex both sides of the bracket to remove the converter from the bracket.

b. Pivot the tab

of the metal adapter upward. Then, push the adapter as shown until the four tabs on

the adapter are slide into the four notches

. Pivot the adapter as shown to remove it from the

converter.

Figure 54. Removing the adapter from the converter
