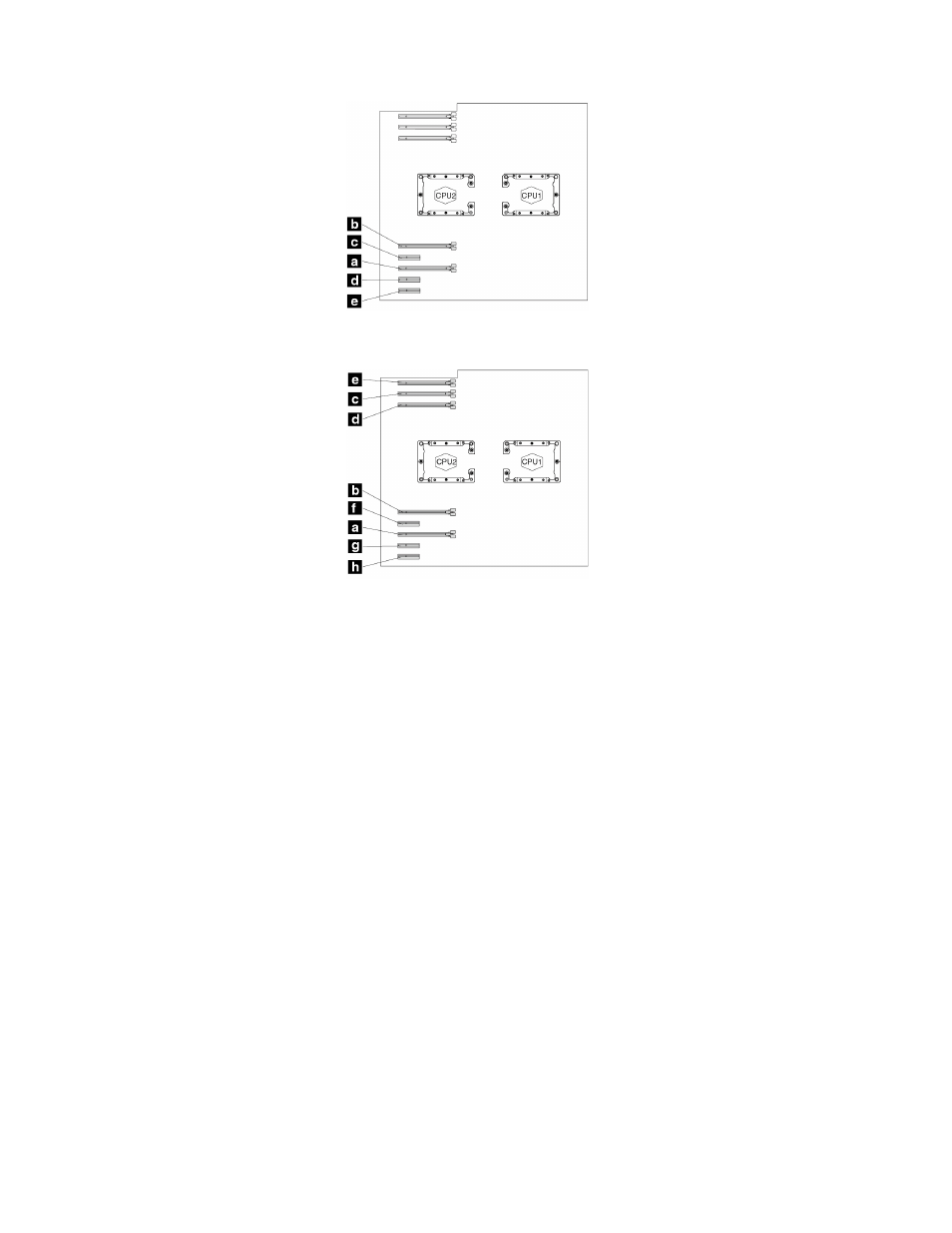

Figure 107. PCIe card installation order for computers with one microprocessor
Figure 108. PCIe card installation order for computers with two microprocessors
To remove or install a full-length PCIe card, do the following:
1. Prepare your computer. See “Preparing your computer and removing the computer cover” on page 59.
2. Lay the computer on its side for easier access to the PCIe card slots.
3. Locate the PCIe card slot. See “Parts on the system board” on page 8.
4. If necessary, remove the direct cooling air baffle for easier operation. See “Direct cooling air baffle” on
page 63.
5. To remove a full-length PCIe card, do the following:
