Page 137

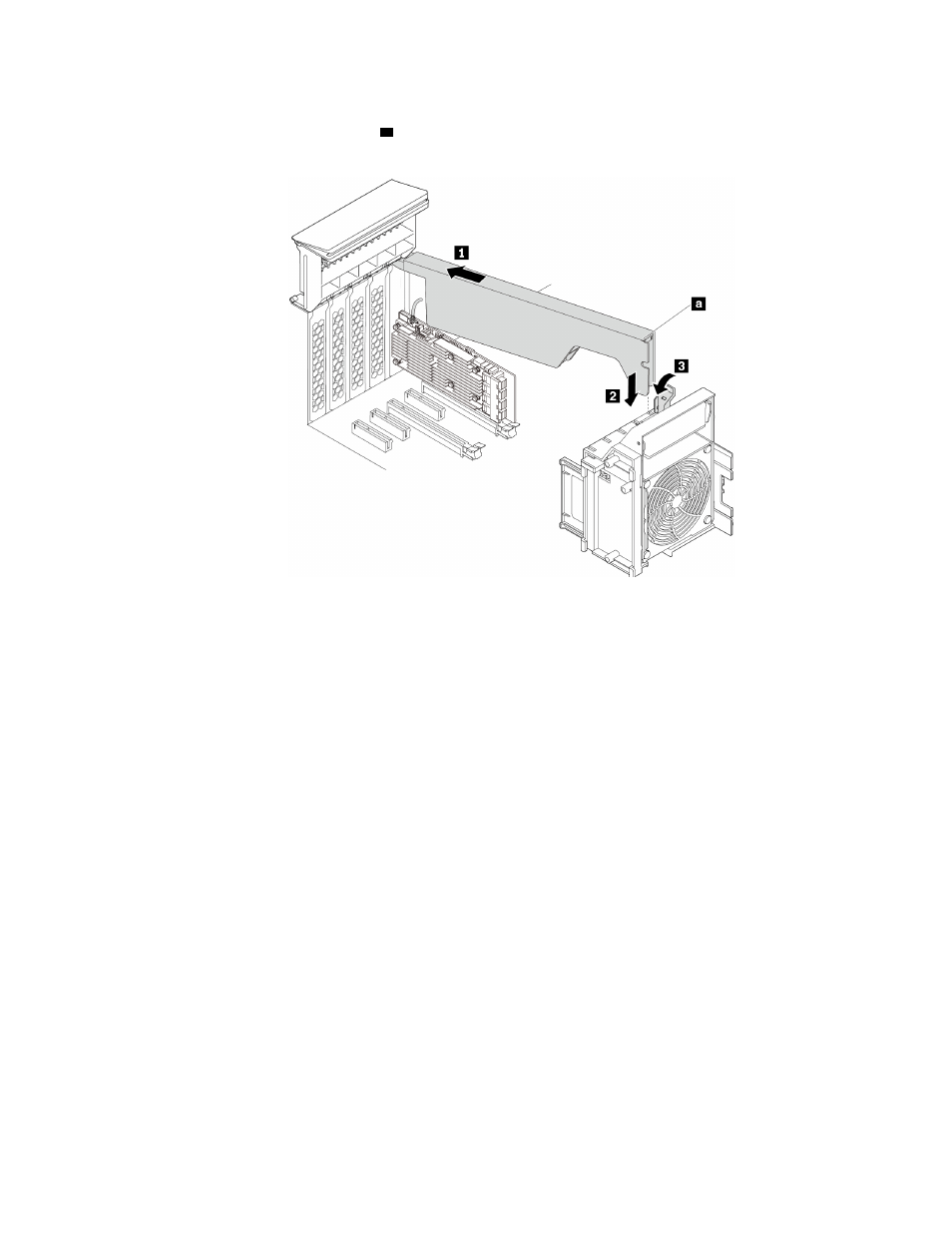

d. Insert the corresponding end of the holder into the gaps in the PCIe card latch as shown. Pivot the
holder downward to insert part
a
into the corresponding slot in the multi-function bracket. Then,
pivot the tab on the multi-function bracket to secure the holder.
Figure 118. Installing the super capacitor module
7. Reinstall the direct cooling air baffle if you have removed it. See “Direct cooling air baffle” on page 63.
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the installation or replacement, go to “Completing the parts replacement” on page 135.
Multi-function brackets
Attention:
Do not open your computer or attempt any repair before reading and understanding the “Read
this first: Important safety information” on page iii.
Your computer is installed with two multi-function brackets. The brackets are used to secure the front fan
assembly, super capacitor module, PCIe card retainer, and full-length PCIe cards. The bracket installed in
the upper position of the chassis also can be used to secure the M.2 solid-state drive holder and power
supply assembly.
Multi-function bracket in the upper position
To remove and reinstall the multi-function bracket installed in the upper position of the chassis, do the
following:
1. Prepare your computer. See “Preparing your computer and removing the computer cover” on page 59.
2. Locate the multi-function bracket in the upper position of the chassis. See “Computer components” on
3. To access the multi-function bracket, remove the following parts:
• “Direct cooling air baffle” on page 63 (if necessary)
Hardware removal and installation
125
