Lenovo ThinkStation P920 Tower Workstation - Manual (Page 116)

3. Pivot the handle 1 at an angle of about 90 degrees as shown. Then, pull the handle as shown to remove
the power supply assembly from the chassis.

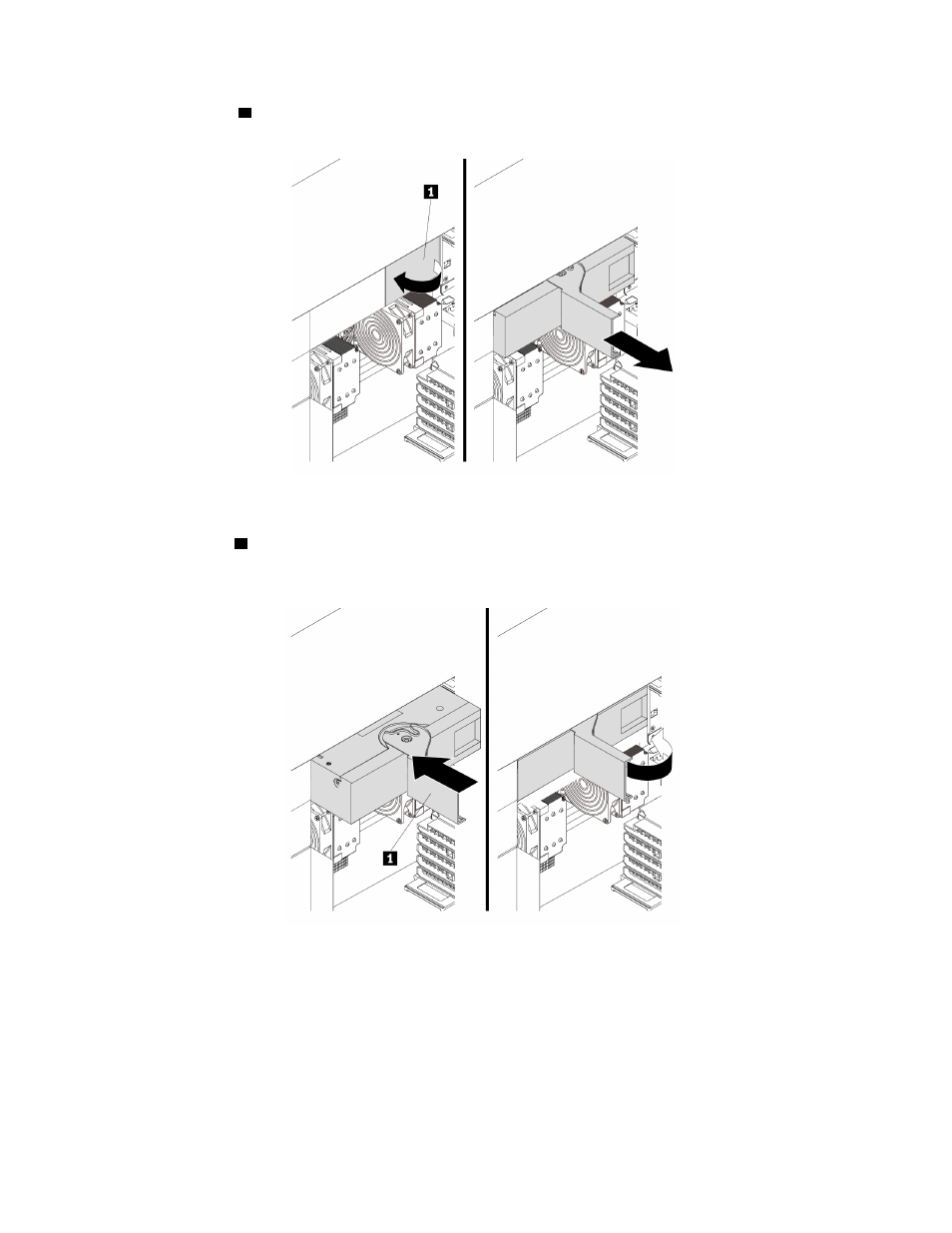

Figure 87. Removing the power supply assembly
4. With the handle 1 open, slide the power supply assembly into the power supply assembly bay until it
snaps into position. Pivot the handle to the closed position to ensure that the new power supply
assembly is fully installed into position.
Figure 88. Installing the power supply assembly
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the installation or replacement, go to “Completing the parts replacement” on page 135.
104 P920 User Guide
