Lenovo ThinkStation P920 Tower Workstation User Manual
Page 110
a. Align the notch
1
on the M.2 solid-state drive with the slot key
2
in the M.2 solid-state drive slot.
Then, slide the holder against the multi-function bracket and press the holder downward until the M.2
solid-state drive is securely seated.
Note:
Do not touch the circuit board of the M.2 solid-state drive.

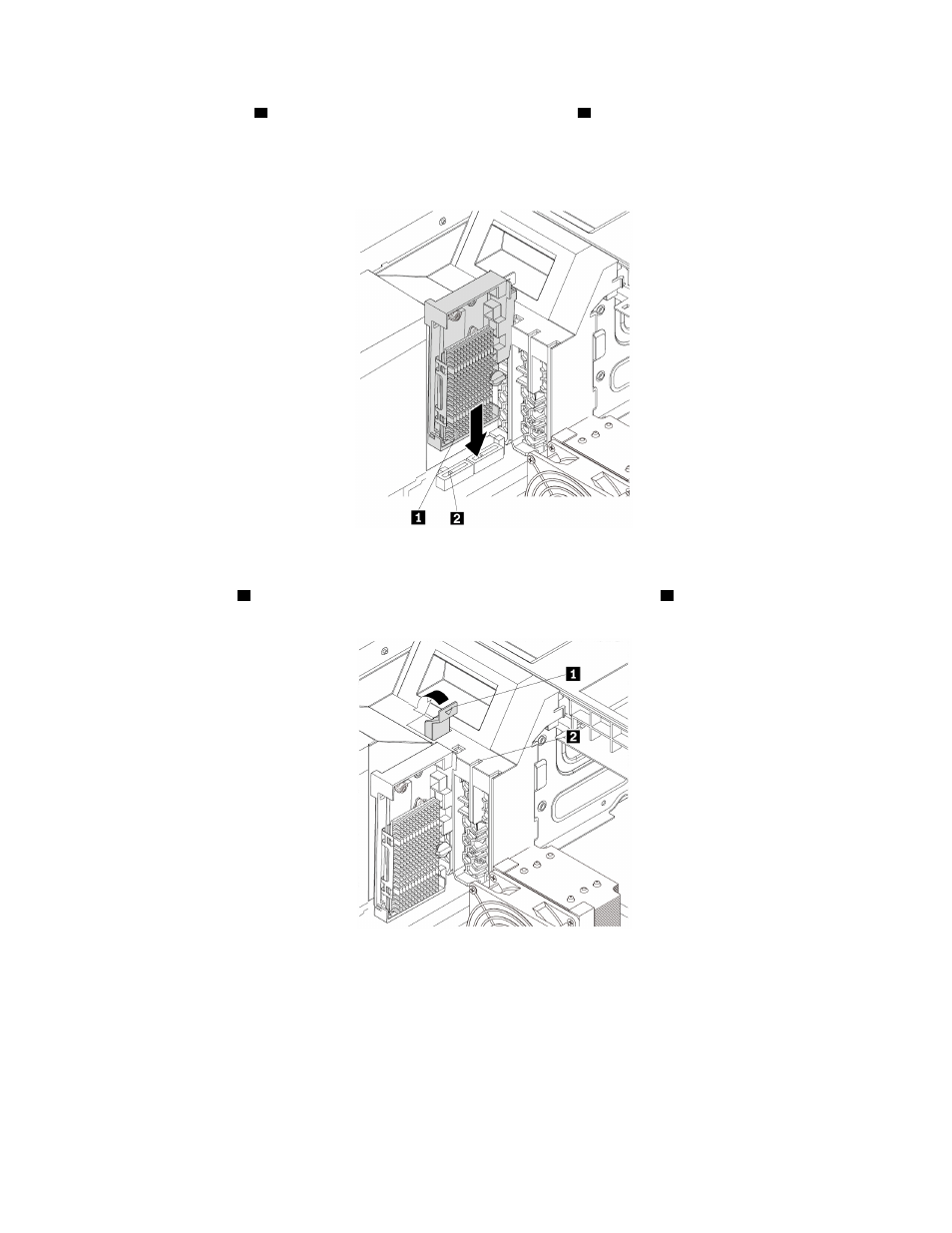

Figure 76. Installing the M.2 solid-state drive holder
b. Pivot the tab
1
downward until it snaps into position. Ensure that the latch
2
inside the multi-
function bracket is closed.
Figure 77. Closing the card latch
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the installation or replacement, go to “Completing the parts replacement” on page 135.
