c. Slide the new 3.5-inch storage drive with bracket into the kit from the rear until the drive snaps into
position.

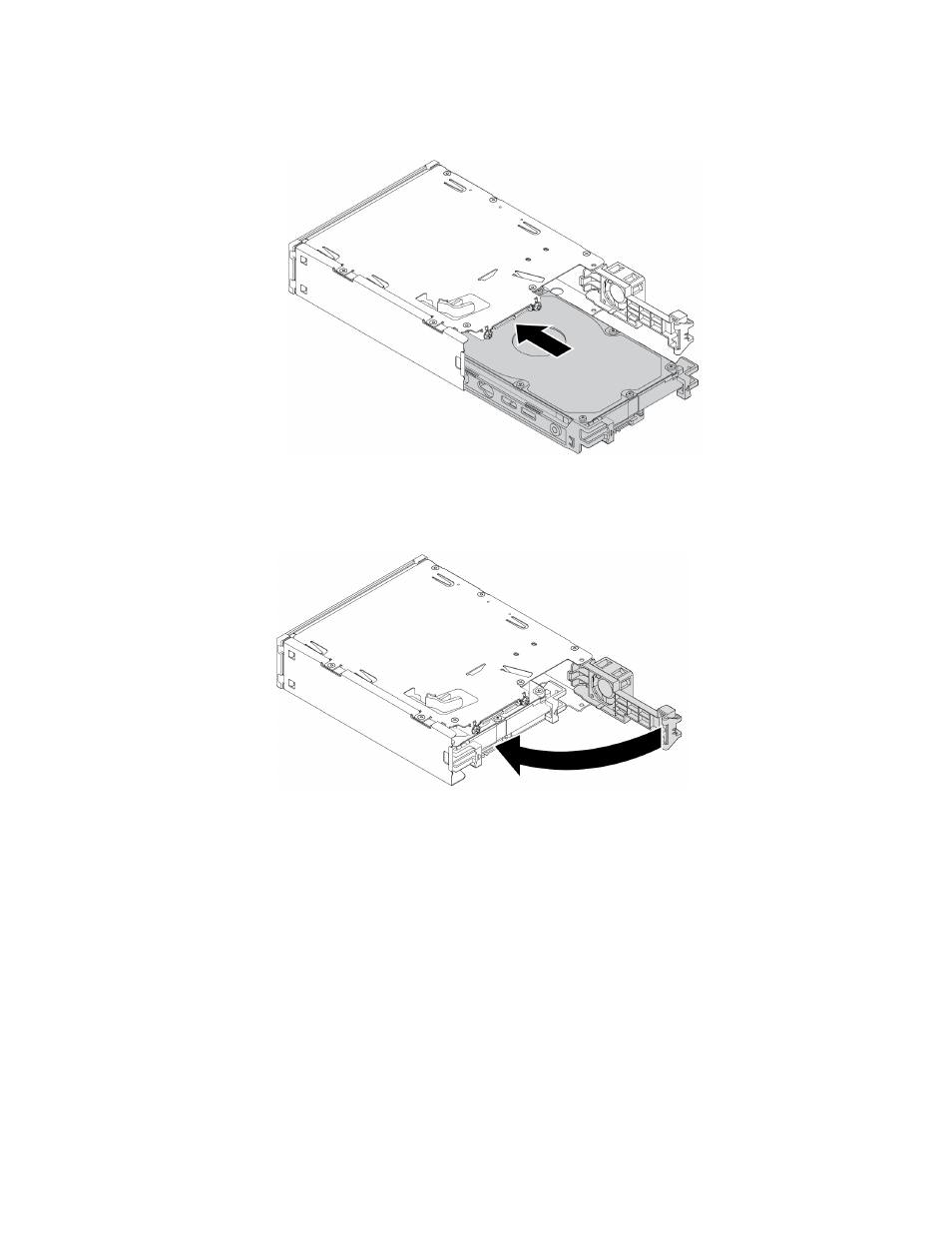

Figure 31. Installing the new 3.5-inch storage drive with bracket into the kit
8. Pivot the rear cover of the kit inward until you hear a click. Ensure that the rear cover is secured in place.
Figure 32. Pivoting the rear cover inward
9. Slide the kit into the flex bay and reconnect the cables.
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the installation or replacement, go to “Completing the parts replacement” on page 135.
2.5-inch storage drive
To remove or install a 2.5-inch storage drive, do the following:
1. Prepare your computer. See “Preparing your computer and removing the computer cover” on page 59.
2. Ensure that all the cables are disconnected from the kit. Remove the kit from the front of the computer.
See “Device in a flex bay” on page 65.
74 P920 User Guide
